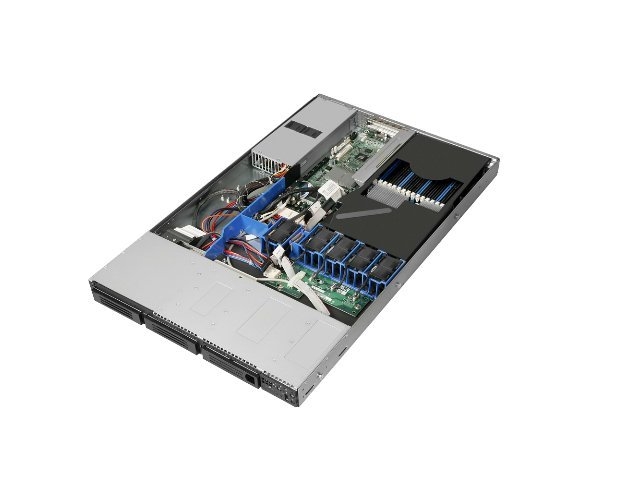

Printers & POSIntel Server System SR1560SF - rack-mountable - no CPU - 0 GB - no HDD
SKU SR1560SF
| Product Description: | Intel Server System SR1560SF - rack-mountable - no CPU - 0 GB - no HDD |
| Type: | Server - rack-mountable |
| Height (Rack Units): | 1U |
| Server Scalability: | 2-way |
| Processor: | No CPU |
| Processor Socket: | LGA771 Socket |
| RAM: | 0 GB (installed) / 64 GB (max) - DDR2 SDRAM |
- Specifications
- Description
| General | |
| Type: | Server |
| Product Form Factor: | Rack-mountable - 1U |
| Server Scalability: | 2-way |
| Internal Bays Qty: | 2 |
| Front Accessible Bays Qty: | 1 |
| Processor / Chipset | |
| CPU: | No CPU |
| Max CPU Qty: | 2 |
| CPU Upgradability: | Upgradable |
| CPU Socket: | LGA771 Socket |
| Chipset Type: | Intel 5400 |
| Front Side Bus: | 1600 MHz |
| RAM | |
| Installed Size: | 0 GB / 64 GB (max) |
| Technology: | DDR2 SDRAM |
| Form Factor: | FB-DIMM 240-pin |
| Slots: | 16 (Total) / 16 (empty) |
| Features: | Fully Buffered |
| Hard Drive | |
| Type: | No HDD |
| Storage Controller | |
| Type: | 1 x SATA - integrated |
| Controller Interface Type: | SATA 3Gb/s |
| RAID Level: | RAID 0, RAID 1, RAID 10 |
| Storage Controller (2nd) | |
| Type: | 1 x IDE - integrated |
| Controller Interface Type: | ATA-100 |
| Optical Storage | |
| Type: | No optical drive |
| Monitor | |
| Monitor Type: | None. |
| Graphics Controller | |
| Type: | Integrated |
| Graphics Processor: | ATI ES1000 |
| Video Memory: | 32 MB DDR SDRAM |
| Video Interfaces: | VGA |
| Networking | |
| Ethernet Ports: | 2 x Gigabit Ethernet |
| Ethernet Controller: | Intel 82563EB |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Expansion / Connectivity | |
| Bays: | 2 (total) / 2 (free) x internal 3.5" x 1/3H ¦ 1 (total) / 1 (free) x external 5.25" Slim Line |
| Slots: | 2 (total) / 2 (free) x CPU ¦ 16 (total) / 16 (free) x FB-DIMM 240-pin ¦ 1 (total) / 1 (free) x PCIe 2.0 x16 |
| Interfaces: | 2 x LAN (Gigabit Ethernet) ¦ 3 x USB 2.0 (1 in front) ¦ 1 x VGA ¦ 1 x PS/2 keyboard ¦ 1 x PS/2 mouse ¦ 1 x serial |
| Power | |
| Device Type: | Power supply |
| Installed Qty: | 1 |
| Power Provided: | 600 Watt |
| Dimensions & Weight | |
| Width: | 43 cm |
| Depth: | 69.2 cm |
| Height: | 4.3 cm |
| Environmental Parameters | |
| Min Operating Temperature: | 10 °C |
| Max Operating Temperature: | 35 °C |
The Intel Server Systems SR1560SF represents Intel's latest generation of rack-optimized server solutions. This system delivers a large memory footprint, fast system bus, and high I/O bandwidth - critical features for high performance computing applications as well as datacenters and general purpose enterprise-class computing needs.
- Significantly increased server performance without an increase in power consumption
- Enables dedicated data flow to each processor, maximizing system performance
- Increases capacity and memory bandwidth to keep pace with the processor and I/O performance enhancements
- Extends the amount of available server memory
- A platform innovation that helps get network data to and from server applications faster, while consuming far fewer CPU cycles
- Turns a physical server into multiple systems (virtual machines) allowing multiple operating systems and applications to run inside a single platform
- Reduces exposure to viruses and prevents harmful software from executing on the server or network
The technical details come from 3rd party. edgemo is not responsible for any errors.
