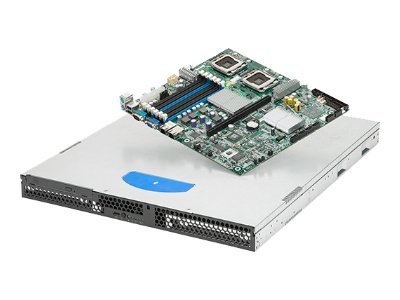

Intel Server System SR1530HCLSR - rack-mountable - no CPU - 0 GB - no HDD
SKU SR1530HCLSR
Product Description: | Intel Server System SR1530HCLSR - rack-mountable - no CPU - 0 GB - no HDD |
Type: | Server - rack-mountable |
Height (Rack Units): | 1U |
Server Scalability: | 2-way |
Processor: | No CPU |
Processor Socket: | LGA771 Socket |
RAM: | 0 GB (installed) / 12 GB (max) - DDR2 SDRAM - ECC |
- Specifications
- Description
General | |
Type: | Server |
Product Form Factor: | Rack-mountable - 1U |
Server Scalability: | 2-way |
Front Accessible Bays Qty: | 1 |
Hot-Swap Bays Qty: | 3 |
Processor / Chipset | |
CPU: | No CPU |
Max CPU Qty: | 2 |
CPU Upgradability: | Upgradable |
CPU Socket: | LGA771 Socket |
Chipset Type: | Intel 5000V |
Front Side Bus: | 1333 MHz |
RAM | |
Installed Size: | 0 GB / 12 GB (max) |
Technology: | DDR2 SDRAM - ECC |
Form Factor: | FB-DIMM 240-pin |
Slots: | 6 (Total) / 6 (empty) |
Features: | Dual channel memory architecture, Memory Mirroring, Fully Buffered |
Upgrade Rule: | 2 modules at a time |
Hard Drive | |
Type: | No HDD |
Storage Controller | |
Type: | 1 x SAS - integrated |
Controller Interface Type: | SAS |
Channel Qty: | 4 |
RAID Level: | RAID 0, RAID 1, RAID 10 |
Storage Controller (2nd) | |
Type: | 1 x IDE - integrated |
Controller Interface Type: | ATA-100 |
Optical Storage | |
Type: | No optical drive |
Monitor | |
Monitor Type: | None. |
Graphics Controller | |
Type: | Integrated |
Graphics Processor: | ATI ES1000 |
Video Memory: | 16 MB DDR SDRAM |
Video Interfaces: | VGA |
Networking | |
Type: | Integrated |
Ethernet Ports: | 2 x Gigabit Ethernet |
Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
Remote Management Protocol: | IPMI 2.0 |
Expansion / Connectivity | |
Bays: | 3 (total) / 3 (free) x hot-swap 3.5" ¦ 1 (total) / 1 (free) x external 5.25" Slim Line |
Slots: | 2 (total) / 2 (free) x CPU ¦ 6 (total) / 6 (free) x FB-DIMM 240-pin ¦ 1 (total) / 1 (free) x PCIe x8 - low-profile ¦ 1 (total) / 1 (free) x PCI-X / 133 MHz - full-height ¦ 1 (total) / 0 (free) x Intel Adaptive Slot |
Interfaces: | 2 x LAN (Gigabit Ethernet) ¦ 1 x PS/2 keyboard ¦ 1 x PS/2 mouse ¦ 1 x VGA ¦ 2 x USB 2.0 ¦ 1 x serial |
Miscellaneous | |
Cables Included: | Serial ATA cable (2 pcs.) ¦ IDE cable |
Power | |
Device Type: | Power supply |
Installed Qty: | 1 |
Power Provided: | 400 Watt |
Power Factor Correction: | Yes |
Operating System / Software | |
OS Certified: | Microsoft Windows 2000 Advanced Server, SUSE Linux Enterprise Server, Microsoft Windows Server 2003 Enterprise Edition, Novell NetWare 6.5, Red Hat Enterprise Linux 4 |
Dimensions & Weight | |
Width: | 43 cm |
Depth: | 50.8 cm |
Height: | 4.3 cm |
Environmental Parameters | |
Min Operating Temperature: | 10 °C |
Max Operating Temperature: | 35 °C |
Humidity Range Operating: | 0 - 95% |
This is Intel's latest generation of enterprise-level, rack optimized value system level solutions where processing power, reliable memory infrastructure, and redundant networking are required elements for entry level server infrastructures. With flexible storage solutions supporting up to two 3.5" SATA drives, as well as support optional DVD or CD drives, this integrated system is ideal for space-constrained environments such as web farms, clusters and appliance designs that can take advantage of this unique shorter chassis length.
- 400-watt, non-redundant PFC
- One system fan and 2 CPU fans
- 2 x 3.5" fixed SATA drives
- One riser card supporting 2 PCI slots
- Intel Server Board S5000VCL
The technical details come from 3rd party. edgemo is not responsible for any errors.
