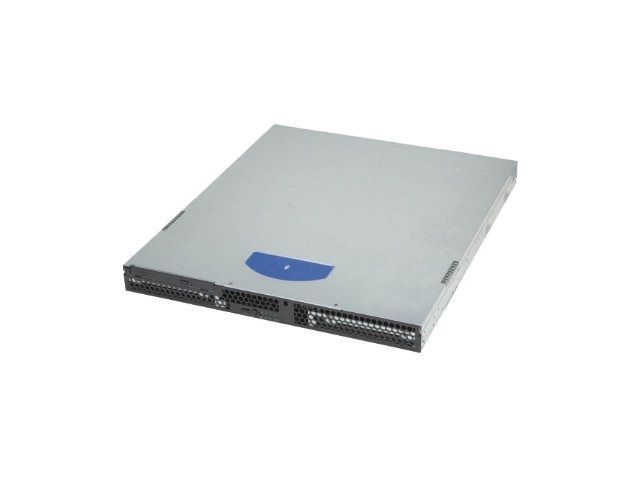

Intel Server System SR1530CLR - rack-mountable - no CPU - 0 GB - no HDD
SKU SR1530CLR
Product Description: | Intel Server System SR1530CLR - rack-mountable - no CPU - 0 GB - no HDD |
Type: | Server - rack-mountable |
Height (Rack Units): | 1U |
Server Scalability: | 2-way |
Processor: | No CPU |
RAM: | 0 GB (installed) / 12 GB (max) - DDR2 SDRAM - ECC |
Storage Controller: | SATA (SATA 3Gb/s); IDE |
- Specifications
- Description
General | |
Type: | Server |
Product Form Factor: | Rack-mountable - 1U |
Server Scalability: | 2-way |
Internal Bays Qty: | 2 |
Processor / Chipset | |
CPU: | No CPU |
64-bit Computing: | Yes |
Max CPU Qty: | 2 |
CPU Upgradability: | Upgradable |
Chipset Type: | Intel 5000V |
Front Side Bus: | 1333 MHz |
RAM | |
Installed Size: | 0 GB / 12 GB (max) |
Technology: | DDR2 SDRAM - ECC |
Form Factor: | FB-DIMM 240-pin |
Slots: | 6 (Total) / 6 (empty) |
Features: | Dual channel memory architecture, Memory Mirroring, Fully Buffered |
Upgrade Rule: | 2 modules at a time |
Hard Drive | |
Type: | No HDD |
Storage Controller | |
Type: | 1 x SATA - integrated |
Controller Interface Type: | SATA 3Gb/s |
Channel Qty: | 6 |
RAID Level: | RAID 0, RAID 1, RAID 10 |
Storage Controller (2nd) | |
Type: | 1 x IDE - integrated |
Optical Storage | |
Type: | No optical drive |
Monitor | |
Monitor Type: | None. |
Graphics Controller | |
Type: | Integrated |
Graphics Processor: | ATI ES1000 |
Video Memory: | 16 MB DDR SDRAM |
Video Interfaces: | VGA |
Networking | |
Type: | Integrated |
Ethernet Ports: | 2 x Gigabit Ethernet |
Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
Remote Management Protocol: | IPMI 2.0 |
Expansion / Connectivity | |
Bays: | 2 (total) / 2 (free) x internal 3.5" ¦ 1 (total) / 1 (free) x external 5.25" Slim Line |
Slots: | 2 (total) / 2 (free) x CPU ¦ 6 (total) / 6 (free) x FB-DIMM 240-pin ¦ 1 (total) / 1 (free) x PCIe x8 - low-profile ¦ 1 (total) / 1 (free) x PCI-X / 133 MHz - full-height ¦ 1 (total) / 0 (free) x Intel Adaptive Slot |
Interfaces: | 2 x LAN (Gigabit Ethernet) ¦ 1 x PS/2 keyboard ¦ 1 x PS/2 mouse ¦ 1 x VGA ¦ 3 x USB 2.0 (1 in front) ¦ 1 x serial |
Miscellaneous | |
Cables Included: | Serial ATA cable (2 pcs.) ¦ IDE cable |
Compliant Standards: | UL, VCCI, C-Tick, BSMI, GS, RRL, CB, DOC, MIC, FCC |
Power | |
Device Type: | Power supply |
Installed Qty: | 1 |
Power Provided: | 400 Watt |
Power Factor Correction: | Yes |
Operating System / Software | |
OS Certified: | Microsoft Windows 2000 Advanced Server, SUSE Linux Enterprise Server, Microsoft Windows Server 2003 Enterprise Edition, Novell NetWare 6.5, Red Hat Enterprise Linux 4 |
Dimensions & Weight | |
Width: | 43 cm |
Depth: | 50.8 cm |
Height: | 4.3 cm |
Environmental Parameters | |
Min Operating Temperature: | 10 °C |
Max Operating Temperature: | 35 °C |
Humidity Range Operating: | 0 - 95% |
This Intel Server System is designed for environments where processing power, reliable memory infrastructure, and redundant networking are required. This value rack-optimized 1U system provides the feature sets needed for Web-hosting, HPC applications, and other high transactional computing, at an affordable price point.
