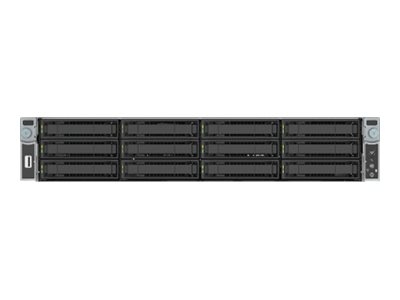

Intel Server System R2312WFTZS - rack-mountable - no CPU - 0 GB - no HDD

SKU R2312WFTZS
Product Description:Intel Server System R2312WFTZS - rack-mountable - no CPU - 0 GB - no HDD
Type:Server - rack-mountable
Height (Rack Units):2U
Server Scalability:2-way
Processor:No CPU
Processor Socket:Socket P
RAM:0 GB DDR4 SDRAM - ECC
Not in stock
  • Specifications
  • Description
General
Type:Server
Product Form Factor:Rack-mountable - 2U
Embedded Security:Trusted Platform Module (TPM 2.0) Security Chip
Server Scalability:2-way
Internal Bays Qty:4
Front Accessible Bays Qty:12
Hot-Swap Bays Qty:12
Processor / Chipset
CPU:No CPU
Max CPU Qty:2
CPU Upgradability:Upgradable
CPU Socket:Socket P
Chipset Type:Intel C624
RAM
Installed Size:0 GB
Technology:DDR4 SDRAM - ECC
Form Factor:DIMM 288-pin
Slots:24 (Total) / 24 (empty)
Features:Registered, Load-Reduced DIMM (LRDIMM)
Hard Drive
Type:No HDD
Storage Controller
Type:RAID
Controller Interface Type:SATA 6Gb/s
Channel Qty:12
RAID Level:RAID 0, RAID 1, RAID 10
Optical Storage
Type:No optical drive
Monitor
Monitor Type:None.
Expansion / Connectivity
Bays:12 (total) / 12 (free) x hot-swap 2.5" / 3.5" shared ¦ 2 internal 2.5" / 2xM.2 shared
Slots:2 (total) / 2 (free) x CPU ¦ 24 (total) / 24 (free) x DIMM 288-pin ¦ 6 (total) / 6 (free) x PCIe 3.0 x8
Interfaces:5 x USB ¦ 2 x serial
Miscellaneous
Included Accessories:2 x CPU Heatsink, air duct, 2 rack handles, 6 x system fans, 2 x standard CPU carriers, power supply bay blank insert, Intel Server Board S2600WFT, 2 x CPU heatsink "NO CPU" labels insert, 2 x riser card brackets, 2 x 3-slot PCIe riser cards, 2 x power cord retention straps assembly, 3 x RMFBU mounting brackets, SAS/NVMe combo backplane, 12 x 3.5" hot-swap drive bays with drive carriers and drive blanks, 12 x 3.5" hot-swap drive tool less carriers, 16 x DIMM slot blanks
Cables Included:I2C cable ¦ Mini SAS HD cable (2 pcs.) ¦ Power cable (2 pcs.)
Power
Device Type:Power supply
Power Redundancy:Optional
Installed Qty:1
Power Provided:1300 Watt
Manufacturer Warranty
Service & Support:Limited warranty - 3 years
Dimensions & Weight
Width:43 cm
Depth:71 cm
Height:8.74 cm
vis mere
Intel Server Board S2600WF product family delivers great power and performance. High memory capacity, networking, storage and I/O flexibility combine with innovative design to provide an exceptional and reliable server for business IT, appliance, data center, cloud and high performance computing applications.
  • Riser card slots with support for PCIe 3.0 add-in cards for high configuration flexibility
  • Networking flexibility via 10G SFP+ and 10GBase-T OCP mezzanine modules




The technical details come from 3rd party. edgemo is not responsible for any errors.
