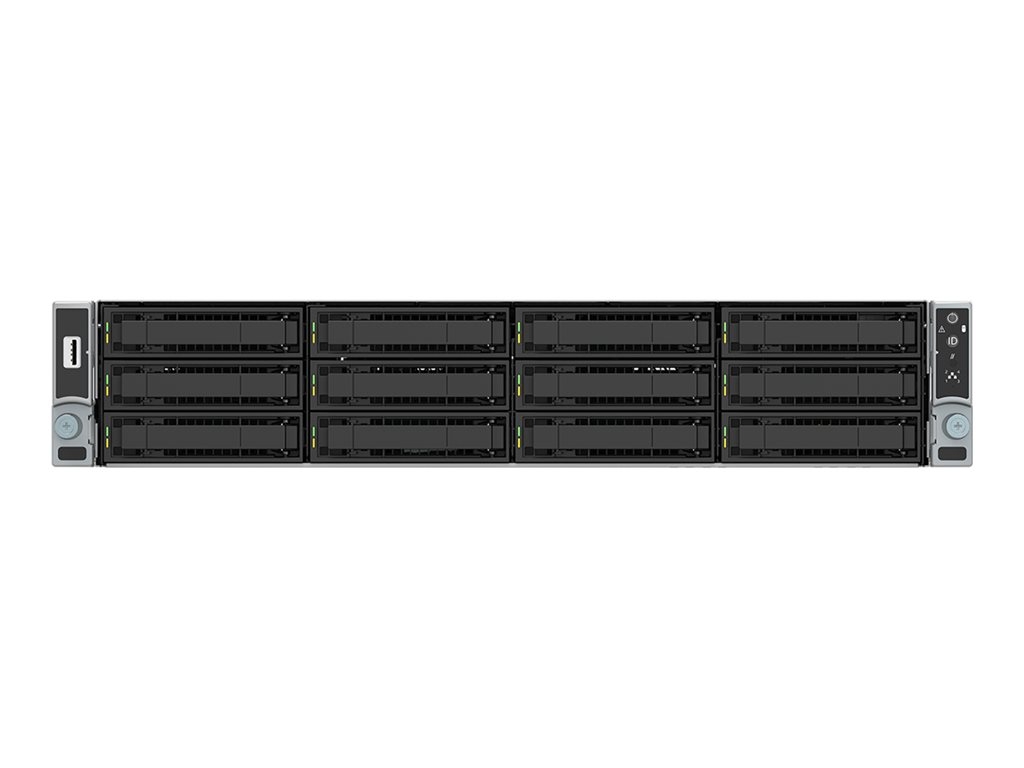

Printers & POSIntel Server System R2312WF0NPR - rack-mountable - no CPU - 0 GB - no HDD
SKU R2312WF0NPR
| Product Description: | Intel Server System R2312WF0NPR - rack-mountable - no CPU - 0 GB - no HDD |
| Type: | Server - rack-mountable |
| Height (Rack Units): | 2U |
| Server Scalability: | 2-way |
| Processor: | No CPU |
| Processor Socket: | Socket P |
| RAM: | 0 GB DDR4 SDRAM - ECC |
- Specifications
- Description
| General | |
| Type: | Server |
| Product Form Factor: | Rack-mountable - 2U |
| Embedded Security: | Trusted Platform Module (TPM 2.0) Security Chip |
| Server Scalability: | 2-way |
| Internal Bays Qty: | 4 |
| Front Accessible Bays Qty: | 12 |
| Hot-Swap Bays Qty: | 12 |
| Processor / Chipset | |
| CPU: | No CPU |
| Max CPU Qty: | 2 |
| CPU Upgradability: | Upgradable |
| CPU Socket: | Socket P |
| Chipset Type: | Intel C624 |
| RAM | |
| Installed Size: | 0 GB |
| Technology: | DDR4 SDRAM - ECC |
| Form Factor: | DIMM 288-pin |
| Slots: | 24 (Total) / 24 (empty) |
| Features: | Registered, Load-Reduced DIMM (LRDIMM) |
| Hard Drive | |
| Type: | No HDD |
| Storage Controller | |
| Type: | RAID |
| Controller Interface Type: | SATA 6Gb/s |
| Channel Qty: | 10 |
| RAID Level: | RAID 0, RAID 1, RAID 10 |
| Optical Storage | |
| Type: | No optical drive |
| Monitor | |
| Monitor Type: | None. |
| Networking | |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Remote Management Protocol: | IPMI 2.0 |
| Expansion / Connectivity | |
| Bays: | 12 (total) / 12 (free) x hot-swap 2.5" / 3.5" shared ¦ 2 internal 2.5" / 2xM.2 shared |
| Slots: | 6 (total) / 6 (free) x PCIe 3.0 x8 |
| Interfaces: | 5 x USB ¦ 2 x serial |
| Miscellaneous | |
| Included Accessories: | 2 x CPU Heatsink, air duct, 2 rack handles, 6 x system fans, 2 x standard CPU carriers, power supply bay blank insert, 2 x riser card brackets, 2 x 3-slot PCIe riser cards, 2-slot low profile PCIe riser card, 2 x power cord retention straps assembly, SAS/NVMe combo backplane, 12 x 3.5" hot-swap drive tool less carriers, 16 x DIMM slot blanks, Chassis with Quick Reference Label affixed to top cover, Intel Server Board S2600WF0R, 2 x CPU heatsink "NO CPU" Mylar spacer insert, 12 x 3.5" hot-swap drive bays with drive carriers and blanks, storage rack handle assembly |
| Cables Included: | I2C cable ¦ Mini SAS HD cable (3 pcs.) ¦ Power cable |
| Power | |
| Device Type: | Power supply |
| Power Redundancy: | Optional |
| Installed Qty: | 1 |
| Power Provided: | 1300 Watt |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 3 years |
| Dimensions & Weight | |
| Width: | 43 cm |
| Depth: | 71 cm |
| Height: | 8.74 cm |
Intel Server Board S2300WF product family delivers great power and performance. High memory capacity, networking, storage and I/O flexibility combine with innovative design to provide an exceptional and reliable server for business IT, appliance, data center, cloud and high performance computing applications.
The technical details come from 3rd party. edgemo is not responsible for any errors.
