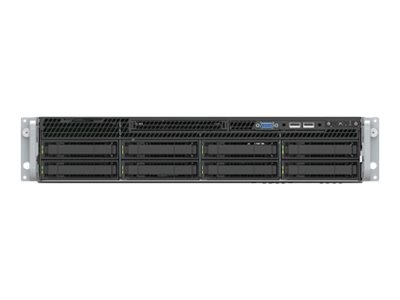

Printers & POSIntel Server System R2308WFTZS - rack-mountable no CPU - 0 GB - no HDD
SKU R2308WFTZS
| Product Description: | Intel Server System R2308WFTZS - rack-mountable no CPU - 0 GB - no HDD |
| Type: | Server - rack-mountable |
| Height (Rack Units): | 2U |
| Server Scalability: | 2-way |
| Processor: | No CPU |
| Processor Socket: | Socket P |
| RAM: | 0 GB DDR4 SDRAM - ECC |
- Specifications
- Description
| General | |
| Type: | Server |
| Product Form Factor: | Rack-mountable - 2U |
| Embedded Security: | Trusted Platform Module (TPM 2.0) Security Chip |
| Server Scalability: | 2-way |
| Internal Bays Qty: | 4 |
| Front Accessible Bays Qty: | 8 |
| Hot-Swap Bays Qty: | 8 |
| Processor / Chipset | |
| CPU: | No CPU |
| Max CPU Qty: | 2 |
| CPU Upgradability: | Upgradable |
| CPU Socket: | Socket P |
| Chipset Type: | Intel C624 |
| RAM | |
| Installed Size: | 0 GB |
| Technology: | DDR4 SDRAM - ECC |
| Form Factor: | DIMM 288-pin |
| Slots: | 24 (Total) / 24 (empty) |
| Features: | Registered, Load-Reduced DIMM (LRDIMM) |
| Hard Drive | |
| Type: | No HDD |
| Storage Controller | |
| Type: | RAID |
| Controller Interface Type: | SATA 6Gb/s |
| Channel Qty: | 12 |
| RAID Level: | RAID 0, RAID 1, RAID 10 |
| Optical Storage | |
| Type: | No optical drive |
| Monitor | |
| Monitor Type: | None. |
| Networking | |
| Ethernet Ports: | 2 x 10 Gigabit Ethernet |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet |
| Remote Management Protocol: | IPMI 2.0 |
| Features: | Integrated BMC with IPMI |
| Expansion / Connectivity | |
| Bays: | 8 (total) / 8 (free) x hot-swap 2.5" / 3.5" shared ¦ 2 internal 2.5" / 2xM.2 shared |
| Slots: | 2 (total) / 2 (free) x CPU ¦ 24 (total) / 24 (free) x DIMM 288-pin ¦ 6 (total) / 6 (free) x PCIe 3.0 x8 |
| Interfaces: | 5 x USB ¦ 2 x LAN (10Gigabit Ethernet) ¦ 2 x serial |
| Miscellaneous | |
| Included Accessories: | 2 x CPU Heatsink, air duct, 2 rack handles, 12Gb SAS backplane, standard control panel assembly, front I/O panel assembly, 6 x system fans, 8 x DIMM slot blanks, 2 x standard CPU carriers, power supply bay blank insert, Intel Server Board S2600WFT, 2 x CPU heatsink "NO CPU" labels insert, 2 x riser card brackets, 2 x 3-slot PCIe riser cards, 2-slot low profile PCIe riser card, 2 x power cord retention straps assembly, 3 x RMFBU mounting brackets, 3.5" hot swap drive bay, 3.5" hot swap drive tool less carriers |
| Cables Included: | I2C cable ¦ Mini SAS HD cable (2 pcs.) ¦ Power cable (2 pcs.) |
| Power | |
| Device Type: | Power supply |
| Power Redundancy: | Optional |
| Installed Qty: | 1 |
| Power Provided: | 1300 Watt |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 3 years |
| Dimensions & Weight | |
| Width: | 43 cm |
| Depth: | 71 cm |
| Height: | 8.74 cm |
The technical details come from 3rd party. edgemo is not responsible for any errors.
