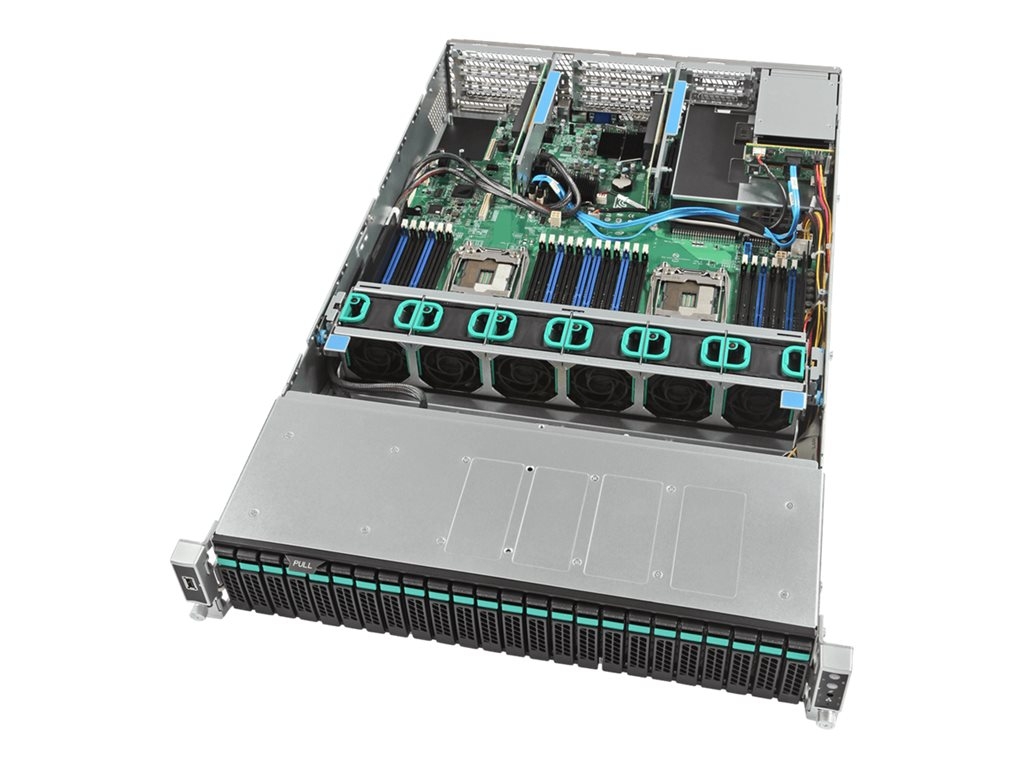

Printers & POSIntel Server System R2224WTTYSR - rack-mountable - no CPU - 0 GB - no HDD
SKU R2224WTTYSR
| Product Description: | Intel Server System R2224WTTYSR - rack-mountable - no CPU - 0 GB - no HDD |
| Type: | Server - rack-mountable |
| Height (Rack Units): | 2U |
| Server Scalability: | 2-way |
| Processor: | No CPU |
| Processor Socket: | LGA2011-v3 Socket |
| RAM: | 0 GB (installed) / 1536 GB (max) - DDR4 SDRAM - ECC |
- Specifications
- Description
| General | |
| Type: | Server |
| Product Form Factor: | Rack-mountable - 2U |
| Server Scalability: | 2-way |
| Front Accessible Bays Qty: | 22 |
| Hot-Swap Bays Qty: | 24 |
| Processor / Chipset | |
| CPU: | No CPU |
| Max CPU Qty: | 2 |
| CPU Upgradability: | Upgradable |
| CPU Socket: | LGA2011-v3 Socket |
| Chipset Type: | Intel C612 |
| RAM | |
| Installed Size: | 0 GB / 1536 GB (max) |
| Technology: | DDR4 SDRAM - ECC |
| Form Factor: | DIMM 288-pin |
| Slots: | 24 (Total) / 24 (empty) |
| Hard Drive | |
| Type: | No HDD |
| Storage Controller | |
| Type: | 1 x RAID |
| Controller Interface Type: | SATA 6Gb/s / SAS 12Gb/s |
| Channel Qty: | 10 |
| Optical Storage | |
| Type: | No optical drive |
| Monitor | |
| Monitor Type: | None. |
| Graphics Controller | |
| Video Interfaces: | VGA |
| Networking | |
| Ethernet Ports: | 2 x 10 Gigabit Ethernet |
| Ethernet Controller: | Intel X540 |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet |
| Remote Management Protocol: | IPMI 2.0 |
| Remote Management Controller: | Emulex Pilot 3 iBMC |
| Expansion / Connectivity | |
| Bays: | 24 (total) / 24 (free) x hot-swap 2.5" / 3.5" shared |
| Slots: | 2 (total) / 2 (free) x CPU ¦ 24 (total) / 24 (free) x DIMM 288-pin ¦ 1 (total) / 1 (free) x PCIe 3.0 x4 ¦ 6 (total) / 6 (free) x PCIe 3.0 x8 |
| Interfaces: | 1 x VGA (1 rear) ¦ 5 x USB 3.0 ¦ 2 x LAN (10Gigabit Ethernet) - RJ-45 ¦ 1 x serial - RJ-45 ¦ 1 x management - RJ-45 |
| Miscellaneous | |
| Included Accessories: | 2 x CPU Heatsink, air duct, 2 x riser cards |
| Cables Included: | Mini SAS HD cable (3 pcs.) |
| Power | |
| Device Type: | Power supply - hot-plug |
| Power Redundancy: | Optional |
| Power Redundancy Scheme: | 1+1 (with optional power supply) |
| Installed Qty: | 1 |
| Max Supported Qty: | 2 |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
| Power Provided: | 1100 Watt |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 3 years |
| Dimensions & Weight | |
| Width: | 43 cm |
| Depth: | 71 cm |
| Height: | 8.73 cm |
The technical details come from 3rd party. edgemo is not responsible for any errors.
