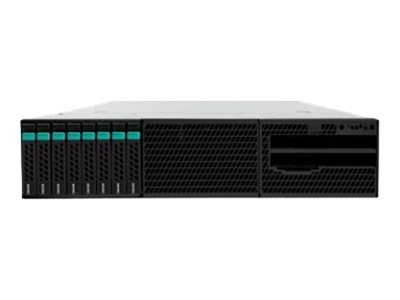

Printers & POSIntel Server System R2208GZ4IS - rack-mountable - no CPU - 0 GB - no HDD
SKU R2208GZ4IS
| Product Description: | Intel Server System R2208GZ4IS - rack-mountable - no CPU - 0 GB - no HDD |
| Type: | Server - rack-mountable |
| Height (Rack Units): | 2U |
| Server Scalability: | 2-way |
| Processor: | No CPU |
| Processor Socket: | LGA2011 Socket |
| RAM: | 0 GB DDR3 SDRAM |
- Specifications
- Description
| General | |
| Type: | Server |
| Product Form Factor: | Rack-mountable - 2U |
| Server Scalability: | 2-way |
| Front Accessible Bays Qty: | 1 |
| Hot-Swap Bays Qty: | 8 |
| Processor / Chipset | |
| CPU: | No CPU |
| Max CPU Qty: | 2 |
| CPU Upgradability: | Upgradable |
| CPU Socket: | LGA2011 Socket |
| Chipset Type: | Intel C600-A |
| RAM | |
| Installed Size: | 0 GB |
| Technology: | DDR3 SDRAM |
| Form Factor: | DIMM 240-pin |
| Slots: | 24 (Total) / 24 (empty) |
| Features: | Unbuffered, registered, quad channel memory architecture, Load-Reduced DIMM (LRDIMM) |
| Hard Drive | |
| Type: | No HDD |
| Storage Controller | |
| Type: | 1 x SATA - integrated |
| Controller Interface Type: | SATA 6Gb/s |
| Channel Qty: | 2 |
| Storage Controller (2nd) | |
| Type: | 1 x SAS - integrated |
| Controller Interface Type: | SATA 3Gb/s / SAS |
| Channel Qty: | 8 |
| Optical Storage | |
| Type: | No optical drive |
| Monitor | |
| Monitor Type: | None. |
| Graphics Controller | |
| Type: | Integrated |
| Video Memory: | 16 MB DDR3 SDRAM |
| Video Interfaces: | VGA |
| Networking | |
| Type: | Integrated |
| Ethernet Ports: | 4 x Gigabit Ethernet |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Remote Management Protocol: | IPMI 2.0 |
| Expansion / Connectivity | |
| Bays: | 8 (total) / 8 (free) x hot-swap 2.5" ¦ 1 (total) / 1 (free) x external 5.25" Slim Line |
| Slots: | 2 (total) / 2 (free) x CPU ¦ 24 (total) / 24 (free) x DIMM 240-pin ¦ 2 (total) / 2 (free) x PCIe 3.0 x16 ¦ 6 (total) / 6 (free) x PCIe 3.0 x8 ¦ 1 (total) / 1 (free) x expansion slot |
| Interfaces: | 2 x VGA (1 front, 1 rear) ¦ 5 x USB 2.0 (2 front, 3 rear) ¦ 1 x serial ¦ 4 x LAN (Gigabit Ethernet) ¦ 1 x management |
| Miscellaneous | |
| Included Accessories: | 2 x CPU Heatsink, air duct, 2 x riser cards, rack rail kit |
| Cables Included: | Serial ATA / SAS cable (2 pcs.) |
| Power | |
| Device Type: | Power supply |
| Power Redundancy: | Yes |
| Power Redundancy Scheme: | 1+1 |
| Installed Qty: | 1 |
| Max Supported Qty: | 2 |
| Voltage Required: | DC -48 V |
| Power Provided: | 750 Watt |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 3 years |
| Dimensions & Weight | |
| Width: | 43 cm |
| Depth: | 71 cm |
| Height: | 8.7 cm |
| Environmental Parameters | |
| Min Operating Temperature: | 10 °C |
| Max Operating Temperature: | 35 °C |
The Intel Server System R2200GZ features an energy efficient spread core design and maximum memory capacity with up to 24 DIMMS, S2600GZ-based rack-optimized server systems deliver unmatched performance, I/O capacity, and flexibility in an expansive family of 1U and 2U systems for the most demanding enterprise data center, cloud, or high performance computing (HPC) environments.
- Eight 2.5" hot-swap hard drives
- Platinum efficiency common redundant power supplies
- Five 80mm fans for enterprise level cooling
- PCIe Gen3 x24 super slots for superb I/O flexibility
- Energy efficient spread core design with Intel Efficient Power technology
- Onboard flash boot support includes eUSB SSD and SATA DOM
- Intel Trusted Platform Module (Intel TPM) header for Intel Trusted Execution Technology (Intel TXT) support
The technical details come from 3rd party. edgemo is not responsible for any errors.
