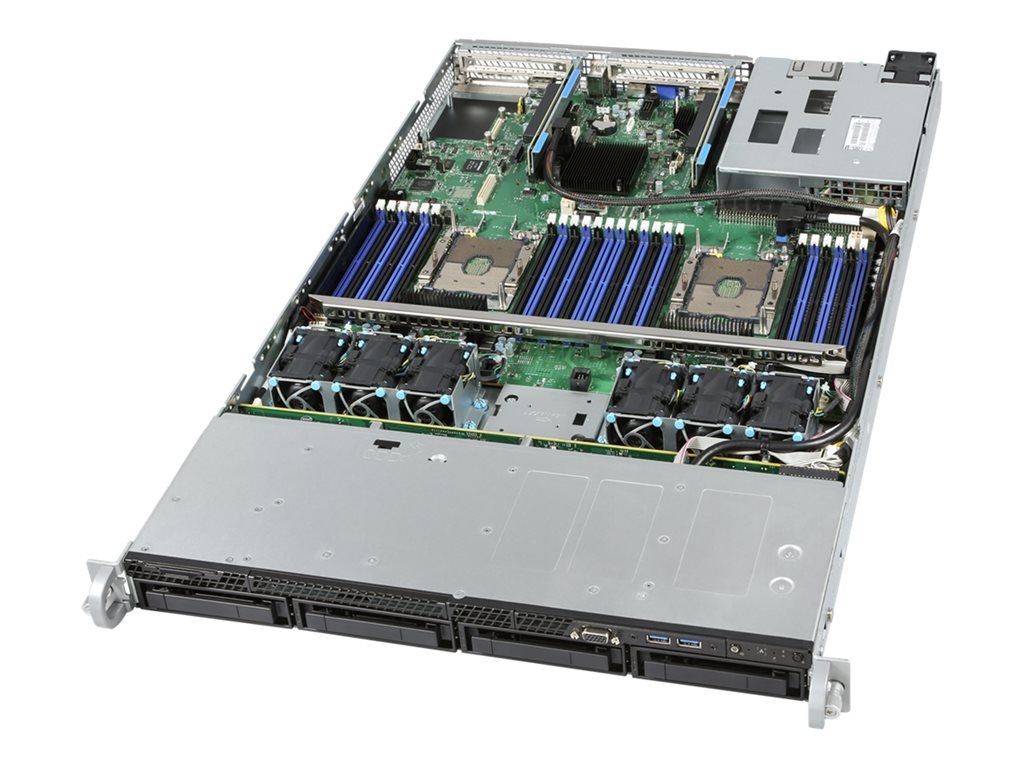

Intel Server System R1304WFTYSR - rack-mountable no CPU - 0 GB - no HDD
SKU R1304WFTYSR
Product Description: | Intel Server System R1304WFTYSR - rack-mountable no CPU - 0 GB - no HDD |
Type: | Server - rack-mountable |
Height (Rack Units): | 1U |
Server Scalability: | 2-way |
Processor: | No CPU |
Processor Socket: | Socket P |
RAM: | 0 GB DDR4 SDRAM - ECC |
- Specifications
- Description
General | |
Type: | Server |
Product Form Factor: | Rack-mountable - 1U |
Embedded Security: | Trusted Platform Module (TPM 2.0) Security Chip |
Server Scalability: | 2-way |
Internal Bays Qty: | 2 |
Front Accessible Bays Qty: | 4 |
Hot-Swap Bays Qty: | 4 |
Processor / Chipset | |
CPU: | No CPU |
Max CPU Qty: | 2 |
CPU Upgradability: | Upgradable |
CPU Socket: | Socket P |
Chipset Type: | Intel C624 |
RAM | |
Installed Size: | 0 GB |
Technology: | DDR4 SDRAM - ECC |
Form Factor: | DIMM 288-pin |
Slots: | 24 (Total) / 24 (empty) |
Features: | Registered, Load-Reduced DIMM (LRDIMM) |
Hard Drive | |
Type: | No HDD |
Storage Controller | |
Type: | RAID |
Controller Interface Type: | SATA 6Gb/s |
Channel Qty: | 10 |
RAID Level: | RAID 0, RAID 1, RAID 10 |
Optical Storage | |
Type: | No optical drive |
Monitor | |
Monitor Type: | None. |
Networking | |
Ethernet Ports: | 2 x 10 Gigabit Ethernet |
Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet |
Remote Management Protocol: | IPMI 2.0 |
Features: | Integrated BMC with IPMI |
Expansion / Connectivity | |
Bays: | 4 (total) / 4 (free) x hot-swap 2.5" / 3.5" shared ¦ 2 internal M.2 |
Slots: | 2 (total) / 2 (free) x PCIe 3.0 x16 |
Interfaces: | 5 x USB ¦ 2 x LAN (10Gigabit Ethernet) - RJ-45 ¦ 2 x serial ¦ Management |
Miscellaneous | |
Included Accessories: | 2 x PCI-Express (1x16) Riser Card, 2 x CPU Heatsink, air duct, 4 x 3.5" hot-swap drive trays, 12Gb SAS backplane, 4 x 3.5" hot swap drive tool less carriers, standard control panel assembly, front I/O panel assembly, 6 x system fans, 2 x standard CPU carriers, 2 x CPU heatsink "NO CPU" labels insert, Chassis with Quick Reference Label affixed to top cover, Intel Server Board S2600WFTR |
Cables Included: | I2C cable ¦ Mini SAS HD cable (2 pcs.) ¦ Power cable |
Power | |
Device Type: | Power supply |
Power Redundancy: | Optional |
Power Redundancy Scheme: | 1+1 (with optional power supply) |
Installed Qty: | 1 |
Power Provided: | 1100 Watt |
Manufacturer Warranty | |
Service & Support: | Limited warranty - 3 years |
Dimensions & Weight | |
Width: | 43 cm |
Depth: | 71 cm |
Height: | 4.37 cm |
The Intel Server System R1304WFTYSR is engineered to meet the demands of modern data centers and high-performance computing environments. This rack-mountable server system offers exceptional scalability and flexibility, supporting 2-way server scalability for dual CPU configurations and featuring 24 DIMM slots for DDR4 SDRAM to handle memory-intensive applications. With a variety of storage options, including hot-swap bays for 2.5" and 3.5" drives and support for RAID 0, 1, and 10, it provides both flexibility and security for your data storage needs.
High-speed network connectivity is ensured with dual 10 Gigabit Ethernet ports, making it suitable for high-traffic networks and performance-critical applications. The server's integrated BMC with IPMI 2.0 allows for efficient remote management, ensuring seamless operation and maintenance. Additionally, the system is equipped with a 1100 W power supply to support high-power components and includes an embedded Trusted Platform Module (TPM 2.0) security chip, offering robust security features to protect against unauthorized access and ensure data integrity. The Intel Server System R1304WFTYSR represents a reliable, secure, and high-performance solution for today's computing challenges.
High-speed network connectivity is ensured with dual 10 Gigabit Ethernet ports, making it suitable for high-traffic networks and performance-critical applications. The server's integrated BMC with IPMI 2.0 allows for efficient remote management, ensuring seamless operation and maintenance. Additionally, the system is equipped with a 1100 W power supply to support high-power components and includes an embedded Trusted Platform Module (TPM 2.0) security chip, offering robust security features to protect against unauthorized access and ensure data integrity. The Intel Server System R1304WFTYSR represents a reliable, secure, and high-performance solution for today's computing challenges.
- 1U rack-mount chassis for the Intel Server Board S2600WF and Intel Xeon Scalable processor
- Tool-less drive carrier design simplifies assembly and serviceability
