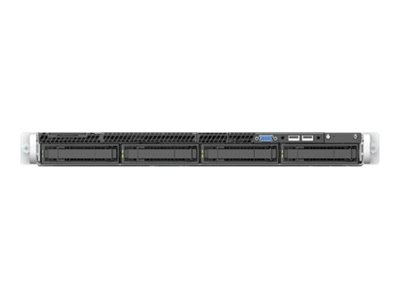

Printers & POSIntel Server System R1304WF0ZSR - rack-mountable no CPU - 0 GB - no HDD
SKU R1304WF0ZSR
| Product Description: | Intel Server System R1304WF0ZSR - rack-mountable no CPU - 0 GB - no HDD |
| Type: | Server - rack-mountable |
| Height (Rack Units): | 1U |
| Server Scalability: | 2-way |
| Processor: | No CPU |
| Processor Socket: | Socket P |
| Processor Main Features: | Intel Virtualization Technology for Directed I/O |
- Specifications
- Description
| General | |
| Type: | Server |
| Product Form Factor: | Rack-mountable - 1U |
| Embedded Security: | Trusted Platform Module (TPM 2.0) Security Chip |
| Server Scalability: | 2-way |
| Internal Bays Qty: | 2 |
| Front Accessible Bays Qty: | 4 |
| Hot-Swap Bays Qty: | 4 |
| Processor / Chipset | |
| CPU: | No CPU |
| Max CPU Qty: | 2 |
| CPU Upgradability: | Upgradable |
| Processor Main Features: | Intel Virtualization Technology for Directed I/O |
| CPU Socket: | Socket P |
| Chipset Type: | Intel C624 |
| RAM | |
| Installed Size: | 0 GB (installed) / 6 TB (max) |
| Technology: | DDR4 SDRAM - ECC |
| Form Factor: | DIMM 288-pin |
| Slots: | 24 (Total) / 24 (empty) |
| Features: | Registered, Load-Reduced DIMM (LRDIMM), supports Intel Optane DC Persistent Memory (DCPMM) |
| Hard Drive | |
| Type: | No HDD |
| Features: | Intel Rapid Storage Technology |
| Storage Controller | |
| Type: | RAID |
| Controller Interface Type: | SATA 6Gb/s |
| Channel Qty: | 10 |
| RAID Level: | RAID 0, RAID 1, RAID 10 |
| Optical Storage | |
| Type: | No optical drive |
| Monitor | |
| Monitor Type: | None. |
| Networking | |
| Ethernet Ports: | 2 x 10 Gigabit Ethernet |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet |
| Remote Management Protocol: | IPMI 2.0 |
| Features: | Integrated BMC with IPMI, Intel Remote Management Module Support |
| Expansion / Connectivity | |
| Bays: | 4 (total) / 4 (free) x hot-swap 2.5" / 3.5" shared ¦ 2 (total) / 2 (free) x internal M.2 |
| Slots: | 2 (total) / 2 (free) x PCIe 3.0 x16 |
| Interfaces: | 5 x USB 3.0 (2 front, 3 rear) ¦ 1 x USB 2.0 - Type A (1 internal) ¦ 2 x LAN (10Gigabit Ethernet) - RJ-45 ¦ 2 x serial ¦ 1 x management (Gigabit Ethernet) - RJ-45 |
| Miscellaneous | |
| Included Accessories: | Chassis with Quick Reference Label affixed to top cover, Intel Server Board S2600WF0R, 2 x PCI-Express (1x16) Riser Card, 4 x 3.5" hot-swap drive trays, standard control panel assembly, front I/O panel assembly, air duct, 6 x system fans, 2 x CPU Heatsink, 2 x CPU heatsink "NO CPU" labels insert, 2 x standard CPU carriers, 8 x DIMM slot blanks, chassis stiffener bar, power supply bay blank insert |
| Cables Included: | I2C cable ¦ Mini SAS HD cable |
| Power | |
| Device Type: | Power supply - hot-plug |
| Power Redundancy: | Optional |
| Power Redundancy Scheme: | 1+1 (with optional power supply) |
| Installed Qty: | 1 |
| Max Supported Qty: | 2 |
| Power Provided: | 1300 Watt |
| 80 PLUS Certification: | 80 PLUS Titanium |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 3 years |
| Dimensions & Weight | |
| Width: | 43 cm |
| Depth: | 71 cm |
| Height: | 4.37 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Width: | 57.7 cm |
| Shipping Depth: | 98.3 cm |
| Shipping Height: | 25.9 cm |
These 1U rack systems feature memory capacity, networking, storage and I/O flexibility to scale as your business grows and evolves. Supporting the Intel Xeon Scalable processor, these Intel server board S2600WF-based systems are designed to address the requirements of your most demanding workloads.
- Supports Intel Xeon Scalable processor family
- 96 PCIe Gen 3 lanes available for maximum I/O capacity
- Two 80 mm M.2 modules
- Optimized for management of HPC clusters
- Ideal for hot and warm tier data and dense NVMe storage
- Designed for cloud infrastructure at scale
The technical details come from 3rd party. edgemo is not responsible for any errors.
