Printers & POSIntel Server System R1304WF0YSR - rack-mountable no CPU - 0 GB - no HDD
SKU R1304WF0YSR
| Product Description: | Intel Server System R1304WF0YSR - rack-mountable no CPU - 0 GB - no HDD |
| Type: | Server - rack-mountable |
| Height (Rack Units): | 1U |
| Server Scalability: | 2-way |
| Processor: | No CPU |
| Processor Socket: | Socket P |
| RAM: | 0 GB DDR4 SDRAM - ECC |
- Specifications
- Description
| General | |
| Type: | Server |
| Product Form Factor: | Rack-mountable - 1U |
| Embedded Security: | Trusted Platform Module (TPM 2.0) Security Chip |
| Server Scalability: | 2-way |
| Internal Bays Qty: | 2 |
| Front Accessible Bays Qty: | 4 |
| Hot-Swap Bays Qty: | 4 |
| Processor / Chipset | |
| CPU: | No CPU |
| Max CPU Qty: | 2 |
| CPU Upgradability: | Upgradable |
| CPU Socket: | Socket P |
| Chipset Type: | Intel C624 |
| RAM | |
| Installed Size: | 0 GB |
| Technology: | DDR4 SDRAM - ECC |
| Form Factor: | DIMM 288-pin |
| Slots: | 24 (Total) / 24 (empty) |
| Features: | Registered, Load-Reduced DIMM (LRDIMM) |
| Hard Drive | |
| Type: | No HDD |
| Storage Controller | |
| Type: | RAID |
| Controller Interface Type: | SATA 6Gb/s |
| Channel Qty: | 10 |
| RAID Level: | RAID 0, RAID 1, RAID 10 |
| Optical Storage | |
| Type: | No optical drive |
| Monitor | |
| Monitor Type: | None. |
| Networking | |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Remote Management Protocol: | IPMI 2.0 |
| Features: | Integrated BMC with IPMI |
| Expansion / Connectivity | |
| Bays: | 4 (total) / 4 (free) x hot-swap 2.5" / 3.5" shared ¦ 2 internal M.2 |
| Slots: | 2 (total) / 2 (free) x PCIe 3.0 x16 |
| Interfaces: | 5 x USB ¦ LAN ¦ 2 x serial |
| Miscellaneous | |
| Included Accessories: | 2 x PCI-Express (1x16) Riser Card, 2 x CPU Heatsink, air duct, 4 x 3.5" hot-swap drive trays, 12Gb SAS backplane, 4 x 3.5" hot swap drive tool less carriers, standard control panel assembly, front I/O panel assembly, 6 x system fans, 8 x DIMM slot blanks, chassis stiffener bar, 2 x standard CPU carriers, 2 x CPU heatsink "NO CPU" labels insert, Chassis with Quick Reference Label affixed to top cover, Intel Server Board S2600WF0R |
| Cables Included: | I2C cable ¦ Mini SAS HD cable (2 pcs.) ¦ Power cable |
| Power | |
| Device Type: | Power supply |
| Power Redundancy: | Optional |
| Power Redundancy Scheme: | 1+1 (with optional power supply) |
| Installed Qty: | 1 |
| Power Provided: | 1100 Watt |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 3 years |
| Dimensions & Weight | |
| Width: | 43 cm |
| Depth: | 71 cm |
| Height: | 4.37 cm |

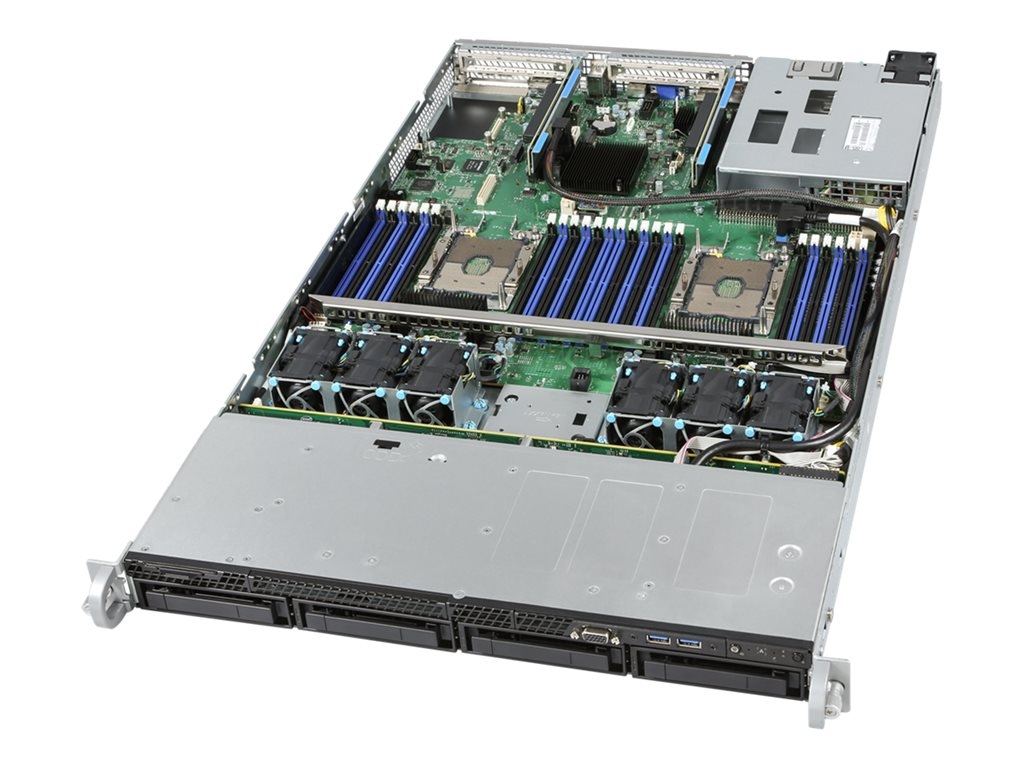

The Intel Server System R1304WF0YSR is engineered to meet the demands of modern data centers and high-performance computing environments. Featuring a rack-mountable form factor, this server system is designed for scalability and flexibility, supporting up to two CPUs and offering 24 DIMM slots for DDR4 SDRAM, which ensures high-speed data processing and ample memory capacity. With hot-swap bays that accommodate both 2.5" and 3.5" drives, along with M.2 internal slots, it provides a variety of storage configurations for optimal performance and maintenance ease. The system's robust 1100 W power supply ensures stable and efficient power, even under heavy workloads. Additionally, the integrated BMC with IPMI 2.0 enables effective remote management, making it easier to monitor and manage server health and performance. Whether deploying virtualization environments, high-end enterprise applications, or storage and networking solutions, the Intel Server System R1304WF0YSR offers the reliability, flexibility, and performance needed to support critical business operations.
- 1U rack-mount chassis for the Intel Server Board S2600WF and Intel Xeon Scalable processor
- Tool-less drive carrier design simplifies assembly and serviceability
The technical details come from 3rd party. edgemo is not responsible for any errors.
