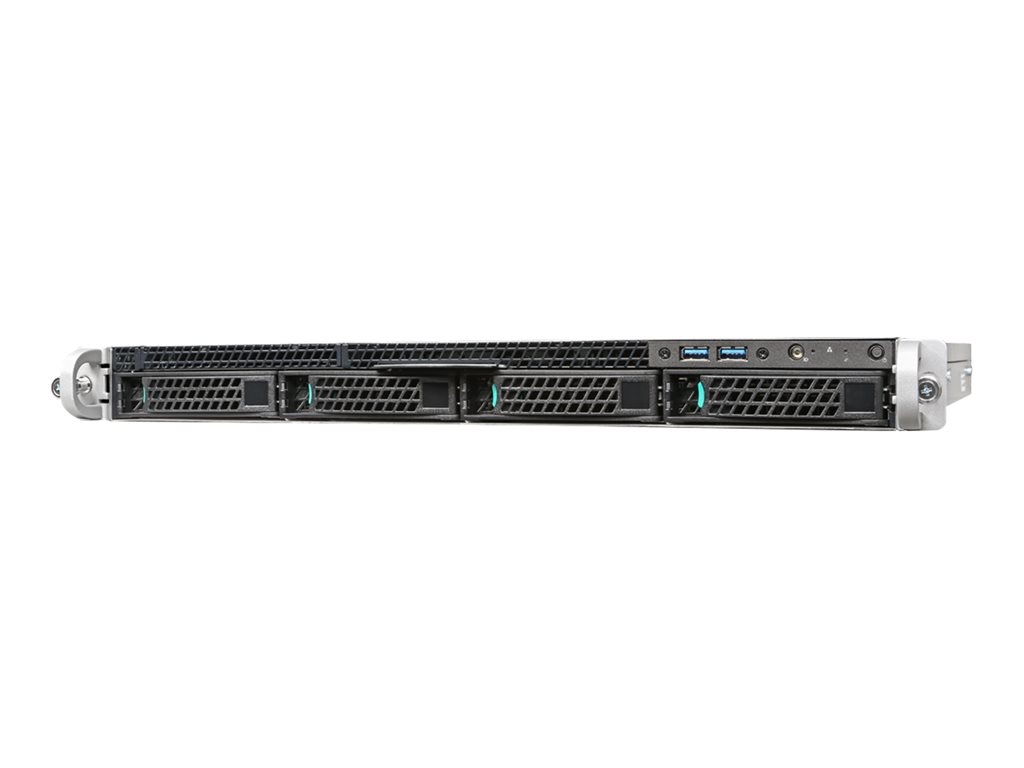

Printers & POSIntel Server System R1304SPOSHBNR - rack-mountable - no CPU - 0 GB - no HDD
SKU R1304SPOSHBNR
| Product Description: | Intel Server System R1304SPOSHBNR - rack-mountable - no CPU - 0 GB - no HDD |
| Type: | Server - rack-mountable |
| Height (Rack Units): | 1U |
| Server Scalability: | 1-way |
| Processor: | No CPU |
| Processor Socket: | LGA1151 Socket |
| RAM: | 0 GB (installed) / 64 GB (max) - DDR4 SDRAM - ECC |
- Specifications
- Description
| General | |
| Type: | Server |
| Product Form Factor: | Rack-mountable - 1U |
| Built-in Devices: | Backplane |
| Embedded Security: | Trusted Platform Module (TPM 1.2) Security Chip |
| Server Scalability: | 1-way |
| Front Accessible Bays Qty: | 4 |
| Hot-Swap Bays Qty: | 4 |
| Processor / Chipset | |
| CPU: | No CPU |
| Max CPU Qty: | 1 |
| CPU Socket: | LGA1151 Socket |
| Chipset Type: | Intel C236 |
| RAM | |
| Installed Size: | 0 GB / 64 GB (max) |
| Technology: | DDR4 SDRAM - ECC |
| Form Factor: | DIMM 288-pin |
| Slots: | 4 (Total) / 4 (empty) |
| Features: | Unregistered |
| Hard Drive | |
| Type: | No HDD |
| Storage Controller | |
| Type: | RAID |
| Controller Interface Type: | SATA 6Gb/s / SAS 12Gb/s |
| Channel Qty: | 8 |
| RAID Level: | RAID 0, RAID 1, RAID 5, RAID 10 |
| Optical Storage | |
| Type: | No optical drive |
| Monitor | |
| Monitor Type: | None. |
| Networking | |
| Ethernet Ports: | 2 x Gigabit Ethernet |
| Ethernet Controller: | Intel I210 |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Remote Management Protocol: | IPMI 2.0 |
| Expansion / Connectivity | |
| Bays: | 4 (total) / 4 (free) x hot-swap 2.5" / 3.5" shared ¦ Internal M.2 2242 |
| Slots: | 1 (total) / 1 (free) x CPU ¦ 4 (total) / 4 (free) x DIMM 288-pin ¦ 1 (total) / 1 (free) x PCIe 3.0 x16 (x8 mode) |
| Interfaces: | 9 x USB ¦ 2 x LAN (Gigabit Ethernet) - RJ-45 ¦ 1 x management - RJ-45 |
| Miscellaneous | |
| Included Accessories: | Riser card, 3 x system fans, 4 x 3.5" hot-swap drive trays |
| Cables Included: | Serial ATA cable ¦ Serial ATA / SAS cable |
| Power | |
| Device Type: | Power supply |
| Installed Qty: | 1 |
| Power Provided: | 350 Watt |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 3 years |
| Dimensions & Weight | |
| Width: | 43.8 cm |
| Depth: | 60.6 cm |
| Height: | 4.32 cm |
Small businesses need a robust and cost-effective server that can scale as they grow. The Intel Server Board S1200SP Product Family meets this need in a pedestal or rack system that scales via SATA and PCIe expansion options for increased storage, functionality or faster networking speed. The Intel Xeon processors E3-1200 v5 product family has the processing to deliver reliability, durability and performance with server management features that make this server ideal for SMB, embedded, and storage and security appliance applications.
- Intel Xeon processors E3-1200 v5 performance with dual 1GBase-T connectivity
- Maximum memory via four DDR4 ECC UDIMM sockets
- Storage flexibility
- Server Management features including a 1GBase-T dedicated management port, IPMI 2.0 and BMC
The technical details come from 3rd party. edgemo is not responsible for any errors.
