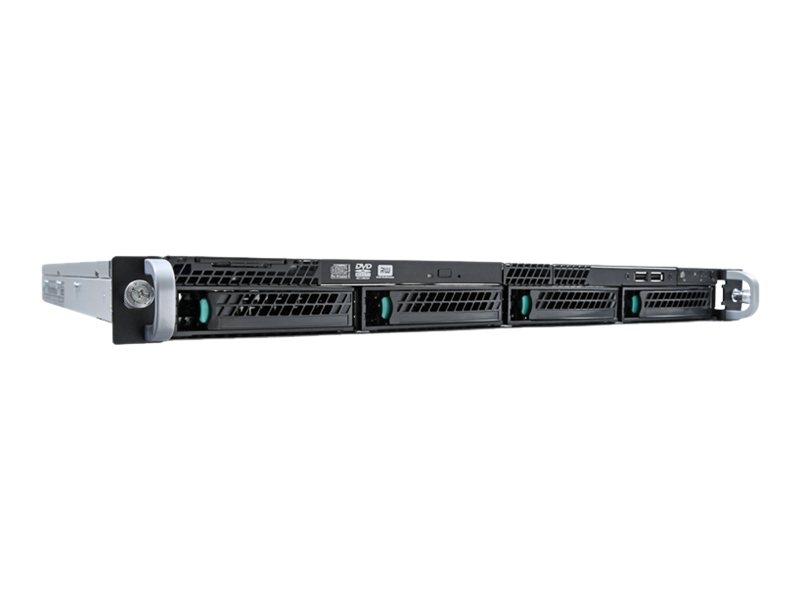

Intel Server System R1304RPOSHBN - rack-mountable - no CPU - 0 GB - no HDD
SKU R1304RPOSHBN
Product Description: | Intel Server System R1304RPOSHBN - rack-mountable - no CPU - 0 GB - no HDD |
Type: | Server - rack-mountable |
Height (Rack Units): | 1U |
Server Scalability: | 1-way |
Processor: | No CPU |
Processor Socket: | LGA1150 Socket |
RAM: | 0 GB (installed) / 32 GB (max) - DDR3 SDRAM - ECC |
- Specifications
- Description
General | |
Type: | Server |
Product Form Factor: | Rack-mountable - 1U |
Server Scalability: | 1-way |
Front Accessible Bays Qty: | 1 |
Hot-Swap Bays Qty: | 4 |
Processor / Chipset | |
CPU: | No CPU |
Max CPU Qty: | 1 |
CPU Upgradability: | Upgradable |
CPU Socket: | LGA1150 Socket |
Chipset Type: | Intel C224 |
RAM | |
Installed Size: | 0 GB / 32 GB (max) |
Technology: | DDR3 SDRAM - ECC |
Form Factor: | DIMM 240-pin |
Slots: | 4 (Total) / 4 (empty) |
Features: | Unbuffered, Load-Reduced DIMM (LRDIMM) |
Hard Drive | |
Type: | No HDD |
Storage Controller | |
Type: | 1 x SATA - integrated |
Controller Interface Type: | SATA 6Gb/s |
Channel Qty: | 4 |
Storage Controller (2nd) | |
Type: | 1 x SATA - integrated |
Controller Interface Type: | SATA 3Gb/s |
Channel Qty: | 2 |
Optical Storage | |
Type: | No optical drive |
Monitor | |
Monitor Type: | None. |
Graphics Controller | |
Type: | Integrated |
Video Memory: | 16 MB DDR3 SDRAM |
Video Interfaces: | VGA |
Networking | |
Type: | Integrated |
Ethernet Ports: | 2 x Gigabit Ethernet |
Ethernet Controller: | 2 x Intel I210-AT |
Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
Remote Management Protocol: | IPMI 2.0 |
Expansion / Connectivity | |
Bays: | 4 (total) / 4 (free) x hot-swap 3.5" ¦ 1 (total) / 1 (free) x external 5.25" Slim Line |
Slots: | 1 (total) / 1 (free) x CPU ¦ 4 (total) / 4 (free) x DIMM 240-pin ¦ 1 (total) / 1 (free) x PCIe 3.0 x16 (x8 mode) |
Interfaces: | 1 x VGA ¦ 1 x serial ¦ 2 x LAN (Gigabit Ethernet) ¦ 4 x USB 2.0 (2 front, 2 rear) ¦ 2 x USB 3.0 |
Miscellaneous | |
Included Accessories: | CPU Heatsink |
Cables Included: | Serial ATA cable (4 pcs.) ¦ IDE cable |
Power | |
Device Type: | Power supply |
Voltage Required: | AC 120/230 V (50/60 Hz) |
Power Provided: | 350 Watt |
Manufacturer Warranty | |
Service & Support: | Limited warranty - 3 years |
Dimensions & Weight | |
Width: | 43.8 cm |
Depth: | 55.4 cm |
Height: | 4.5 cm |
- 3.5" fixed HDD
- 350 W fixed power supply
- Passive heatsinks
- Optical drive supported
- Intel remote management module supported
- Intel node manager
