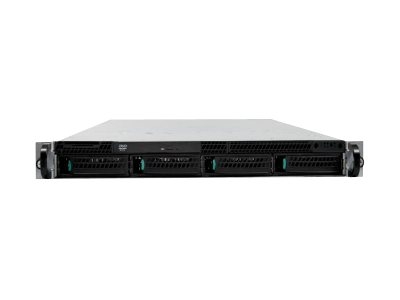

Intel Server System R1304GL4DS9 - rack-mountable - no CPU - 0 GB - no HDD
SKU R1304GL4DS9
Product Description: | Intel Server System R1304GL4DS9 - rack-mountable - no CPU - 0 GB - no HDD |
Type: | Server - rack-mountable |
Height (Rack Units): | 1U |
Server Scalability: | 2-way |
Processor: | No CPU |
Processor Socket: | LGA2011 Socket |
RAM: | 0 GB (installed) / 512 GB (max) - DDR3 SDRAM - ECC |
- Specifications
- Description
General | |
Type: | Server |
Product Form Factor: | Rack-mountable - 1U |
Server Scalability: | 2-way |
Internal Bays Qty: | 4 |
Front Accessible Bays Qty: | 1 |
Processor / Chipset | |
CPU: | No CPU |
Max CPU Qty: | 2 |
CPU Upgradability: | Upgradable |
CPU Socket: | LGA2011 Socket |
Chipset Type: | Intel C600-A |
RAM | |
Installed Size: | 0 GB / 512 GB (max) |
Technology: | DDR3 SDRAM - ECC |
Form Factor: | DIMM 240-pin |
Slots: | 16 (Total) / 16 (empty) |
Features: | Unbuffered, registered, quad channel memory architecture, Load-Reduced DIMM (LRDIMM) |
Hard Drive | |
Type: | No HDD |
Storage Controller | |
Type: | 1 x SATA - integrated |
Controller Interface Type: | SATA 6Gb/s |
Channel Qty: | 2 |
Storage Controller (2nd) | |
Type: | 1 x SAS - integrated |
Controller Interface Type: | SATA 3Gb/s / SAS |
Channel Qty: | 8 |
RAID Level: | RAID 0, RAID 1, RAID 10 |
Optical Storage | |
Type: | No optical drive |
Monitor | |
Monitor Type: | None. |
Graphics Controller | |
Type: | Integrated |
Video Memory: | 16 MB DDR3 SDRAM |
Video Interfaces: | VGA |
Networking | |
Type: | Integrated |
Ethernet Ports: | 4 x Gigabit Ethernet |
Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
Remote Management Protocol: | IPMI 2.0 |
Expansion / Connectivity | |
Bays: | 4 (total) / 4 (free) x internal 3.5" ¦ 1 (total) / 1 (free) x external 5.25" Slim Line |
Slots: | 2 (total) / 2 (free) x CPU ¦ 16 (total) / 16 (free) x DIMM 240-pin ¦ 2 (total) / 2 (free) x PCIe 3.0 x16 |
Interfaces: | 1 x VGA ¦ 2 x USB 2.0 ¦ 1 x serial ¦ 4 x LAN (Gigabit Ethernet) ¦ 1 x management |
Miscellaneous | |
Included Accessories: | 2 x CPU Heatsink |
Cables Included: | Serial ATA / SAS cable (2 pcs.) |
Power | |
Device Type: | Power supply |
Power Redundancy: | Yes |
Power Redundancy Scheme: | 1+1 |
Installed Qty: | 2 |
Max Supported Qty: | 2 |
Voltage Required: | AC 120/230 V (50/60 Hz) |
Power Provided: | 460 Watt |
Manufacturer Warranty | |
Service & Support: | Limited warranty - 3 years |
Dimensions & Weight | |
Width: | 43.8 cm |
Depth: | 55.3 cm |
Height: | 4.5 cm |
This Intel 1U server platform offers a variety of system options to meet the varied configuration requirements of high-density high-performance computing environments.
