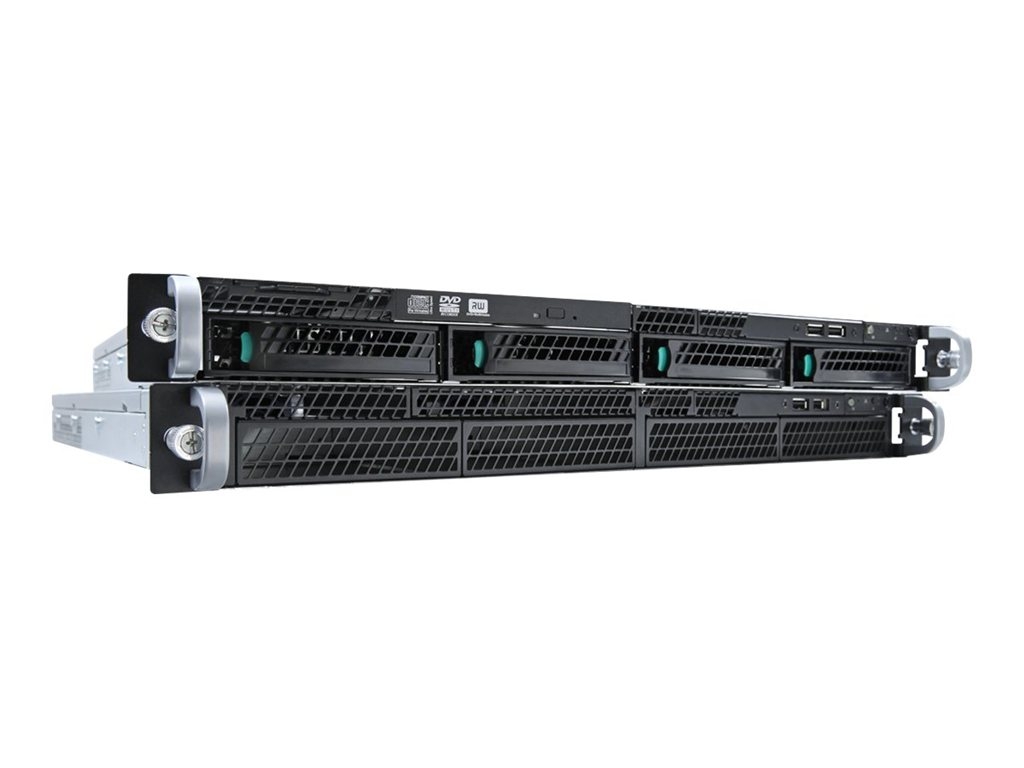

Printers & POSIntel Server System R1304BTLSFANR - rack-mountable - no CPU - 0 GB - no HDD
SKU R1304BTLSFANR
| Product Description: | Intel Server System R1304BTLSFANR - rack-mountable - no CPU - 0 GB - no HDD |
| Type: | Server - rack-mountable |
| Height (Rack Units): | 1U |
| Server Scalability: | 1-way |
| Processor: | No CPU |
| Processor Socket: | LGA1155 Socket |
| RAM: | 0 GB (installed) / 32 GB (max) - DDR3 SDRAM - ECC |
- Specifications
- Description
| General | |
| Type: | Server |
| Product Form Factor: | Rack-mountable - 1U |
| Server Scalability: | 1-way |
| Internal Bays Qty: | 4 |
| Front Accessible Bays Qty: | 1 |
| Processor / Chipset | |
| CPU: | No CPU |
| Max CPU Qty: | 1 |
| CPU Upgradability: | Upgradable |
| CPU Socket: | LGA1155 Socket |
| Chipset Type: | Intel C204 |
| RAM | |
| Installed Size: | 0 GB / 32 GB (max) |
| Technology: | DDR3 SDRAM - ECC |
| Form Factor: | DIMM 240-pin |
| Slots: | 4 (Total) / 4 (empty) |
| Features: | Unbuffered, dual channel memory architecture |
| Hard Drive | |
| Type: | No HDD |
| Storage Controller | |
| Type: | 1 x RAID - integrated |
| Controller Interface Type: | SATA 3Gb/s |
| Channel Qty: | 6 |
| RAID Level: | RAID 0, RAID 1, RAID 5, RAID 10 |
| Optical Storage | |
| Type: | No optical drive |
| Monitor | |
| Monitor Type: | None. |
| Graphics Controller | |
| Type: | Integrated |
| Graphics Processor: | ServerEngines Pilot II |
| Video Memory: | DDR2 SDRAM |
| Video Interfaces: | VGA |
| Networking | |
| Type: | Integrated |
| Ethernet Ports: | 2 x Gigabit Ethernet |
| Ethernet Controller: | Intel 82574L, Intel 82578DM |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Remote Management Protocol: | IPMI 2.0 |
| Expansion / Connectivity | |
| Bays: | 4 (total) / 4 (free) x internal 3.5" ¦ 1 (total) / 1 (free) x external 5.25" Slim Line |
| Slots: | 1 (total) / 1 (free) x CPU ¦ 4 (total) / 4 (free) x DIMM 240-pin ¦ 1 (total) / 1 (free) x PCIe 2.0 x8 |
| Interfaces: | 1 x VGA ¦ 6 x USB 2.0 (2 front, 4 rear) ¦ 1 x serial ¦ 2 x LAN (Gigabit Ethernet) |
| Miscellaneous | |
| Included Accessories: | CPU Heatsink |
| Power | |
| Device Type: | Power supply |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
| Power Provided: | 250 Watt |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 3 years |
| Dimensions & Weight | |
| Width: | 43.8 cm |
| Depth: | 55.3 cm |
| Height: | 4.5 cm |
An entry-level family of general-purpose server products designed for small to medium-sized business applications, including 1U rack systems supporting advanced management features and rich I/O. The Intel Server Systems R1304BTL represents the 1U rack-optimized system solutions from Intel. It provides higher flexibility in data storage and security.
- Space-saving 21.8" chassis depth
- One half height PCI Express 2.0 x 8 through riser card
- Highly-flexible network and storage configurations
The technical details come from 3rd party. edgemo is not responsible for any errors.
