Intel Server System R1208WTTGSR - rack-mountable - no CPU - 0 GB - no HDD
SKU R1208WTTGSR
Product Description: | Intel Server System R1208WTTGSR - rack-mountable - no CPU - 0 GB - no HDD |
Type: | Server - rack-mountable |
Height (Rack Units): | 1U |
Server Scalability: | 2-way |
Processor: | No CPU |
Processor Socket: | LGA2011-v3 Socket |
RAM: | 0 GB (installed) / 1536 GB (max) - DDR4 SDRAM - ECC |
- Specifications
- Description
General | |
Type: | Server |
Product Form Factor: | Rack-mountable - 1U |
Embedded Security: | Trusted Platform Module (TPM 2.0) Security Chip |
Server Scalability: | 2-way |
Front Accessible Bays Qty: | 8 |
Hot-Swap Bays Qty: | 8 |
Processor / Chipset | |
CPU: | No CPU |
Max CPU Qty: | 2 |
CPU Upgradability: | Upgradable |
CPU Socket: | LGA2011-v3 Socket |
Chipset Type: | Intel C612 |
RAM | |
Installed Size: | 0 GB / 1536 GB (max) |
Technology: | DDR4 SDRAM - ECC |
Form Factor: | DIMM 288-pin |
Slots: | 24 (Total) / 24 (empty) |
Hard Drive | |
Type: | No HDD |
Storage Controller | |
Type: | 1 x RAID |
Controller Interface Type: | SATA 6Gb/s / SAS 12Gb/s |
Channel Qty: | 10 |
RAID Level: | RAID 0, RAID 1, RAID 10 |
Optical Storage | |
Type: | No optical drive |
Monitor | |
Monitor Type: | None. |
Graphics Controller | |
Type: | Integrated |
Video Interfaces: | VGA |
Networking | |
Ethernet Ports: | 2 x 10 Gigabit Ethernet |
Ethernet Controller: | Intel X540 |
Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet |
Remote Management Protocol: | IPMI 2.0 |
Remote Management Controller: | Emulex Pilot 3 iBMC |
Expansion / Connectivity | |
Bays: | 8 (total) / 8 (free) x hot-swap 2.5" |
Slots: | 2 (total) / 2 (free) x CPU ¦ 24 (total) / 24 (free) x DIMM 288-pin ¦ 1 (total) / 1 (free) x PCIe 3.0 x4 ¦ 1 (total) / 1 (free) x PCIe 3.0 x8 ¦ 2 (total) / 2 (free) x PCIe 3.0 x16 |
Interfaces: | 1 x VGA ¦ 8 x USB 3.0 ¦ 2 x LAN (10Gigabit Ethernet) - RJ-45 ¦ 2 x serial - RJ-45 |
Miscellaneous | |
Included Accessories: | 2 x CPU Heatsink, 2 x riser cards |
Cables Included: | Mini SAS HD cable (2 pcs.) |
Power | |
Device Type: | Power supply - hot-plug |
Power Redundancy: | Optional |
Power Redundancy Scheme: | 1+1 (with optional power supply) |
Installed Qty: | 1 |
Max Supported Qty: | 2 |
Voltage Required: | AC 120/230 V (50/60 Hz) |
Power Provided: | 750 Watt |
Manufacturer Warranty | |
Service & Support: | Limited warranty - 3 years |
Dimensions & Weight | |
Width: | 43 cm |
Depth: | 71 cm |
Height: | 4.37 cm |

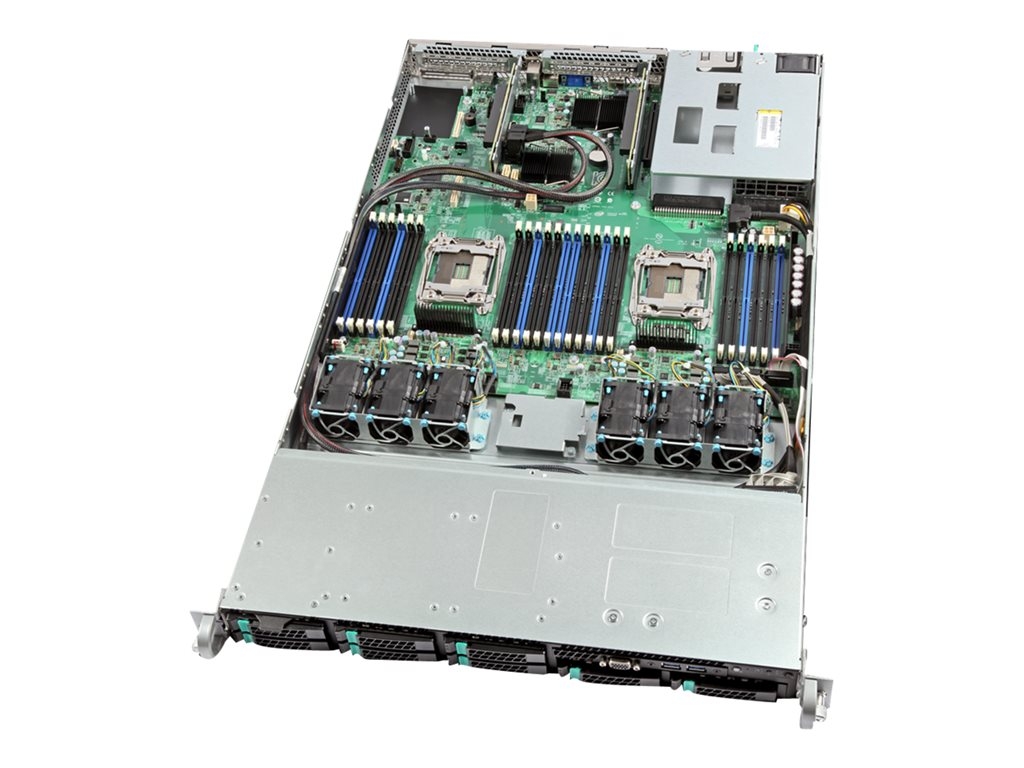

Integrated 1U system featuring Intel Server Board S2600WTTR supporting eight 2.5 inch hot-swap drives, dual 10-GbE LAN, 24 DIMMs, one 750 W redundant-capable power supply, enterprise class I/O, with built in discrete management network interface.
The technical details come from 3rd party. edgemo is not responsible for any errors.
