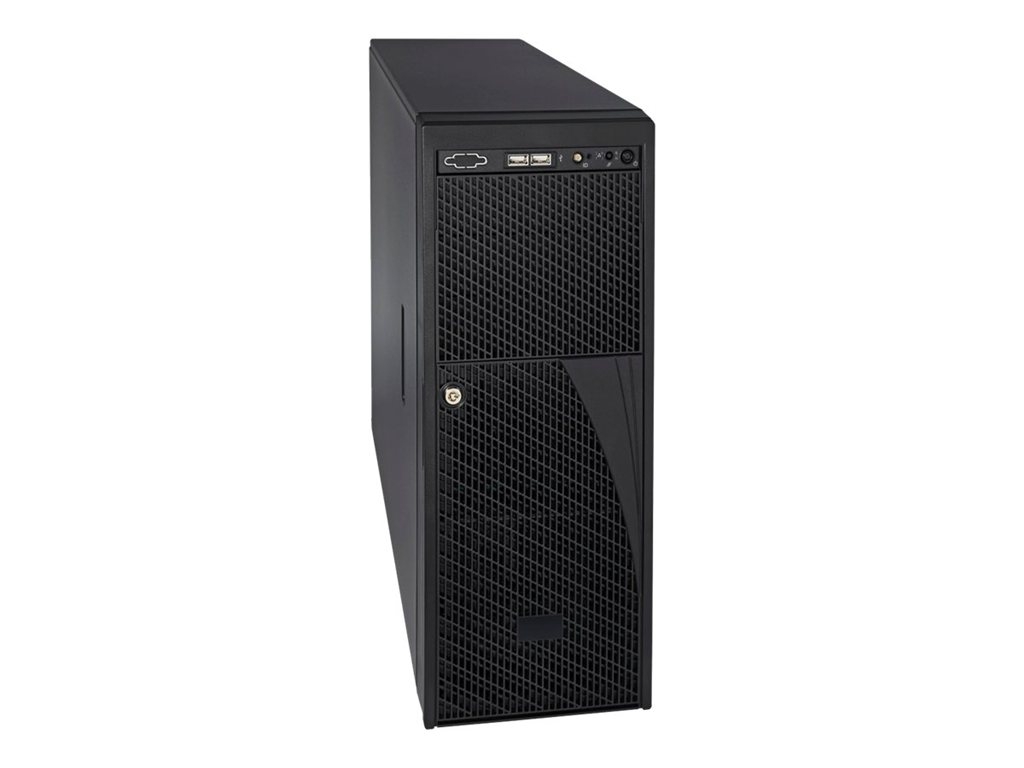

Intel Server System P4308SC2MHGC - tower - no CPU - 0 GB - no HDD
SKU P4308SC2MHGC
Product Description: | Intel Server System P4308SC2MHGC - tower - no CPU - 0 GB - no HDD |
Type: | Server - tower - software RAID 0/1/10/5 |
Height (Rack Units): | 4U |
Server Scalability: | 2-way |
Processor: | No CPU |
Processor Socket: | LGA1356 Socket |
RAM: | 0 GB (installed) / 384 GB (max) - DDR3 SDRAM - ECC |
- Specifications
- Description
General | |
Type: | Server |
Product Form Factor: | Tower - 4U |
Server Scalability: | 2-way |
Hot-Swap Bays Qty: | 8 |
Processor / Chipset | |
CPU: | No CPU |
Max CPU Qty: | 2 |
CPU Upgradability: | Upgradable |
CPU Socket: | LGA1356 Socket |
Chipset Type: | Intel C602-A |
RAM | |
Installed Size: | 0 GB / 384 GB (max) |
Technology: | DDR3 SDRAM - ECC |
Form Factor: | DIMM 240-pin |
Slots: | 8 (Total) / 8 (empty) |
Features: | Unbuffered, registered, Load-Reduced DIMM (LRDIMM) |
Hard Drive | |
Type: | No HDD |
Storage Controller | |
Type: | 1 x SATA - integrated |
Controller Interface Type: | SATA 6Gb/s |
Channel Qty: | 2 |
Storage Controller (2nd) | |
Type: | 1 x SAS - integrated |
Controller Interface Type: | SATA 3Gb/s / SAS |
Channel Qty: | 8 |
Optical Storage | |
Type: | No optical drive |
Monitor | |
Monitor Type: | None. |
Graphics Controller | |
Type: | Integrated |
Graphics Processor: | ServerEngines Pilot III |
Video Memory: | 16 MB |
Video Interfaces: | VGA |
Networking | |
Type: | Integrated |
Ethernet Ports: | 2 x Gigabit Ethernet |
Ethernet Controller: | Intel 82574L |
Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
Expansion / Connectivity | |
Bays: | 8 (total) / 8 (free) x hot-swap 3.5" ¦ 3 (total) / 3 (free) x external 5.25" x 1/2H |
Slots: | 2 (total) / 2 (free) x CPU ¦ 8 (total) / 8 (free) x DIMM 240-pin ¦ 1 (total) / 1 (free) x PCIe 3.0 x16 ¦ 1 (total) / 1 (free) x PCIe 3.0 x8 ¦ 1 (total) / 1 (free) x PCIe 2.0 x8 (x4 mode) ¦ 1 (total) / 1 (free) x PCIe 3.0 x8 (x4 mode) |
Interfaces: | 1 x VGA ¦ 5 x USB 2.0 (1 front, 4 rear) ¦ 1 x serial ¦ 2 x LAN (Gigabit Ethernet) |
Miscellaneous | |
Included Accessories: | 2 x CPU Heatsink, air duct |
Features: | Software RAID 0/1/10/5 |
Power | |
Device Type: | Power supply |
Power Redundancy: | Yes |
Power Redundancy Scheme: | 1+1 |
Installed Qty: | 2 |
Max Supported Qty: | 2 |
Voltage Required: | AC 120/230 V (50/60 Hz) |
Power Provided: | 750 Watt |
Manufacturer Warranty | |
Service & Support: | Limited warranty - 3 years |
Dimensions & Weight | |
Width: | 17.3 cm |
Depth: | 68.4 cm |
Height: | 43.8 cm |
The Intel Server System P4300SC supports 8 3.5" hot-swap HDD. Integrated dual 1GbE NICS and a dedicated management NIC via the included Intel RMM4 provide affordable enterprise class manageability and connectivity to the P4300SC.
- Sleek 4 U pedestal (rackable) barebone system
- 8 memory sockets support LR/U/R-DIMMs
- Five redundant fans for enterprise-level cooling
