Intel Server System P4308CP4MHGC - tower - no CPU - 0 GB - no HDD

SKU P4308CP4MHGC

Product Description:	Intel Server System P4308CP4MHGC - tower - no CPU - 0 GB - no HDD
Type:	Server - tower
Height (Rack Units):	4U
Server Scalability:	2-way
Processor:	No CPU
Processor Socket:	LGA2011 Socket
RAM:	0 GB (installed) / 500 GB (max) - DDR3 SDRAM - ECC

09-05-2024

Specifications
Description
Accessories

General
Type:	Server
Product Form Factor:	Tower - 4U
Server Scalability:	2-way
Hot-Swap Bays Qty:	8

Processor / Chipset
CPU:	No CPU
Max CPU Qty:	2
CPU Upgradability:	Upgradable
CPU Socket:	LGA2011 Socket
Chipset Type:	Intel C600-A

RAM
Installed Size:	0 GB / 500 GB (max)
Technology:	DDR3 SDRAM - ECC
Form Factor:	DIMM 240-pin
Slots:	16 (Total) / 16 (empty)
Features:	Unbuffered, registered, Load-Reduced DIMM (LRDIMM)

Hard Drive
Type:	No HDD

Storage Controller
Type:	1 x SATA - integrated
Controller Interface Type:	SATA 6Gb/s
Channel Qty:	2

Storage Controller (2nd)
Type:	1 x SAS - integrated
Controller Interface Type:	SATA 3Gb/s / SAS
Channel Qty:	8
RAID Level:	RAID 0, RAID 1, RAID 10

Optical Storage
Type:	No optical drive

Monitor
Monitor Type:	None.

Graphics Controller
Type:	Integrated
Graphics Processor:	Matrox G200
Video Interfaces:	VGA

Networking
Type:	Integrated
Ethernet Ports:	4 x Gigabit Ethernet
Ethernet Controller:	Intel I350
Data Link Protocol:	Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol:	IPMI 2.0

Expansion / Connectivity
Bays:	8 (total) / 8 (free) x hot-swap 3.5" ¦ 3 (total) / 3 (free) x external 5.25" x 1/2H
Slots:	2 (total) / 2 (free) x CPU ¦ 16 (total) / 16 (free) x DIMM 240-pin ¦ 1 (total) / 1 (free) x PCIe 3.0 x16 ¦ 5 (total) / 5 (free) x PCIe 3.0 x8
Interfaces:	1 x VGA ¦ 5 x USB 2.0 (1 front, 4 rear) ¦ 1 x serial ¦ 4 x LAN (Gigabit Ethernet)

Miscellaneous
Included Accessories:	2 x CPU Heatsink, air duct

Power
Device Type:	Power supply - hot-plug
Power Redundancy:	Yes
Power Redundancy Scheme:	1+1
Installed Qty:	2
Max Supported Qty:	2
Voltage Required:	AC 120/230 V (50/60 Hz)
Power Provided:	750 Watt

Manufacturer Warranty
Service & Support:	Limited warranty - 3 years

Dimensions & Weight
Width:	17.3 cm
Depth:	68.4 cm
Height:	43.8 cm

vis mere

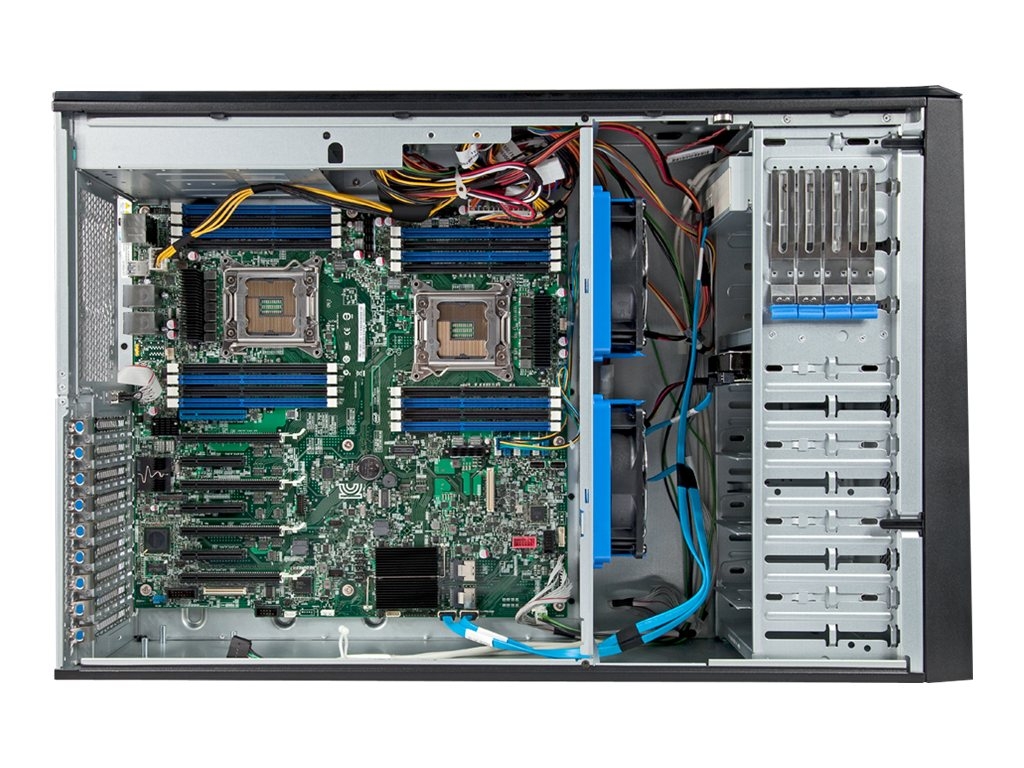

The Intel Server System P4300CP family is an integrated 4U pedestal system with a variety of storage and power supply options. The Intel Server System P4300CP features the Intel Server Board S2600CP for powerful performance and flexible feature advantages specific to the small and medium business and storage segments.
The P4300CP makes use of several exclusive Intel Server Board technologies. The Intel Advanced Management technology helps simplify and optimize system management for high capacity and secure platform management. Intel Quiet Thermal technology provides thermal and acoustic management to reduce unnecessary noise and provide cooling flexibility while maximizing system efficiency. This board also makes use of power delivery enhancements from the Intel Efficient Power technology to help improve power efficiency and reliability.

Eight 3.5" hot-swap drives
Six PCIe Gen3 slots
16 memory sockets support LR/U/R-DIMMs
Intel quad Gigabit Ethernet with Intel Virtualization technology
Onboard flash boot support includes eUSB SSD and SATA DOM

The technical details come from 3rd party. edgemo is not responsible for any errors.
