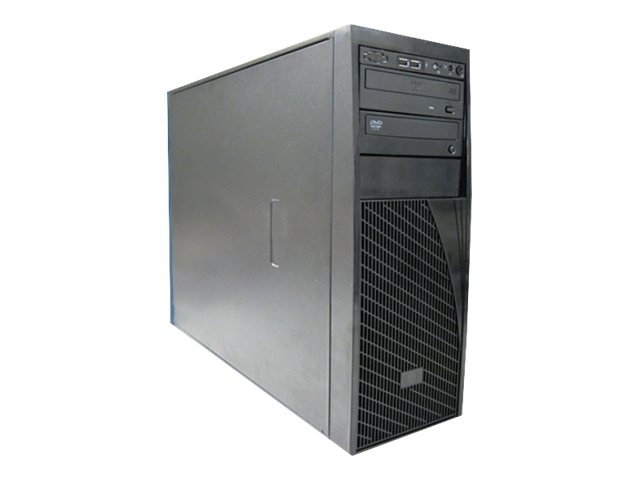

Intel Server System P4208IP4LHGC - tower - no CPU - 0 GB - no HDD

SKU P4208IP4LHGC

Product Description:	Intel Server System P4208IP4LHGC - tower - no CPU - 0 GB - no HDD
Type:	Server - tower
Height (Rack Units):	4U
Server Scalability:	2-way
Processor:	No CPU
Processor Socket:	LGA2011 Socket
RAM:	0 GB (installed) / 512 GB (max) - DDR3 SDRAM - ECC

09-05-2024

Specifications
Description
Accessories

General
Type:	Server
Product Form Factor:	Tower - 4U
Server Scalability:	2-way
Hot-Swap Bays Qty:	8

Processor / Chipset
CPU:	No CPU
Max CPU Qty:	2
CPU Upgradability:	Upgradable
CPU Socket:	LGA2011 Socket
Chipset Type:	Intel C600-A

RAM
Installed Size:	0 GB / 512 GB (max)
Technology:	DDR3 SDRAM - ECC
Form Factor:	DIMM 240-pin
Slots:	16 (Total) / 16 (empty)
Features:	Unbuffered, registered, Load-Reduced DIMM (LRDIMM)

Hard Drive
Type:	No HDD

Storage Controller
Type:	1 x SATA - integrated
Controller Interface Type:	SATA 6Gb/s
Channel Qty:	2

Storage Controller (2nd)
Type:	1 x SAS - integrated
Controller Interface Type:	SATA 3Gb/s / SAS
Channel Qty:	8
RAID Level:	RAID 0, RAID 1, RAID 5, RAID 10

Optical Storage
Type:	No optical drive

Monitor
Monitor Type:	None.

Graphics Controller
Type:	Integrated
Graphics Processor:	Matrox G200
Video Interfaces:	VGA

Networking
Type:	Integrated
Ethernet Ports:	4 x Gigabit Ethernet
Ethernet Controller:	Intel I350
Data Link Protocol:	Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol:	IPMI 2.0

Expansion / Connectivity
Bays:	8 (total) / 8 (free) x hot-swap 3.5" ¦ 3 (total) / 3 (free) x external 5.25" x 1/2H
Slots:	2 (total) / 2 (free) x CPU ¦ 16 (total) / 16 (free) x DIMM 240-pin ¦ 1 (total) / 1 (free) x PCIe 3.0 x16 ¦ 6 (total) / 6 (free) x PCIe 3.0 x8 ¦ 1 (total) / 1 (free) x PCIe 2.0 x8 (x4 mode)
Interfaces:	1 x VGA ¦ 5 x USB 2.0 (1 front, 4 rear) ¦ 1 x serial ¦ 4 x LAN (Gigabit Ethernet)

Miscellaneous
Included Accessories:	2 x CPU Heatsink, air duct

Power
Device Type:	Power supply - hot-plug
Power Redundancy:	Yes
Power Redundancy Scheme:	1+1
Installed Qty:	2
Max Supported Qty:	2
Voltage Required:	AC 120/230 V (50/60 Hz)
Power Provided:	750 Watt

Manufacturer Warranty
Service & Support:	Limited warranty - 3 years

Dimensions & Weight
Width:	17.3 cm
Depth:	68.3 cm
Height:	43.8 cm

vis mere

The Intel Server System P4200IP family provides unsurpassed I/O capacity by exposing all 80 lanes of PCIe Gen3 available in the chipset to offer eight single-width or four double-width card support in addition to a full range of SAS RAID and Intel I/O expansion module options.

Redundant cooling
Platinum efficiency common redundant power supplies
Supports up to three full-size 5.25" optical devices
16 memory sockets support LR/U/R-DIMMs
Up to eight single-width PCIe Gen3 slots or four double-width adapters for maximum I/O capacity/flexibility
Onboard flash boot support includes eUSB SSD and SATA DOM
Intel Trusted Platform Module (Intel TPM) header for Intel Trusted Execution Technology (Intel TXT) support

The technical details come from 3rd party. edgemo is not responsible for any errors.
