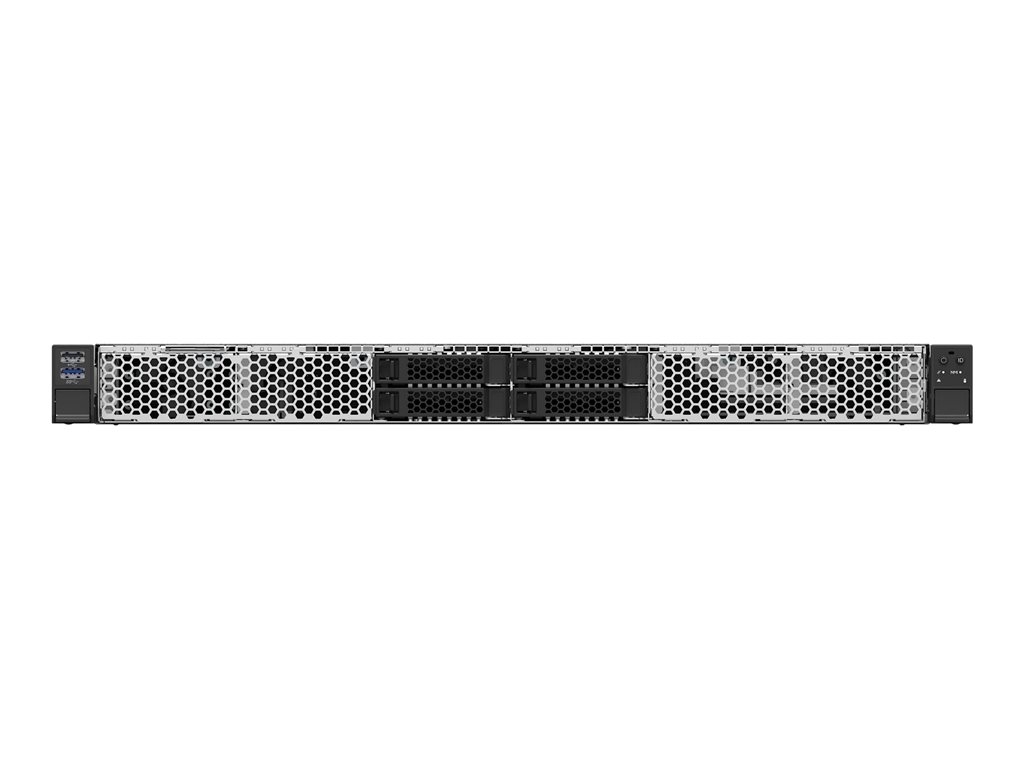

Printers & POSIntel Server System M50CYP1UR204 - rack-mountable no CPU - 0 GB - no HDD
SKU M50CYP1UR204
| Product Description: | Intel Server System M50CYP1UR204 - rack-mountable no CPU - 0 GB - no HDD |
| Type: | Server - rack-mountable |
| Height (Rack Units): | 1U |
| Processor: | No CPU |
| Processor Socket: | Socket P4 |
| RAM: | 0 GB (installed) / 12 TB (max) - DDR4 SDRAM |
| Storage Controller: | RAID |
- Specifications
- Description
| General | |
| Type: | Server |
| Product Form Factor: | Rack-mountable - 1U |
| Embedded Security: | Trusted Platform Module (TPM 2.0) Security Chip |
| Internal Bays Qty: | 4 |
| Hot-Swap Bays Qty: | 4 |
| Processor / Chipset | |
| CPU: | No CPU |
| Max CPU Qty: | 2 |
| CPU Upgradability: | Upgradable |
| CPU Socket: | Socket P4 |
| Chipset Type: | Intel C621A |
| RAM | |
| Installed Size: | 0 GB (installed) / 12 TB (max) |
| Technology: | DDR4 SDRAM |
| Form Factor: | DIMM 288-pin |
| Slots: | 16 (Total) |
| Features: | Load-Reduced DIMM (LRDIMM) |
| Hard Drive | |
| Type: | No HDD |
| Storage Controller | |
| Type: | RAID |
| RAID Level: | RAID 0, RAID 1, RAID 10, RAID 5 |
| Optical Storage | |
| Type: | No optical drive |
| Monitor | |
| Monitor Type: | None. |
| Expansion / Connectivity | |
| Bays: | 4 (total) / 4 (free) x hot-swap 2.5" |
| Interfaces: | 3 x USB 3.0 (1 front, 3 rear) ¦ 2 x USB 2.0 (1 internal) ¦ 2 x serial |
| Miscellaneous | |
| Included Accessories: | Intel Server Board M50CYP2SB1U, Chassis with Quick Reference Label affixed to top cover, 16 x DIMM slot blanks, 2 x processor carrier clips, 8 x 1U spare fan kit, 2 x EVAC heatsinks, 1U Spare PCIe Riser, front I/O panel assembly |
| Cables Included: | I2C cable ¦ Power splitter cable |
| Power | |
| Device Type: | Power supply |
| Installed Qty: | 0 |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 3 years |
| Dimensions & Weight | |
| Width: | 78.1 cm |
| Depth: | 43.8 cm |
| Height: | 4.3 cm |
| Weight: | 14.18 kg |
| Dimensions & Weight (Shipping) | |
| Shipping Width: | 99.4 cm |
| Shipping Depth: | 59.2 cm |
| Shipping Height: | 30 cm |
| Shipping Weight: | 21.15 kg |
The Intel Server System M50CYP1UR family is a purpose-built system that delivers power and performance at peak efficiency in a 1U rack mount server form factor. The system provides high memory bandwidth and capacity of up to 32 DDR4 DIMMs for memory intensive workloads. The system has high memory capacity, high-speed networking, and I/O flexibility. These capabilities are combined with an innovative design to provide a reliable server system for business IT, appliance, data center, cloud and high-performance computing applications.
- Supports dual CPUs for enhanced processing power
- Up to 16 DDR4 DIMM slots for extensive memory capacity
- Four hot-swap and four internal bays for flexible storage solutions
- RAID 0, 1, 10, and 5 support for data protection and performance
- Trusted Platform Module (TPM 2.0) for advanced security
The technical details come from 3rd party. edgemo is not responsible for any errors.
