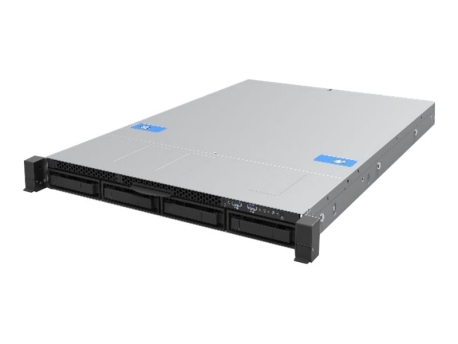

Intel Server System M20NTP1UR304 - rack-mountable no CPU - 0 GB - no HDD
SKU M20NTP1UR304
Product Description: | Intel Server System M20NTP1UR304 - rack-mountable no CPU - 0 GB - no HDD |
Type: | Server - rack-mountable |
Height (Rack Units): | 1U |
Processor: | No CPU |
Processor Socket: | LGA4189 Socket |
RAM: | 0 GB DDR4 SDRAM |
Storage Controller: | RAID (SATA 6Gb/s) |
- Specifications
- Description
General | |
Type: | Server |
Product Form Factor: | Rack-mountable - 1U |
Embedded Security: | Trusted Platform Module (TPM 2.0) Security Chip |
Internal Bays Qty: | 2 |
Front Accessible Bays Qty: | 4 |
Hot-Swap Bays Qty: | 4 |
Processor / Chipset | |
CPU: | No CPU |
Max CPU Qty: | 2 |
CPU Upgradability: | Upgradable |
CPU Socket: | LGA4189 Socket |
Chipset Type: | Intel C621A |
RAM | |
Installed Size: | 0 GB |
Technology: | DDR4 SDRAM |
Form Factor: | DIMM 288-pin |
Slots: | 16 (Total) |
Features: | Load-Reduced DIMM (LRDIMM) |
Hard Drive | |
Type: | No HDD |
Storage Controller | |
Type: | RAID |
Controller Interface Type: | SATA 6Gb/s |
RAID Level: | RAID 0, RAID 1, RAID 5, RAID 10 |
Optical Storage | |
Type: | No optical drive |
Monitor | |
Monitor Type: | None. |
Networking | |
Remote Management Protocol: | IPMI 2.0 |
Features: | Integrated BMC with IPMI, Intel Advanced Management Technology, Intel Server Customization Technology |
Expansion / Connectivity | |
Bays: | 4 (total) / 4 (free) x hot-swap 2.5" / 3.5" shared ¦ 1 (total) / 1 (free) x internal |
Slots: | 2 (total) / 2 (free) x PCIe 3.0 x16 |
Interfaces: | 5 x USB 3.0 (2 front, 2 rear, 1 internal) ¦ 2 x serial |
Miscellaneous | |
Included Accessories: | Air duct, power distribution board, 6 x system fans, 2 x 1U PCIe x16 riser card, 2 x processor carrier clips, Intel Server Board M20NTP2SB, 4 drive carrier assemblies, 4 x 3.5" SATA/SAS/NVMe backplanes, 2 processor socket covers, 14 DIMM slot blanks, M.2 SSD retention clip, 4 mounting screws |
Cables Included: | USB cable ¦ Control cable ¦ Backplane cable ¦ Mini SAS HD cable |
Power | |
Device Type: | Power supply |
Installed Qty: | 1 |
Voltage Required: | AC 100-240 V |
Power Provided: | 750 Watt |
Manufacturer Warranty | |
Service & Support: | Limited warranty - 3 years |
Dimensions & Weight | |
Width: | 66.13 cm |
Depth: | 43.85 cm |
Height: | 4.34 cm |
The Intel Server System M20NTP1UR304 stands out as a robust, rack-mountable server solution designed to meet the needs of modern data centers and businesses. With support for up to two processors, this server offers scalable performance to handle a variety of workloads. It features 16 DIMM slots for DDR4 memory, enabling substantial memory capacity for demanding applications. Storage flexibility is a key advantage, with support for both 2.5" and 3.5" drives, providing options for hot-swap and internal storage configurations. Advanced management technologies, including Intel Advanced Management Technology and an integrated BMC with IPMI, facilitate efficient remote management. The inclusion of a Trusted Platform Module (TPM 2.0) ensures secure operations, making it an ideal choice for organizations prioritizing data security. With a 750 W power supply, it delivers reliable power for all operational needs. Whether deploying virtualized environments, high-performance computing, or storage applications, the Intel Server System M20NTP1UR304 offers the flexibility, security, and performance required for critical business tasks.
- Supports up to 2 CPUs for scalable processing power
- 16 DIMM slots supporting DDR4 SDRAM for extensive memory capacity
- RAID support for enhanced data protection and performance
- Trusted Platform Module (TPM 2.0) for secure operations
- Intel C621A chipset for reliable and efficient system performance
The technical details come from 3rd party. edgemo is not responsible for any errors.
