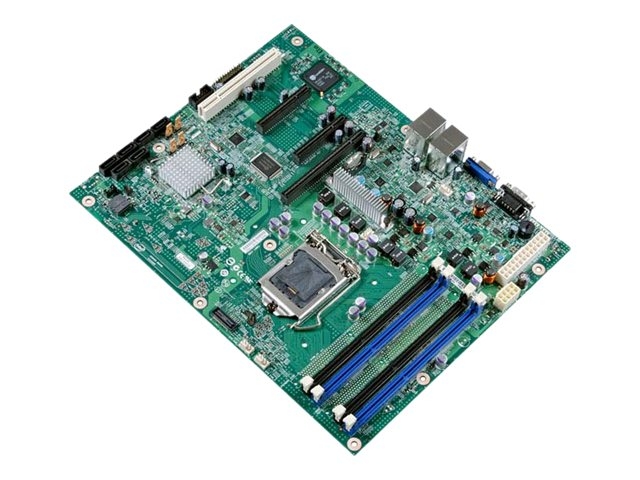

Printers & POSIntel Server Board S3420GPV - motherboard - ATX - LGA1156 Socket - i3420
SKU S3420GPV
| Product Description: | Intel Server Board S3420GPV - motherboard - ATX - LGA1156 Socket - i3420 |
| Product Type: | Motherboard - ATX |
| Chipset Type: | Intel 3420 |
| Processor Socket: | 1 x LGA1156 Socket |
| Compatible Processors: | Quad-Core Xeon 3400 series, Core i3 |
| Max RAM Size: | 16 GB |
| RAM Supported: | 6 DIMM slots - DDR3, ECC, unbuffered |
- Specifications
- Description
| General | |
| Product Type: | Motherboard - ATX |
| Chipset Type: | Intel 3420 |
| Processor Socket: | LGA1156 Socket |
| Max Processors Qty: | 1 |
| Compatible Processors: | Quad-Core Xeon 3400 series, Core i3 |
| Supported RAM | |
| Max Size: | 16 GB |
| Technology: | DDR3 |
| Supported RAM Integrity Check: | ECC |
| Registered or Buffered: | Unbuffered |
| LAN | |
| Network Controller: | Intel 82574L |
| Network Interfaces: | 2 x Gigabit Ethernet |
| Expansion / Connectivity | |
| Expansion Slots: | 1 x CPU ¦ 4 x DIMM 240-pin ¦ 1 x PCIe 2.0 x8 ¦ 1 x PCIe 2.0 x8 ¦ 1 x PCI (5 V) ¦ 1 x PCIe x4 |
| Storage Interfaces: | SATA-300 -connectors: 2 x 7pin Serial ATA - 6 devices - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
| Interfaces: | 1 x USB 2.0 ¦ 2 x LAN (Gigabit Ethernet) ¦ 1 x VGA |
| Features | |
| BIOS Type: | Intel |
| Miscellaneous | |
| Width: | 30.5 cm |
| Depth: | 24.4 cm |
| Environmental Standards | |
| ENERGY STAR Certified: | Yes |
Growing businesses need a reliable server solution for web servers, file and print servers, e-mail servers, storage servers and vertical-specific business applications. A general-purpose entry server platform plays a fundamental role in the success of a workgroup, department, and small- to medium- sized business or high performance computing (HPC). The Intel Server Board S3420GP provides server-class performance without sacrificing cost-effectiveness or reliability.
- Intel Xeon processor 3400 series
- Intel 3420 Chipset
- 6 DIMM slots for DDR3 1066/1333 MHz
- Dual Intel Gigabit Ethernet connections
- Expandable I/O architecture with PCI Express 2.0
- Integrated manageability
- 6 SATA ports at 3.0Gbps with embedded RAID 0, 1, 5, and 10
The technical details come from 3rd party. edgemo is not responsible for any errors.
