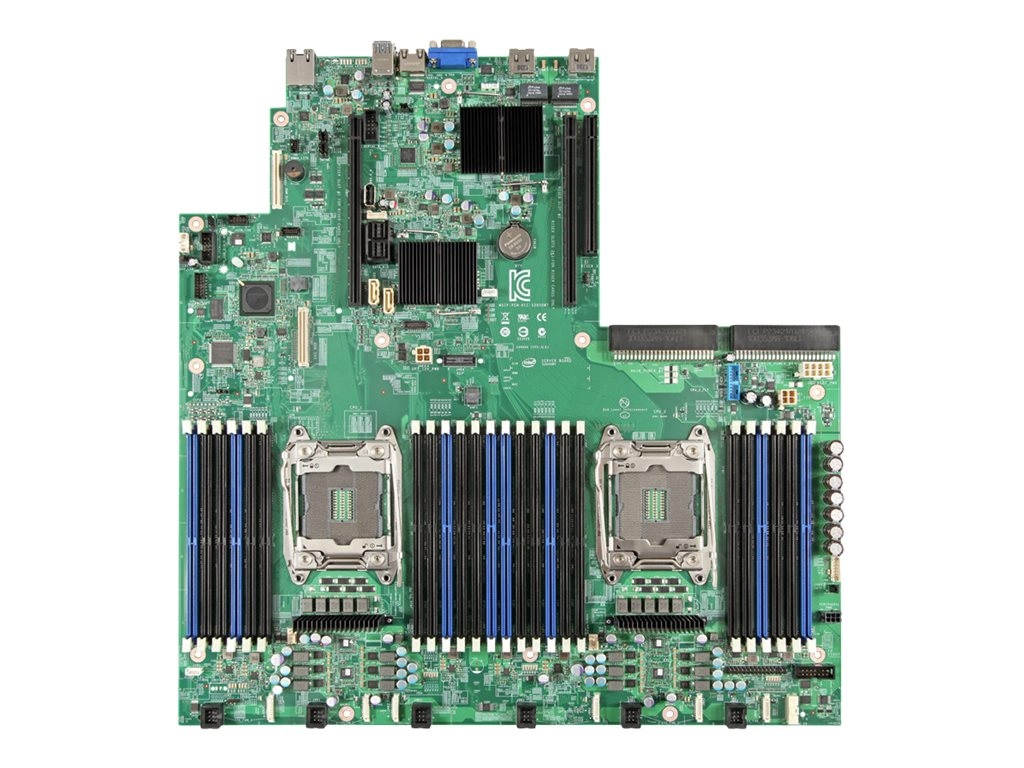

Printers & POSIntel Server Board S2600WTTS1R - motherboard - LGA2011-v3 Socket - C612
SKU S2600WTTS1R
| Product Description: | Intel Server Board S2600WTTS1R - motherboard - LGA2011-v3 Socket - C612 |
| Product Type: | Motherboard |
| Chipset Type: | Intel C612 |
| Processor Socket: | 2 x LGA2011-v3 Socket |
| Compatible Processors: | Xeon E5-2600 v3 series, Xeon E5-2600 v4 series (Maximum TDP 145 Watt) |
| RAM Supported: | 24 DIMM slots - DDR4, ECC, registered, Load-Reduced |
| Storage Ports: | 10 x SATA-600 |
- Specifications
- Description
| General | |
| Product Type: | Motherboard |
| Chipset Type: | Intel C612 |
| Processor Socket: | LGA2011-v3 Socket |
| Max Processors Qty: | 2 |
| Compatible Processors: | Xeon E5-2600 v3 series, Xeon E5-2600 v4 series (Maximum TDP 145 Watt) |
| Supported RAM | |
| Technology: | DDR4 |
| Bus Clock: | 2400 MHz, 1600 MHz, 1866 MHz, 2133 MHz |
| Supported RAM Integrity Check: | ECC |
| Registered or Buffered: | Registered, Load-Reduced |
| Graphics | |
| Dedicated Video Memory: | 16 MB DDR3 SDRAM |
| LAN | |
| Network Controller: | Intel X540 |
| Network Interfaces: | 2 x 10 Gigabit Ethernet |
| Expansion / Connectivity | |
| Expansion Slots: | 2 x CPU ¦ 24 x DIMM 288-pin (1.2 V) ¦ 1 x PCIe 3.0 x24 ¦ 1 x PCIe 3.0 x8 (low-profile) |
| Storage Interfaces: | Intel C612: SATA-600 -connectors: 2 x 7pin Serial ATA ¦ Intel C612: SATA-600 -connectors: 2 x mini-SAS HD |
| RAID Features: | Software RAID 0/ 1 / 10 |
| Interfaces: | 1 x management ¦ 1 x serial ¦ 3 x USB 3.0 ¦ 1 x VGA ¦ 2 x LAN (10Gigabit Ethernet) |
| Internal Interfaces: | 1 x USB 2.0 - Type A ¦ 2 x USB 2.0 - header ¦ 2 x USB 3.0 - header ¦ 1 x serial |
| Features | |
| BIOS Type: | Intel |
| BIOS Features: | IPMI 2.0 support |
| Hardware Features: | Trusted Platform Module (TPM) 1.2 |
| Miscellaneous | |
| Width: | 42.4 cm |
| Depth: | 43.2 cm |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 3 years |
Intel S2600WT product family delivers power and performance at peak efficiency and features energy-efficient processors. High memory capacity, networking, storage and I/O flexibility combine with innovative design to provide an exceptional and reliable server for business IT, appliance, data center, cloud and high-performance computing applications.
- Compute performance and high efficiency
- Built with high reliability and performance
