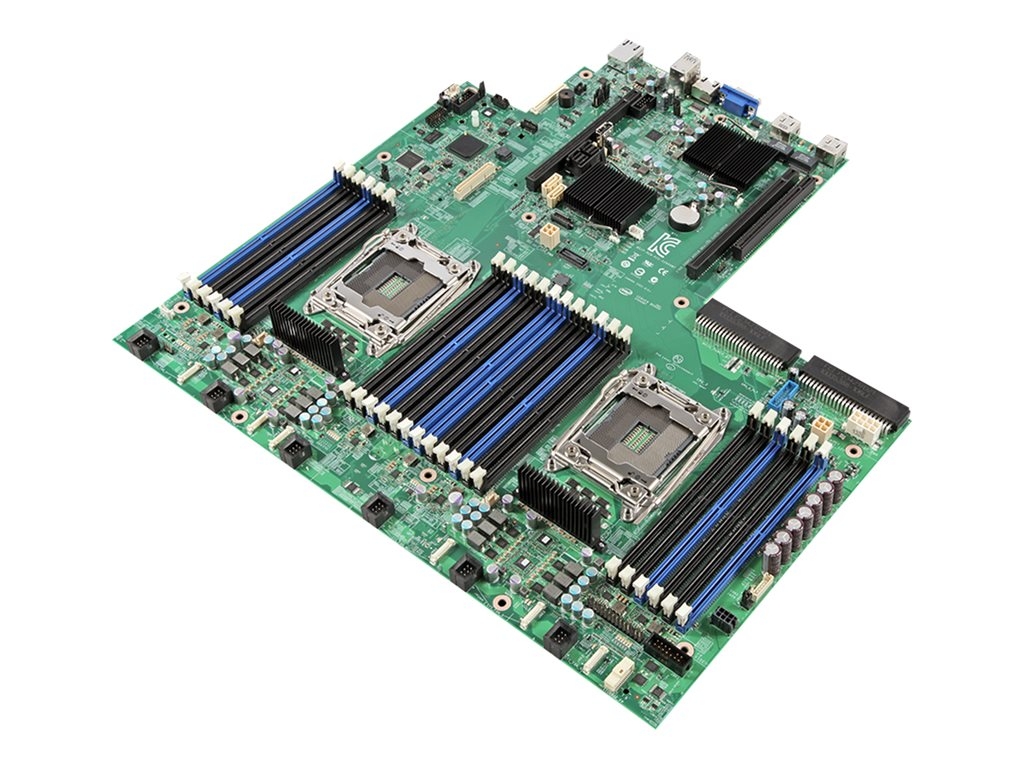

Intel Server Board S2600WTTR - motherboard - LGA2011-v3 Socket - C612
SKU S2600WTTR
Product Description: | Intel Server Board S2600WTTR - motherboard - LGA2011-v3 Socket - C612 |
Product Type: | Motherboard |
Chipset Type: | Intel C612 |
Processor Socket: | 2 x LGA2011-v3 Socket |
Compatible Processors: | Xeon E5-2600 v3 series (supports CPUs with up to 18 cores, Maximum TDP 145 Watt) |
Max RAM Size: | 1536 GB |
RAM Supported: | 24 DIMM slots - DDR4, ECC, registered, Load-Reduced |
- Specifications
- Description
General | |
Product Type: | Motherboard |
Chipset Type: | Intel C612 |
Processor Socket: | LGA2011-v3 Socket |
Max Processors Qty: | 2 |
Compatible Processors: | Xeon E5-2600 v3 series (supports CPUs with up to 18 cores, Maximum TDP 145 Watt) |
Supported RAM | |
Max Size: | 1536 GB |
Technology: | DDR4 |
Bus Clock: | 1600 MHz, 1866 MHz, 2133 MHz |
Supported RAM Integrity Check: | ECC |
Registered or Buffered: | Registered, Load-Reduced |
Features: | 8-channel memory architecture |
LAN | |
Network Controller: | Intel X540 |
Network Interfaces: | 2 x 10 Gigabit Ethernet |
Expansion / Connectivity | |
Expansion Slots: | 2 x CPU ¦ 24 x DIMM 288-pin (1.2 V) ¦ 2 x PCIe 3.0 x24 (riser card only) ¦ 1 x PCIe 3.0 x8 (riser card only) |
Storage Interfaces: | SATA-600 -connectors: 10 x 7pin SATA - 10 devices - RAID 0 / RAID 1 / RAID 10 |
RAID Features: | Intel Rapid Storage Technology |
Interfaces: | 1 x VGA ¦ 1 x serial ¦ 2 x LAN (10Gigabit Ethernet) ¦ 5 x USB 3.0 ¦ 1 x USB 2.0 |
Internal Interfaces: | 1 x USB 2.0 - Type A ¦ 1 x USB 2.0 - header ¦ 1 x USB 3.0 - header ¦ 1 x VGA - header ¦ 1 x serial - header |
Features | |
BIOS Type: | Intel |
BIOS Features: | IPMI 2.0 support |
Miscellaneous | |
Width: | 42.4 cm |
Depth: | 43.2 cm |
Manufacturer Warranty | |
Service & Support: | Limited warranty - 3 years |
Enterprise and medium-sized business IT, big data, storage, and cloud using distributed processing and intensive application workloads are ideal for the Intel Server Board S2600WT family.
- Supports two Intel Xeon processor E5-2600 v3
- 24 memory sockets support LR-DIMMs
- Multiple PCIe Gen 3 lanes for maximum I/O capacity
The technical details come from 3rd party. edgemo is not responsible for any errors.
