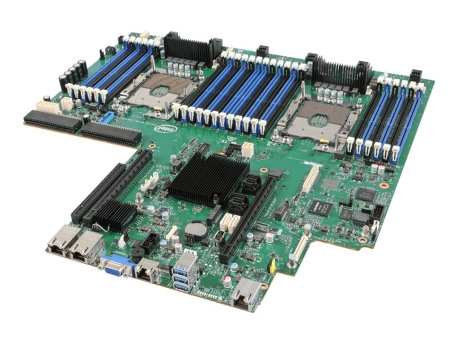

Printers & POSIntel Server Board S2600WFTR - motherboard - Intel - Socket P - C624
SKU S2600WFTR
| Product Description: | Intel Server Board S2600WFTR - motherboard - Intel - Socket P - C624 |
| Product Type: | Motherboard |
| Processor: | Intel |
| Chipset Type: | Intel C624 |
| Processor Socket: | 2 x Socket P |
| Compatible Processors: | Xeon Gold, Xeon Bronze, Xeon Silver, Xeon Platinum (Maximum TDP 205 Watt) |
| Max RAM Size: | 7.5 TB |
- Specifications
- Description
| General | |
| Product Type: | Motherboard |
| Processor: | Intel |
| Chipset Type: | Intel C624 |
| Processor Socket: | Socket P |
| Max Processors Qty: | 2 |
| Compatible Processors: | Xeon Gold, Xeon Bronze, Xeon Silver, Xeon Platinum (Maximum TDP 205 Watt) |
| Supported RAM | |
| Max Size: | 7.5 TB |
| Technology: | DDR4 |
| Bus Clock: | 2400 MHz, 2133 MHz, 2666 MHz, 2933 MHz |
| Supported RAM Integrity Check: | ECC |
| Registered or Buffered: | Registered, Load-Reduced |
| Graphics | |
| Dedicated Video Memory: | 16 MB DDR4 SDRAM |
| LAN | |
| Network Interfaces: | 2 x 10 Gigabit Ethernet |
| Expansion / Connectivity | |
| Expansion Slots: | 2 x CPU ¦ 24 x DIMM 288-pin (1.2 V) ¦ 6 x PCIe 3.0 x8 ¦ 3 x PCIe 3.0 x16 |
| Storage Interfaces: | Intel C624: PCIe 3.0 -connectors: 4 x NVMe port ¦ Intel C624: SATA-600 -connectors: 2 x 7pin Serial ATA ¦ Intel C624: SATA-600 / PCIe -connectors: 2 x M.2 ¦ Intel C624: SATA-600 -connectors: 2 x mini-SAS HD |
| RAID Features: | Software RAID 0/ 1 / 10 |
| Interfaces: | 1 x management ¦ 1 x serial ¦ 3 x USB 3.0 ¦ 1 x VGA ¦ 2 x LAN (10Gigabit Ethernet) |
| Internal Interfaces: | 1 x USB 2.0 - Type A ¦ 2 x USB 3.0 - header ¦ 2 x USB 2.0 - header ¦ 1 x serial |
| Features | |
| BIOS Type: | Intel |
| BIOS Features: | IPMI 2.0 support |
| Hardware Features: | Trusted Platform Module (TPM) 2.0 |
| Miscellaneous | |
| Width: | 42.4 cm |
| Depth: | 43.2 cm |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 3 years |
Intel Server Boards can help partners accelerate time to market with innovative solutions built with modern technology.
- 24 DIMM slots supporting DDR4 SDRAM for extensive memory capacity
- Dual 10 Gigabit Ethernet for high-speed networking
- 6 PCIe 3.0 x8 and 3 PCIe 3.0 x16 slots for superior expansion capabilities
- Supports a wide range of storage options including SATA-600 and NVMe SSDs
- USB 3.0 and USB 2.0 ports and headers for versatile peripheral connectivity
