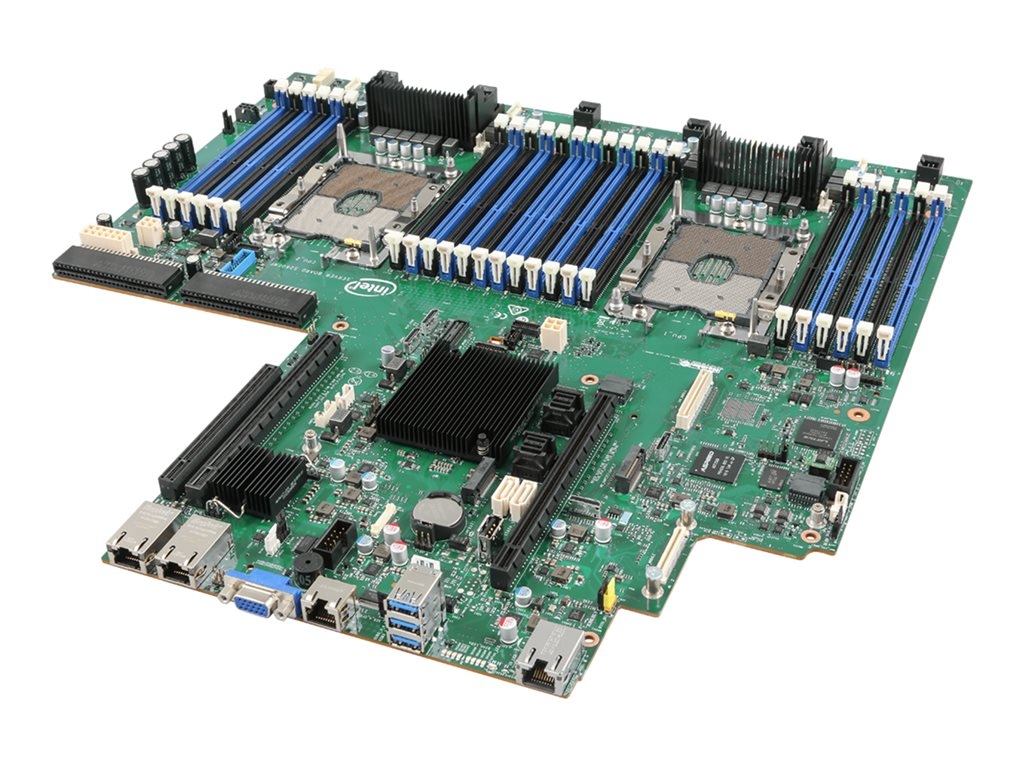

Intel Server Board S2600WFQR - motherboard - Intel - Socket P - C628
SKU S2600WFQR
Product Description: | Intel Server Board S2600WFQR - motherboard - Intel - Socket P - C628 |
Product Type: | Motherboard |
Processor: | Intel |
Chipset Type: | Intel C628 |
Processor Socket: | 2 x Socket P |
Compatible Processors: | Xeon Gold, Xeon Bronze, Xeon Silver, Xeon Platinum (Maximum TDP 205 Watt) |
Max RAM Size: | 7.5 TB |
- Specifications
- Description
General | |
Product Type: | Motherboard |
Processor: | Intel |
Chipset Type: | Intel C628 |
Processor Socket: | Socket P |
Max Processors Qty: | 2 |
Compatible Processors: | Xeon Gold, Xeon Bronze, Xeon Silver, Xeon Platinum (Maximum TDP 205 Watt) |
Supported RAM | |
Max Size: | 7.5 TB |
Technology: | DDR4 |
Bus Clock: | 2400 MHz, 2133 MHz, 2666 MHz, 2933 MHz |
Supported RAM Integrity Check: | ECC |
Registered or Buffered: | Registered, Load-Reduced |
Graphics | |
Dedicated Video Memory: | 16 MB DDR4 SDRAM |
Expansion / Connectivity | |
Expansion Slots: | 2 x CPU ¦ 24 x DIMM 288-pin (1.2 V) ¦ 6 x PCIe 3.0 x8 ¦ 3 x PCIe 3.0 x16 |
Storage Interfaces: | Intel C624: PCIe 3.0 -connectors: 2 x NVMe port ¦ Intel C624: SATA-600 -connectors: 2 x 7pin Serial ATA ¦ Intel C624: SATA-600 / PCIe -connectors: 2 x M.2 |
RAID Features: | Software RAID 0/ 1 / 10 |
Interfaces: | 1 x management ¦ 1 x serial ¦ 3 x USB 3.0 ¦ 1 x VGA |
Internal Interfaces: | 1 x USB 2.0 - Type A ¦ 2 x USB 3.0 - header ¦ 2 x USB 2.0 - header ¦ 1 x serial |
Features | |
BIOS Type: | Intel |
BIOS Features: | IPMI 2.0 support |
Hardware Features: | Trusted Platform Module (TPM) 2.0 |
Miscellaneous | |
Width: | 42.4 cm |
Depth: | 43.2 cm |
Manufacturer Warranty | |
Service & Support: | Limited warranty - 3 years |
Intel Server Boards can help partners accelerate time to market with innovative solutions built with modern technology.
The technical details come from 3rd party. edgemo is not responsible for any errors.
