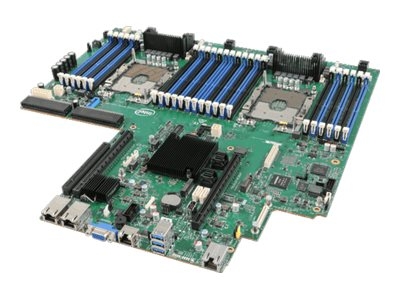

Intel Server Board S2600WF0 - motherboard - Socket P - C624
SKU S2600WF0
Product Description: | Intel Server Board S2600WF0 - motherboard - Socket P - C624 |
Product Type: | Motherboard |
Chipset Type: | Intel C624 |
Processor Socket: | 2 x Socket P |
Compatible Processors: | Xeon Gold, Xeon Bronze, Xeon Silver, Xeon Platinum (Maximum TDP 205 Watt) |
RAM Supported: | 24 DIMM slots - DDR4, ECC, registered, Load-Reduced |
Storage Ports: | 10 x SATA-600, 4 x NVMe port, 2 x M.2 |
- Specifications
- Description
General | |
Product Type: | Motherboard |
Chipset Type: | Intel C624 |
Processor Socket: | Socket P |
Max Processors Qty: | 2 |
Compatible Processors: | Xeon Gold, Xeon Bronze, Xeon Silver, Xeon Platinum (Maximum TDP 205 Watt) |
Supported RAM | |
Technology: | DDR4 |
Bus Clock: | 2400 MHz, 2133 MHz, 2666 MHz |
Supported RAM Integrity Check: | ECC |
Registered or Buffered: | Registered, Load-Reduced |
Graphics | |
Dedicated Video Memory: | 16 MB DDR4 SDRAM |
Expansion / Connectivity | |
Expansion Slots: | 2 x CPU ¦ 24 x DIMM 288-pin (1.2 V) ¦ 2 x PCIe 3.0 x24 ¦ 1 x PCIe 3.0 x16 (low-profile) |
Storage Interfaces: | Intel C624: PCIe 3.0 -connectors: 4 x NVMe port ¦ Intel C624: SATA-600 -connectors: 2 x 7pin Serial ATA ¦ Intel C624: SATA-600 / PCIe -connectors: 2 x M.2 ¦ Intel C624: SATA-600 -connectors: 2 x mini-SAS HD |
RAID Features: | Software RAID 0/ 1 / 10 |
Interfaces: | 1 x management ¦ 1 x serial ¦ 3 x USB 3.0 ¦ 1 x VGA |
Internal Interfaces: | 1 x USB 2.0 - Type A ¦ 2 x USB 3.0 - header ¦ 2 x USB 2.0 - header ¦ 1 x serial |
Features | |
BIOS Type: | Intel |
BIOS Features: | IPMI 2.0 support |
Hardware Features: | Trusted Platform Module (TPM) 2.0 |
Miscellaneous | |
Width: | 42.4 cm |
Depth: | 43.2 cm |
Manufacturer Warranty | |
Service & Support: | Limited warranty - 3 years |
Intel S2600WF product family delivers power and performance at peak efficiency and features energy-efficient processors. High memory capacity, networking, storage and I/O flexibility combine with innovative design to provide an exceptional and reliable server for business IT, appliance, data center, cloud and high-performance computing applications.
- Platform for the multi-cloud, data-fueled enterprise
- Built with high reliability and performance
