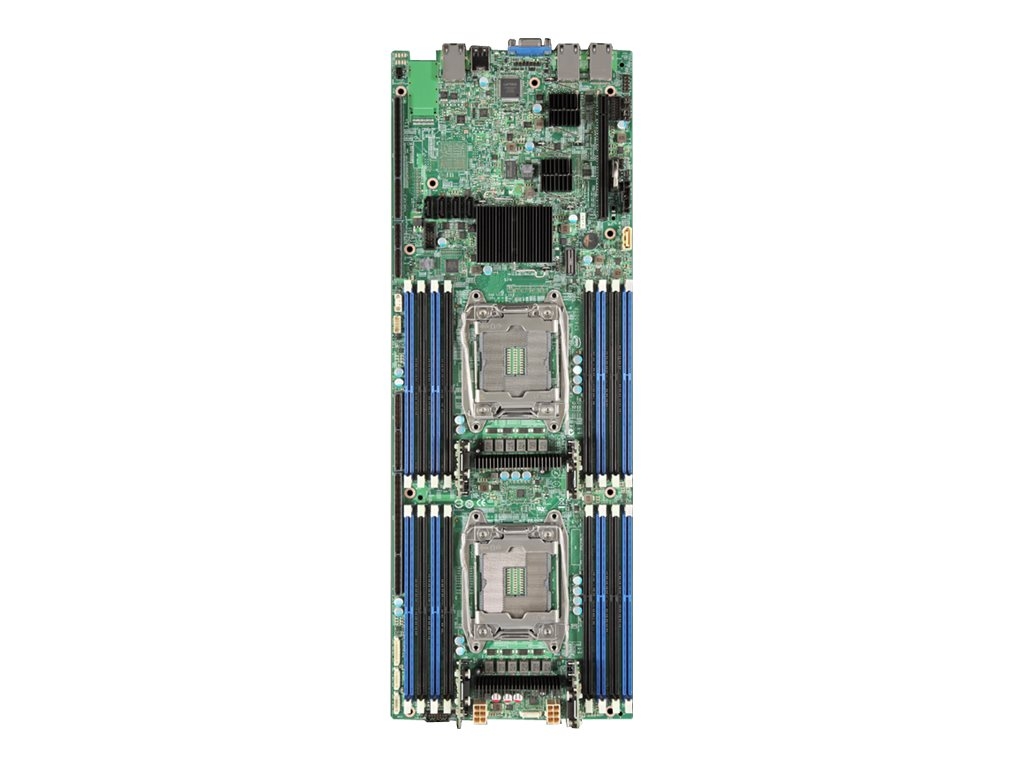

Intel Server Board S2600TPR - motherboard - SSI EEB - LGA2011-v3 Socket - C612
SKU BBS2600TPR
Product Description: | Intel Server Board S2600TPR - motherboard - SSI EEB - LGA2011-v3 Socket - C612 |
Product Type: | Motherboard - SSI EEB |
Chipset Type: | Intel C612 |
Processor Socket: | 2 x LGA2011-v3 Socket |
Compatible Processors: | Xeon E5-2600 v3 series (Maximum TDP 160 Watt) |
Max RAM Size: | 1 TB |
RAM Supported: | 16 DIMM slots - DDR4, ECC, registered, Load-Reduced |
- Specifications
- Description
General | |
Product Type: | Motherboard - SSI EEB |
Chipset Type: | Intel C612 |
Processor Socket: | LGA2011-v3 Socket |
Max Processors Qty: | 2 |
Compatible Processors: | Xeon E5-2600 v3 series (Maximum TDP 160 Watt) |
Supported RAM | |
Max Size: | 1 TB |
Technology: | DDR4 |
Bus Clock: | 1600 MHz, 1866 MHz, 2133 MHz |
Supported RAM Integrity Check: | ECC |
Registered or Buffered: | Registered, Load-Reduced |
Features: | 8-channel memory architecture |
LAN | |
Network Interfaces: | 2 x Gigabit Ethernet |
Expansion / Connectivity | |
Expansion Slots: | 2 x CPU ¦ 16 x DIMM 288-pin ¦ 2 x PCIe 3.0 x16 ¦ 1 x PCIe 3.0 x8 |
Storage Interfaces: | SATA-600 -connectors: 5 x 7pin SATA |
Interfaces: | 1 x VGA ¦ 4 x USB 2.0 ¦ 2 x LAN (10Gigabit Ethernet) ¦ 1 x serial |
Features | |
BIOS Type: | Intel |
BIOS Features: | IPMI 2.0 support |
Hardware Features: | Intel Fast Memory Access Technology |
Miscellaneous | |
Width: | 17.3 cm |
Depth: | 48 cm |
Package Type: | OEM |
Manufacturer Warranty | |
Service & Support: | Limited warranty - 3 years |
The Intel Server Board S2600TP family is ideal for high performance computing (HPC), big data, storage, and cloud solutions where highly demanding distributed processing, intensive application workloads, and high performance-per-dollar solutions rely on maximum compute density and performance for powerful results.
- Supports two Intel Xeon processor E5-2600 v3
- 16 memory sockets support LR/R-DIMMs
- High-density, small custom half-width form factor
- Four risers with multiple I/O lanes
The technical details come from 3rd party. edgemo is not responsible for any errors.
