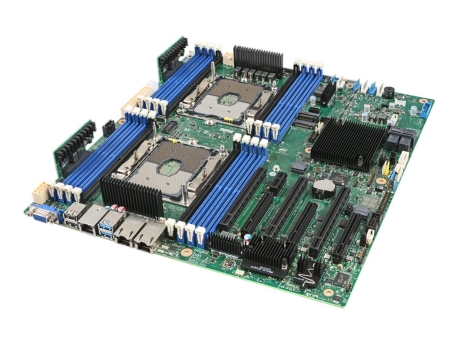

Intel Server Board S2600STQR - motherboard - SSI EEB - Intel - Socket P - C628

SKU S2600STQR

Product Description:	Intel Server Board S2600STQR - motherboard - SSI EEB - Intel - Socket P - C628
Product Type:	Motherboard - SSI EEB
Processor:	Intel
Chipset Type:	Intel C628
Processor Socket:	2 x Socket P
Compatible Processors:	Xeon Gold, Xeon Bronze, Xeon Silver, Xeon Platinum (Maximum TDP 205 Watt)
Max RAM Size:	2 TB

Not in stock

Specifications
Description
Accessories

General
Product Type:	Motherboard - SSI EEB
Processor:	Intel
Chipset Type:	Intel C628
Processor Socket:	Socket P
Max Processors Qty:	2
Compatible Processors:	Xeon Gold, Xeon Bronze, Xeon Silver, Xeon Platinum (Maximum TDP 205 Watt)

Supported RAM
Max Size:	2 TB
Technology:	DDR4
Bus Clock:	2400 MHz, 2133 MHz, 2666 MHz, 2933 MHz
Supported RAM Integrity Check:	ECC
Registered or Buffered:	Registered, Load-Reduced

Graphics
Dedicated Video Memory:	16 MB DDR4 SDRAM

LAN
Network Interfaces:	2 x 10 Gigabit Ethernet

Expansion / Connectivity
Expansion Slots:	2 x CPU ¦ 16 x DIMM 288-pin (1.2 V) ¦ 3 x PCIe 3.0 x16 ¦ 3 x PCIe 3.0 x8
Storage Interfaces:	Intel C628: PCIe 3.0 -connectors: 2 x NVMe port ¦ Intel C628: SATA-600 -connectors: 2 x 7pin Serial ATA ¦ Intel C628: SATA-600 / PCIe -connectors: 2 x M.2 ¦ Intel C628: SATA-600 -connectors: 2 x mini-SAS HD
RAID Features:	Software RAID 0/ 1 / 10
Interfaces:	2 x LAN (10Gigabit Ethernet)
Internal Interfaces:	1 x USB 3.0 - Type A ¦ 1 x USB 3.0 - header ¦ 1 x serial

Features
BIOS Type:	Intel
BIOS Features:	IPMI 2.0 support
Hardware Features:	Trusted Platform Module (TPM) 2.0

Miscellaneous
Included Accessories:	IO shield, protective insulator, configuration label
Cables Included:	2 x Serial ATA cable
Width:	30.5 cm
Depth:	33 cm

Manufacturer Warranty
Service & Support:	Limited warranty - 3 years

vis mere

Intel Data Center Blocks (Intel DCB) are purpose built, fully validated server systems that can help partners accelerate time to market with innovative server solutions built with the latest technology. In addition to predefined configurations, Intel will also build servers to your specifications from a list of validated components optimizing the performance and costs when a more custom system is needed.

Support for two socket 2nd Generation Intel Xeon Scalable processors
16 DDR4 DIMM slots
Six PCIe Gen 3.0 slots, providing maximum configuration flexibility
Up to four on-board OCuLink connectors for direct attach NVMe 2.5" SSD support
Operating system boot option via two 80 mm M.2 connectors (x2 and x4 PCIe & SATA)
Networking flexibility with dual 10GBase-T and Dual 10G SFP+ modules
Up to 150 Gbps high speed compression via three Intel QuickAssist Technology (Intel QAT) engines

The technical details come from 3rd party. edgemo is not responsible for any errors.
