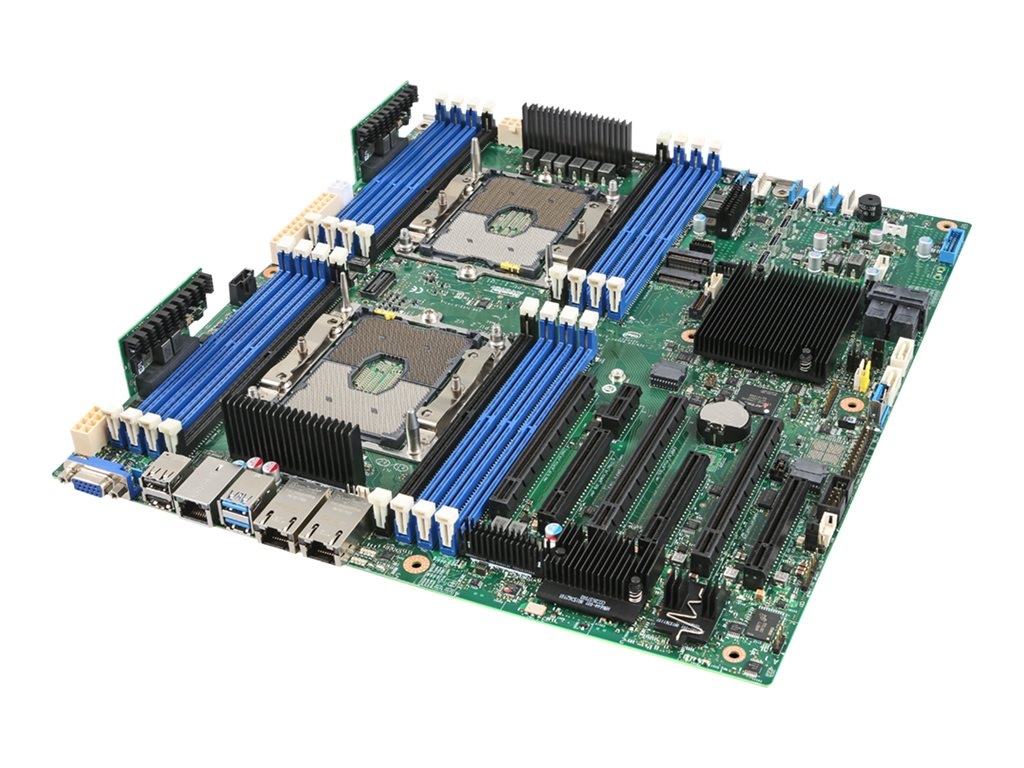

Printers & POSIntel Server Board S2600STBR - motherboard - SSI EEB - Socket P - C624
SKU S2600STBR
| Product Description: | Intel Server Board S2600STBR - motherboard - SSI EEB - Socket P - C624 |
| Product Type: | Motherboard - SSI EEB |
| Chipset Type: | Intel C624 |
| Processor Socket: | 2 x Socket P |
| Compatible Processors: | Xeon Bronze, Xeon Silver, Xeon Gold, Xeon Platinum (Maximum TDP 205 Watt) |
| RAM Supported: | 16 DIMM slots - DDR4, ECC, registered, Load-Reduced |
| Storage Ports: | 10 x SATA-600, 4 x NVMe port, 2 x M.2 |
- Specifications
- Description
| General | |
| Product Type: | Motherboard - SSI EEB |
| Chipset Type: | Intel C624 |
| Processor Socket: | Socket P |
| Max Processors Qty: | 2 |
| Compatible Processors: | Xeon Bronze, Xeon Silver, Xeon Gold, Xeon Platinum (Maximum TDP 205 Watt) |
| Supported RAM | |
| Technology: | DDR4 |
| Bus Clock: | 2133 MHz, 2400 MHz, 2666 MHz, 2933 MHz |
| Supported RAM Integrity Check: | ECC |
| Registered or Buffered: | Registered, Load-Reduced |
| LAN | |
| Network Interfaces: | 2 x 10 Gigabit Ethernet |
| Expansion / Connectivity | |
| Expansion Slots: | 2 x CPU ¦ 16 x DIMM 288-pin (1.2 V) ¦ 3 x PCIe 3.0 x16 ¦ 3 x PCIe 3.0 x8 |
| Storage Interfaces: | Intel C624: PCIe 3.0 -connectors: 4 x NVMe port ¦ Intel C624: SATA-600 -connectors: 2 x 7pin Serial ATA ¦ Intel C624: SATA-600 / PCIe -connectors: 2 x M.2 ¦ Intel C624: SATA-600 -connectors: 2 x mini-SAS HD |
| RAID Features: | Software RAID 0/ 1 / 10 |
| Interfaces: | 2 x LAN (10Gigabit Ethernet) ¦ 2 x USB 2.0 ¦ 2 x USB 3.0 ¦ 1 x VGA |
| Internal Interfaces: | 1 x USB 3.0 - Type A ¦ 2 x USB 3.0 - header ¦ 1 x serial |
| Features | |
| BIOS Type: | Intel |
| BIOS Features: | IPMI 2.0 support |
| Hardware Features: | OCuLink, Intel Optane Memory Ready, Trusted Platform Module (TPM) 2.0 |
| Miscellaneous | |
| Included Accessories: | IO shield, protective insulator, configuration label |
| Cables Included: | 2 x Serial ATA cable |
| Width: | 30.5 cm |
| Depth: | 33 cm |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 3 years |
The Intel Server Board S2600ST offers small and medium businesses a general-purpose, price-performance solution for networking scenarios involving storage, security and embedded appliances. Optimized for use with the 2nd Generation Intel Xeon processor Scalable family, the board features multiple PCIe lanes and a standard form factor for greater versatility in a variety of use cases including cloud, storage, and telecommunications. Together, this standard form factor and rich feature set helps an organizations' ability to move, store, and process data more quickly in a variety of environments.
- Standard EEB form factor with flexible I/O, storage, and networking capacity
- Ideal for performance storage, networking, web hosting, and security appliances
- High scalability and resiliency with no I/O compromise to support a wide range of workloads
The technical details come from 3rd party. edgemo is not responsible for any errors.
