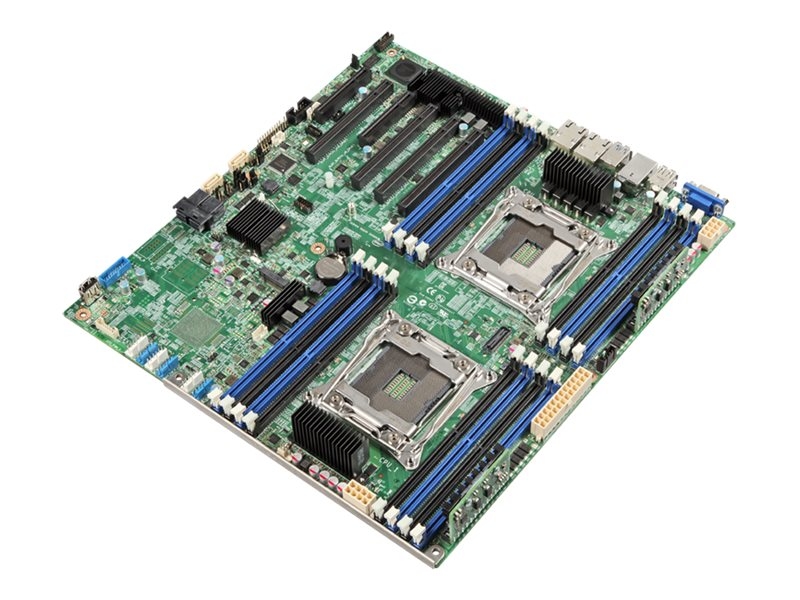

Printers & POSIntel Server Board S2600CWTS - motherboard - SSI EEB - LGA2011-v3 Socket - C612
SKU DBS2600CWTS
| Product Description: | Intel Server Board S2600CWTS - motherboard - SSI EEB - LGA2011-v3 Socket - C612 |
| Product Type: | Motherboard - SSI EEB |
| Chipset Type: | Intel C612 |
| Processor Socket: | 2 x LGA2011-v3 Socket |
| Compatible Processors: | Xeon E5-2600 v3 series (supports CPUs with up to 18 cores, Maximum TDP 145 Watt) |
| Data Bus Transfer Rate: | 9.6 GT/s |
| Max RAM Size: | 2 TB |
- Specifications
- Description
| General | |
| Product Type: | Motherboard - SSI EEB |
| Chipset Type: | Intel C612 |
| Data Bus Transfer Rate: | 9.6 GT/s |
| Processor Socket: | LGA2011-v3 Socket |
| Max Processors Qty: | 2 |
| Compatible Processors: | Xeon E5-2600 v3 series (supports CPUs with up to 18 cores, Maximum TDP 145 Watt) |
| Supported RAM | |
| Max Size: | 2 TB |
| Technology: | DDR4 |
| Bus Clock: | 1600 MHz, 1333 MHz, 1866 MHz, 2133 MHz |
| Supported RAM Integrity Check: | ECC |
| Registered or Buffered: | Registered, Load-Reduced |
| Features: | 8-channel memory architecture |
| Details: | 2 TB - Load-Reduced - ECC ¦ 1 TB - registered - ECC |
| Graphics | |
| Dedicated Video Memory: | 16 MB DDR3 SDRAM |
| LAN | |
| Network Controller: | Intel X540 |
| Network Interfaces: | 2 x 10 Gigabit Ethernet |
| Expansion / Connectivity | |
| Expansion Slots: | 2 x CPU ¦ 16 x DIMM 288-pin (1.2 V) ¦ 1 x PCIe 3.0 x4 ¦ 4 x PCIe 3.0 x16 ¦ 1 x PCIe 3.0 x8 |
| Storage Interfaces: | SATA-600 -connectors: 10 x 7pin SATA, 1 x M.2 - RAID 0 / RAID 1 / RAID 10 ¦ LSI Logic LSISAS3008: SAS 3 - 8 devices - RAID 0 / RAID 1 / RAID 1E / RAID 10 |
| RAID Features: | Intel Rapid Storage Technology |
| Interfaces: | 1 x VGA ¦ 2 x USB 2.0 ¦ 2 x LAN (10Gigabit Ethernet) ¦ 1 x management ¦ 2 x USB 3.0 |
| Internal Interfaces: | 1 x USB 2.0 - Type A ¦ 1 x USB 3.0 - header ¦ 1 x serial |
| Power Connectors: | 24-pin main power connector |
| Features | |
| BIOS Type: | Intel |
| BIOS Features: | IPMI 2.0 support |
| Hardware Features: | Trusted Platform Module (TPM) 1.2, NVIDIA 3-way SLI Technology Support, AMD Quad CrossFireX technology support |
| Miscellaneous | |
| Included Accessories: | I/O back plate |
| Cables Included: | 2 x Serial ATA cable |
| Width: | 30.5 cm |
| Depth: | 33 cm |
The Intel Server Board S2600CW is a monolithic printed circuit board (PCB) with features designed to support the pedestal server markets. This server board is designed to support the Intel Xeon processor E5-2600 v3 and Intel Xeon processor E5-2600 v4 product families.
The technical details come from 3rd party. edgemo is not responsible for any errors.
