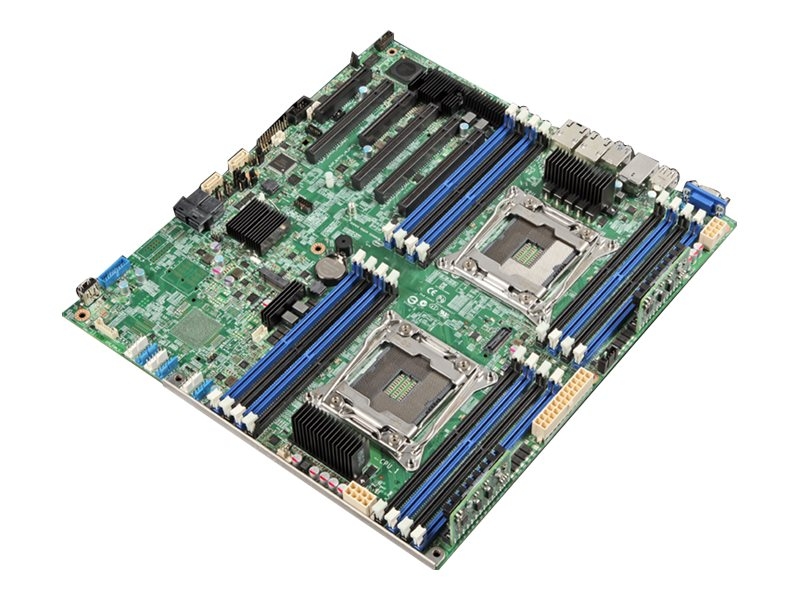

Intel Server Board S2600CW2SR - motherboard - SSI EEB - LGA2011-v3 Socket - C612
SKU DBS2600CW2SR
Product Description: | Intel Server Board S2600CW2SR - motherboard - SSI EEB - LGA2011-v3 Socket - C612 |
Product Type: | Motherboard - SSI EEB |
Chipset Type: | Intel C612 |
Processor Socket: | 2 x LGA2011-v3 Socket |
Compatible Processors: | Xeon E5-2600 v3 series (supports CPUs with up to 18 cores, Maximum TDP 145 Watt) |
Data Bus Transfer Rate: | 9.6 GT/s |
Max RAM Size: | 2 TB |
- Specifications
- Description
General | |
Product Type: | Motherboard - SSI EEB |
Chipset Type: | Intel C612 |
Data Bus Transfer Rate: | 9.6 GT/s |
Processor Socket: | LGA2011-v3 Socket |
Max Processors Qty: | 2 |
Compatible Processors: | Xeon E5-2600 v3 series (supports CPUs with up to 18 cores, Maximum TDP 145 Watt) |
Supported RAM | |
Max Size: | 2 TB |
Technology: | DDR4 |
Bus Clock: | 1600 MHz, 1333 MHz, 1866 MHz, 2133 MHz |
Supported RAM Integrity Check: | ECC |
Registered or Buffered: | Registered, Load-Reduced |
Features: | 8-channel memory architecture |
Details: | 2 TB - Load-Reduced - ECC ¦ 1 TB - registered - ECC |
Graphics | |
Dedicated Video Memory: | 16 MB DDR3 SDRAM |
LAN | |
Network Controller: | Intel I350 |
Network Interfaces: | 2 x Gigabit Ethernet |
Expansion / Connectivity | |
Expansion Slots: | 2 x CPU ¦ 16 x DIMM 288-pin (1.2 V) ¦ 1 x PCIe 3.0 x4 ¦ 4 x PCIe 3.0 x16 ¦ 1 x PCIe 3.0 x8 |
Storage Interfaces: | SATA-600 -connectors: 10 x 7pin SATA, 1 x M.2 - RAID 0 / RAID 1 / RAID 10 ¦ LSI Logic LSISAS3008: SAS 3 - 8 devices - RAID 0 / RAID 1 / RAID 1E / RAID 10 |
RAID Features: | Intel Rapid Storage Technology |
Interfaces: | 1 x VGA ¦ 2 x USB 2.0 ¦ 2 x LAN (Gigabit Ethernet) ¦ 1 x management ¦ 2 x USB 3.0 |
Internal Interfaces: | 1 x USB 2.0 - Type A ¦ 1 x USB 3.0 - header ¦ 1 x serial |
Power Connectors: | 24-pin main power connector |
Features | |
BIOS Type: | Intel |
BIOS Features: | IPMI 2.0 support |
Hardware Features: | Trusted Platform Module (TPM) 1.2, NVIDIA 3-way SLI Technology Support, AMD Quad CrossFireX technology support |
Miscellaneous | |
Included Accessories: | I/O back plate |
Cables Included: | 2 x Serial ATA cable |
Width: | 30.5 cm |
Depth: | 33 cm |
The Intel server board S2600CW product family combines high PCIe lane availability and excellent storage possibilities in a standard EEB form factor to provide a value solution for pedestal or rackmount systems. S2600CW2SR is a general purpose server board supporting 16 DIMMs, two Ethernet ports, and an eight port LSI 3008 SAS controller. S2600CW2SR is ideal for a wide range of applications in the embedded, office, storage, and cloud segments.
- Supports powerful computing and memory
- Ample storage and networking capability
- 16 memory sockets support LR / R-DIMMs
- 80 PCIe Gen 3 and four PCIe Gen 2 lanes available for maximum I/O capacity
- Enhanced compatibility
- Optimized low-profile rear I/O for 1U chassis
The technical details come from 3rd party. edgemo is not responsible for any errors.
