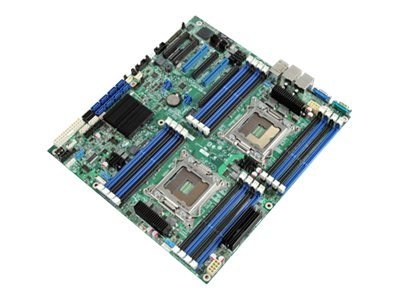

Printers & POSIntel Server Board S2600CP4 - motherboard - SSI EEB - LGA2011 Socket - C600-A
SKU DBS2600CP4
| Product Description: | Intel Server Board S2600CP4 - motherboard - SSI EEB - LGA2011 Socket - C600-A |
| Product Type: | Motherboard - SSI EEB |
| Chipset Type: | Intel C600-A |
| Processor Socket: | 2 x LGA2011 Socket |
| Compatible Processors: | Xeon E5-2600 series |
| Max RAM Size: | 500 GB |
| RAM Supported: | 16 DIMM slots - DDR3, ECC, registered, unbuffered |
- Specifications
- Description
| General | |
| Product Type: | Motherboard - SSI EEB |
| Chipset Type: | Intel C600-A |
| Processor Socket: | LGA2011 Socket |
| Max Processors Qty: | 2 |
| Compatible Processors: | Xeon E5-2600 series |
| Supported RAM | |
| Max Size: | 500 GB |
| Technology: | DDR3 |
| Bus Clock: | 1333 MHz, 1066 MHz, 800 MHz |
| Supported RAM Integrity Check: | ECC |
| Registered or Buffered: | Registered, unbuffered |
| Graphics | |
| Graphics Controller: | Matrox G200 |
| LAN | |
| Network Controller: | Intel I350 |
| Network Interfaces: | 4 x Gigabit Ethernet |
| Expansion / Connectivity | |
| Expansion Slots: | 2 x CPU ¦ 16 x DIMM 240-pin (1.5 V/ 1.35 V) ¦ 1 x PCIe 3.0 x16 ¦ 5 x PCIe 3.0 x8 |
| Storage Interfaces: | SATA-600 -connectors: 2 x 7pin Serial ATA - 2 devices - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-300 -connectors: 8 x 7pin Serial ATA - 4 devices - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
| RAID Features: | Software RAID 0/ 1 / 10 / 5 |
| Interfaces: | 4 x LAN (Gigabit Ethernet) ¦ 4 x USB 2.0 ¦ 1 x serial ¦ 1 x USB ¦ 1 x VGA |
| Internal Interfaces: | 1 x USB 2.0 - Type A ¦ 2 x USB 2.0 ¦ 1 x serial |
| Features | |
| BIOS Type: | Intel |
| BIOS Features: | IPMI support |
| Hardware Features: | Trusted Platform Module (TPM), Intel Fast Memory Access Technology |
| Miscellaneous | |
| Included Accessories: | I/O back plate |
| Software Included: | Drivers & Utilities |
| Width: | 30.5 cm |
| Depth: | 33 cm |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 3 years |
The Intel server board S2600CP4 is a mainstream server board supporting up to two Intel Xeon processors. This board is standard SSI EEB designed for the small/medium business and embedded markets.
- Supports dual Intel Xeon processors
- Intel Quad Gigabit Ethernet with Intel Virtualization technology
- Integrated baseboard management controller with IPMI 2.0
- Support for Intel SAS and RAID modules in PCIe form factor
The technical details come from 3rd party. edgemo is not responsible for any errors.
