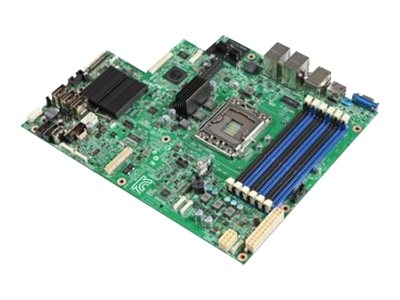

Printers & POSIntel Server Board S1400SP4 - motherboard - SSI ATX - LGA1356 Socket - C602-A
SKU DBS1400SP4
| Product Description: | Intel Server Board S1400SP4 - motherboard - SSI ATX - LGA1356 Socket - C602-A |
| Product Type: | Motherboard - SSI ATX |
| Chipset Type: | Intel C602-A |
| Processor Socket: | 1 x LGA1356 Socket |
| Compatible Processors: | Xeon E5-2400 series |
| Max RAM Size: | 96 GB |
| RAM Supported: | 6 DIMM slots - DDR3, ECC, registered, unbuffered |
- Specifications
- Description
| General | |
| Product Type: | Motherboard - SSI ATX |
| Chipset Type: | Intel C602-A |
| Processor Socket: | LGA1356 Socket |
| Max Processors Qty: | 1 |
| Compatible Processors: | Xeon E5-2400 series |
| Supported RAM | |
| Max Size: | 96 GB |
| Technology: | DDR3 |
| Bus Clock: | 1600 MHz, 1333 MHz |
| Supported RAM Integrity Check: | ECC |
| Registered or Buffered: | Registered, unbuffered |
| Features: | Triple channel memory architecture |
| Graphics | |
| Graphics Controller: | ServerEngines Pilot III |
| Dedicated Video Memory: | 16 MB |
| LAN | |
| Network Controller: | Intel I350 |
| Network Interfaces: | 4 x Gigabit Ethernet |
| Expansion / Connectivity | |
| Expansion Slots: | 1 x CPU ¦ 6 x DIMM 240-pin (1.5 V/ 1.35 V) ¦ 1 x PCIe 3.0 x8 ¦ 1 x PCIe 3.0 x16 (x8 mode) ¦ 1 x PCIe 3.0 x8 (x4 mode) ¦ 1 x PCIe 2.0 x8 (x4 mode) |
| Storage Interfaces: | SAS 2 - 8 devices - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-300 -connectors: 4 x 7pin Serial ATA - 4 devices ¦ SATA-600 -connectors: 2 x 7pin Serial ATA - 2 devices |
| RAID Features: | Intel Rapid Storage Technology |
| Interfaces: | 4 x USB 2.0 ¦ 4 x LAN (Gigabit Ethernet) ¦ 1 x VGA ¦ 2 x serial |
| Internal Interfaces: | 1 x USB 2.0 - Type A ¦ 2 x USB 2.0 - header ¦ 1 x serial |
| Features | |
| BIOS Type: | Intel |
| BIOS Features: | IPMI support |
| Hardware Features: | Trusted Platform Module (TPM) 1.2, Intel Fast Memory Access Technology |
| Miscellaneous | |
| Included Accessories: | I/O back plate |
| Cables Included: | 2 x Serial ATA cable |
| Software Included: | Drivers & Utilities |
| Width: | 30.5 cm |
| Depth: | 24.4 cm |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 3 years |
The Intel Server Board S1400SP family is a one-socket server board featuring the Intel processor E5-2400 family. This small form factor board supports six memory slots and offers great I/O flexibility with one PCIe x8 slot in addition to an Intel I/O expansion module and a dedicated SAS ROC connector.
- Rack-friendly board
- ECC memory supported
- Integrated graphics
- Intel Trusted Execution technology
- Intel intelligent power node manager
- Intel Matrix Storage technology
- Intel fast memory access
- Intel flex memory access
The technical details come from 3rd party. edgemo is not responsible for any errors.
