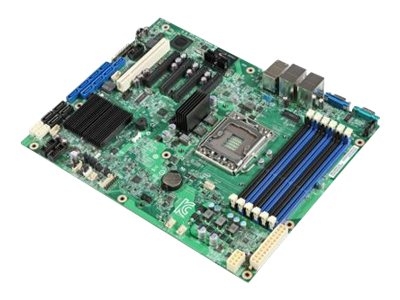

Intel Server Board S1400FP4 - motherboard - SSI ATX - LGA1356 Socket - C602-A
SKU DBS1400FP4
Product Description: | Intel Server Board S1400FP4 - motherboard - SSI ATX - LGA1356 Socket - C602-A |
Product Type: | Motherboard - SSI ATX |
Chipset Type: | Intel C602-A |
Processor Socket: | 1 x LGA1356 Socket |
Compatible Processors: | Xeon E5-2400 series |
Max RAM Size: | 96 GB |
RAM Supported: | 6 DIMM slots - DDR3, ECC, registered, unbuffered |
- Specifications
- Description
General | |
Product Type: | Motherboard - SSI ATX |
Chipset Type: | Intel C602-A |
Processor Socket: | LGA1356 Socket |
Max Processors Qty: | 1 |
Compatible Processors: | Xeon E5-2400 series |
Supported RAM | |
Max Size: | 96 GB |
Technology: | DDR3 |
Bus Clock: | 1600 MHz, 1333 MHz |
Supported RAM Integrity Check: | ECC |
Registered or Buffered: | Registered, unbuffered |
Features: | Triple channel memory architecture |
Graphics | |
Graphics Controller: | ServerEngines Pilot III |
Dedicated Video Memory: | 16 MB |
LAN | |
Network Controller: | Intel I350 |
Network Interfaces: | 4 x Gigabit Ethernet |
Expansion / Connectivity | |
Expansion Slots: | 1 x CPU ¦ 6 x DIMM 240-pin (1.5 V/ 1.35 V) ¦ 1 x PCIe 3.0 x8 ¦ 1 x PCIe 3.0 x16 (x8 mode) ¦ 1 x PCIe 3.0 x8 (x4 mode) ¦ 1 x PCIe 2.0 x8 (x4 mode) |
Storage Interfaces: | SAS 2 - 8 devices - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-300 -connectors: 4 x 7pin Serial ATA - 4 devices ¦ SATA-600 -connectors: 2 x 7pin Serial ATA - 2 devices |
RAID Features: | Intel Rapid Storage Technology |
Interfaces: | 4 x USB 2.0 ¦ 4 x LAN (Gigabit Ethernet) ¦ 1 x VGA ¦ 2 x serial |
Internal Interfaces: | 1 x USB 2.0 - Type A ¦ 2 x USB 2.0 - header ¦ 1 x serial |
Features | |
BIOS Type: | Intel |
BIOS Features: | IPMI support |
Hardware Features: | Trusted Platform Module (TPM) 1.2, Intel Fast Memory Access Technology |
Miscellaneous | |
Included Accessories: | I/O back plate |
Cables Included: | 2 x Serial ATA cable |
Software Included: | Drivers & Utilities |
Width: | 30.5 cm |
Depth: | 24.4 cm |
Manufacturer Warranty | |
Service & Support: | Limited warranty - 3 years |
- Rack-friendly board
- ECC memory supported
- Integrated graphics
- Intel Clear Video technology
