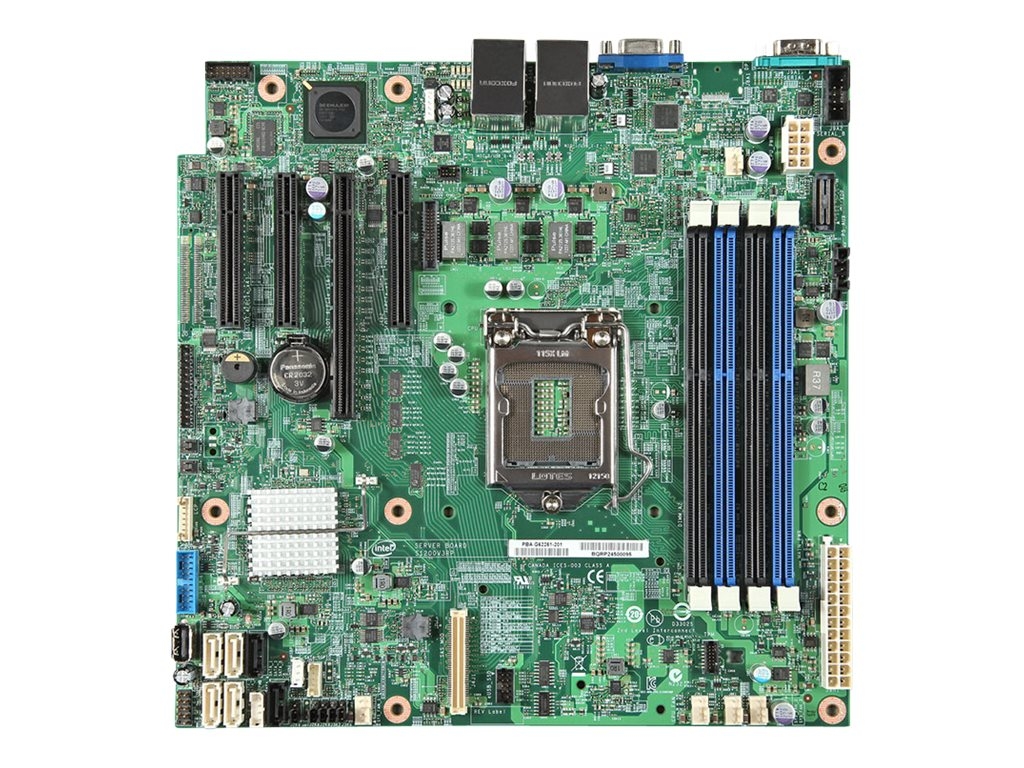

Intel Server Board S1200V3RPL - motherboard - micro ATX - LGA1150 Socket - C226
SKU DBS1200V3RPL
Product Description: | Intel Server Board S1200V3RPL - motherboard - micro ATX - LGA1150 Socket - C226 |
Product Type: | Motherboard - micro ATX |
Chipset Type: | Intel C226 |
Processor Socket: | 1 x LGA1150 Socket |
Compatible Processors: | Xeon E3-1200 series |
Max RAM Size: | 32 GB |
RAM Supported: | 4 DIMM slots - DDR3, ECC, unbuffered |
- Specifications
- Description
General | |
Product Type: | Motherboard - micro ATX |
Chipset Type: | Intel C226 |
Processor Socket: | LGA1150 Socket |
Max Processors Qty: | 1 |
Compatible Processors: | Xeon E3-1200 series |
Supported RAM | |
Max Size: | 32 GB |
Technology: | DDR3 |
Bus Clock: | 1333 MHz, 1066 MHz |
Speed: | PC3-10600, PC3-8500 |
Supported RAM Integrity Check: | ECC |
Registered or Buffered: | Unbuffered |
Features: | Dual channel memory architecture |
Graphics | |
Dedicated Video Memory: | 16 MB DDR3 SDRAM |
LAN | |
Network Controller: | Intel I210 |
Network Interfaces: | 2 x Gigabit Ethernet |
Expansion / Connectivity | |
Expansion Slots: | 1 x CPU ¦ 4 x DIMM 240-pin ¦ 1 x PCIe 2.0 x8 (x1 mode) ¦ 1 x PCIe 3.0 x16 (x8 mode) ¦ 1 x PCIe 2.0 x8 (x8/x4 mode) ¦ 1 x PCIe 2.0 x8 (x4 mode) |
Storage Interfaces: | SATA-600 -connectors: 6 x 7pin Serial ATA - 6 devices - RAID 0 / RAID 1 / RAID 10 |
RAID Features: | Software RAID 0/ 1 / 10 / 5 |
Interfaces: | 2 x USB 3.0 ¦ 2 x USB 2.0 ¦ 2 x LAN (Gigabit Ethernet) ¦ 1 x VGA ¦ 1 x serial |
Internal Interfaces: | 2 x USB 2.0 - header ¦ 1 x USB 2.0 - Type A ¦ 1 x USB 2.0 ¦ 2 x USB 3.0 - header |
Features | |
BIOS Type: | Intel |
BIOS Features: | DMI 2.0 support, IPMI support |
Sleep / Wake Up: | RTC (real-time clock) wake up |
Miscellaneous | |
Software Included: | Drivers & Utilities |
Width: | 24.4 cm |
Depth: | 24.4 cm |
Manufacturer Warranty | |
Service & Support: | Limited warranty - 3 years |
The Intel Server Board S1200V3RP family is a cost-effective, one-socket Intel Xeon processor E3 v3 product family solution that has simple setup and deployment while offering a solid upgrade path, making it an ideal first server for small and medium businesses.
- Supports one Intel Xeon processor E3 v3 product family
- Four memory sockets, unbuffered
- SSI uATX form factor
- Supports Intel Server Management
- Dual Gigabit Ethernet
