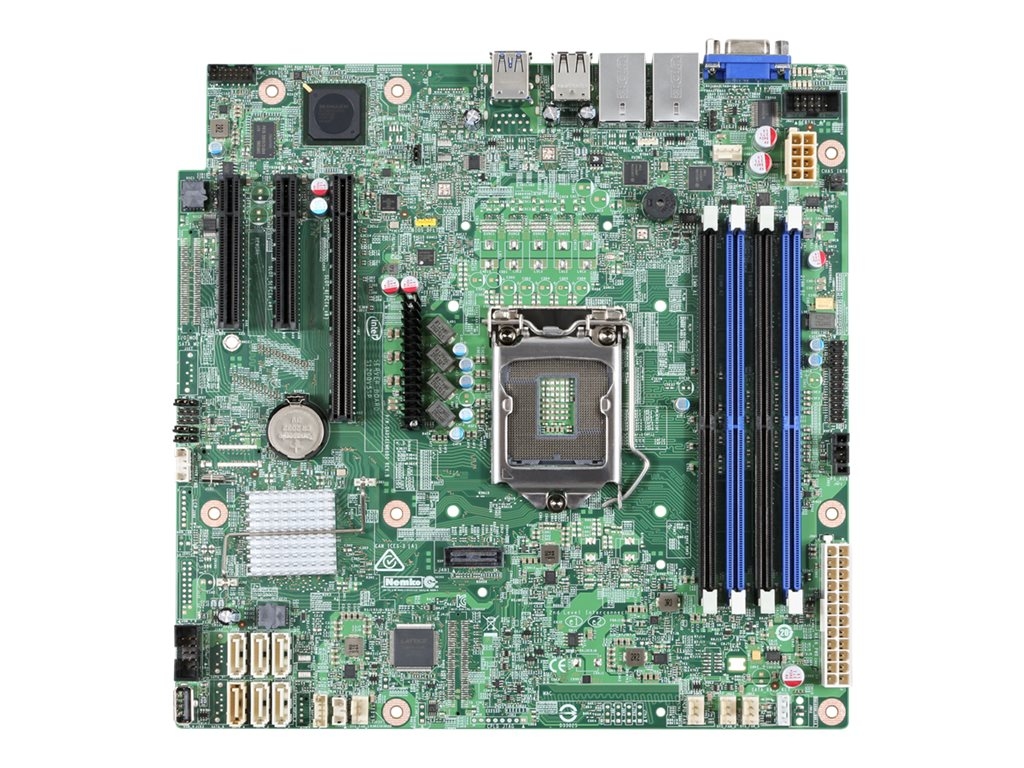

Intel Server Board S1200SPSR - motherboard - micro ATX - LGA1151 Socket - C232
SKU DBS1200SPSR
Product Description: | Intel Server Board S1200SPSR - motherboard - micro ATX - LGA1151 Socket - C232 |
Product Type: | Motherboard - micro ATX |
Chipset Type: | Intel C232 |
Processor Socket: | 1 x LGA1151 Socket |
Compatible Processors: | Xeon E3-1200 v5 series (Maximum TDP 80 Watt) |
Max RAM Size: | 64 GB |
RAM Supported: | 4 DIMM slots - DDR4, ECC, unbuffered |
- Specifications
- Description
General | |
Product Type: | Motherboard - micro ATX |
Chipset Type: | Intel C232 |
Processor Socket: | LGA1151 Socket |
Max Processors Qty: | 1 |
Compatible Processors: | Xeon E3-1200 v5 series (Maximum TDP 80 Watt) |
Supported RAM | |
Max Size: | 64 GB |
Technology: | DDR4 |
Bus Clock: | 2133 MHz |
Supported RAM Integrity Check: | ECC |
Registered or Buffered: | Unbuffered |
Features: | Dual channel memory architecture |
LAN | |
Network Controller: | Intel I210 |
Network Interfaces: | 2 x Gigabit Ethernet |
Expansion / Connectivity | |
Expansion Slots: | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 (x8 mode) ¦ 1 x PCIe 3.0 x8 (x8 mode) ¦ 1 x PCIe 3.0 x8 (x4 mode) |
Storage Interfaces: | SATA-600 -connectors: 6 x 7pin Serial ATA - 6 devices - RAID 0 / RAID 1 / RAID 10 |
RAID Features: | Intel Rapid Storage Technology |
Interfaces: | 2 x USB 3.0 ¦ 5 x USB 2.0 ¦ 2 x LAN (Gigabit Ethernet) ¦ 1 x VGA ¦ 1 x serial |
Internal Interfaces: | 2 x USB 2.0 - header ¦ 1 x USB 2.0 - Type A ¦ 2 x USB 2.0 ¦ 2 x USB 3.0 |
Features | |
BIOS Type: | Intel |
BIOS Features: | DMI 2.0 support, IPMI 2.0 support |
Sleep / Wake Up: | RTC (real-time clock) wake up |
Miscellaneous | |
Included Accessories: | I/O back plate |
Cables Included: | 4 x SATA Express cable |
Software Included: | Drivers & Utilities |
Width: | 24.4 cm |
Depth: | 24.4 cm |
