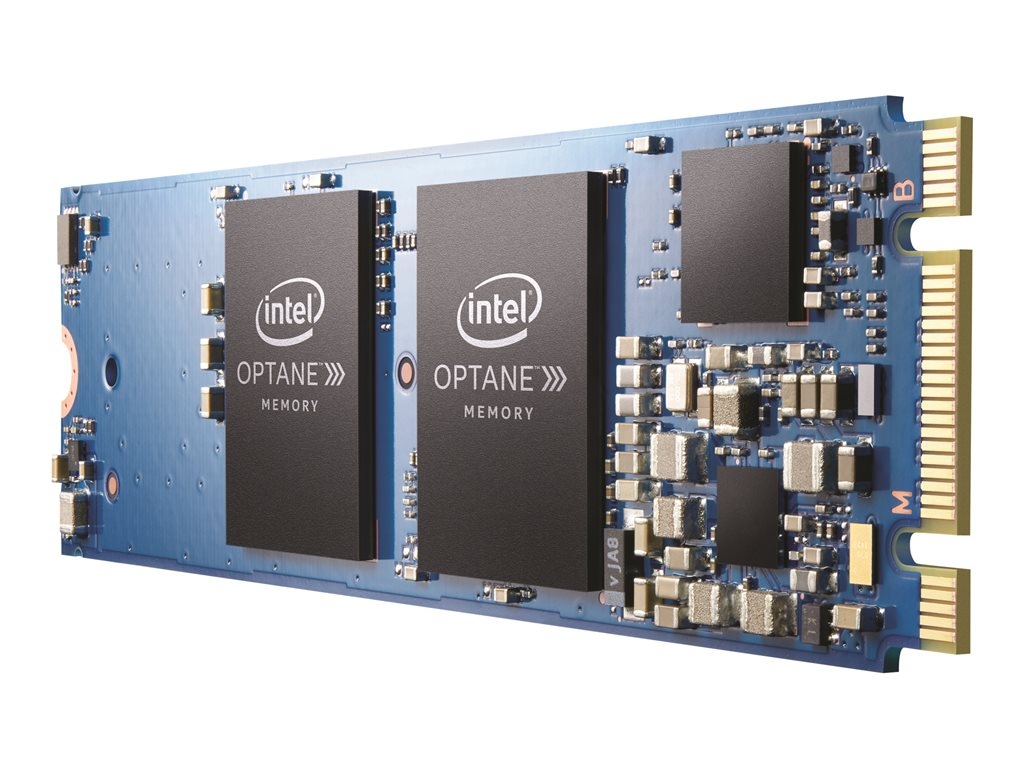

Printers & POSIntel Optane Memory Series - SSD - 16 GB - PCIe 3.0 x2 (NVMe)
SKU MEMPEK1W016GAXT
| Product Description: | Intel Optane Memory Series - SSD - 16 GB - PCIe 3.0 x2 (NVMe) |
| Type: | Solid state drive - internal |
| Capacity: | 16 GB |
| NAND Flash Memory Type: | 20nm |
| Form Factor: | M.2 2280 |
| Interface: | PCIe 3.0 x2 (NVMe) |
| Features: | Intel Rapid Storage Technology, Temperature Monitoring and Logging, End-to-end data protection, Rapid Start Technology, 3D XPoint Technology |
- Specifications
- Description
| General | |
| Device Type: | Solid state drive - internal |
| Capacity: | 16 GB |
| NAND Flash Memory Type: | 20nm |
| Form Factor: | M.2 2280 |
| Interface: | PCIe 3.0 x2 (NVMe) |
| Features: | Intel Rapid Storage Technology, Temperature Monitoring and Logging, End-to-end data protection, Rapid Start Technology, 3D XPoint Technology |
| Height: | 1.5 mm |
| Weight: | 40 g |
| Performance | |
| SSD Endurance: | 182.5 TB |
| Internal Data Rate: | 900 MBps (read) / 145 MBps (write) |
| 4KB Random Read: | 190000 IOPS |
| 4KB Random Write: | 35000 IOPS |
| Average Latency: | 7 μs |
| Reliability | |
| MTBF: | 1,600,000 hours |
| Non-Recoverable Errors: | 1 per 10^15 |
| Expansion & Connectivity | |
| Interfaces: | 1 x PCI Express 3.0 x2 (NVMe) - M.2 Card |
| Compatible Bay: | M.2 2280 |
| Power | |
| Power Consumption: | 1 Watt (idle) ¦ 3.5 Watt (active) |
| Software & System Requirements | |
| OS Required: | Windows 10 64-bit Edition |
| Miscellaneous | |
| Compliant Standards: | RoHS |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 5 years |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 70 °C |
| Shock Tolerance (operating): | 1500 g @ 0.5 ms |
| Shock Tolerance (non-operating): | 1500 g @ 0.5 ms |
| Vibration Tolerance (operating): | 2.17 g @ 5-800 Hz |
| Vibration Tolerance (non-operating): | 3.13 g @ 5-800 Hz |
Intel Optane memory accelerates your system, delivering amazing speed and responsiveness without compromising system storage capacity.
- Intelligent system acceleration
- Amazing responsiveness
The technical details come from 3rd party. edgemo is not responsible for any errors.
