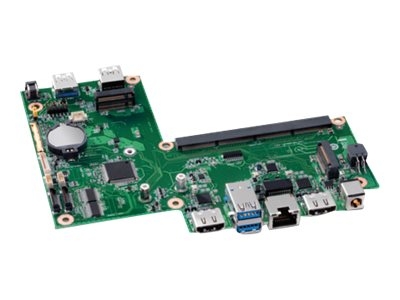

Intel Next Unit of Computing Rugged Board CMB1ABA - motherboard - Element Carrier Board

SKU BKCMB1ABA

Product Description:	Intel Next Unit of Computing Rugged Board CMB1ABA - motherboard - Element Carrier Board
Product Type:	Motherboard - Element Carrier Board
Storage Ports:	1 x SATA-600, 1 x M.2
USB / FireWire Ports:	3 x USB 3.0 + 1 x USB 2.0 + (1 x USB 3.0 + 2 x USB 2.0 via headers)
Graphics:	Intel HD Graphics
Audio:	HD Audio
LAN:	Gigabit Ethernet

15-05-2024

Specifications
Description
Accessories

General
Product Type:	Motherboard - Element Carrier Board

Graphics
Graphics Controller:	Intel HD Graphics

Audio
Type:	HD Audio

LAN
Network Controller:	Intel I219LM
Network Interfaces:	Gigabit Ethernet

Expansion / Connectivity
Expansion Slots:	2 x M.2 socket (Key M)
Interfaces:	2 x HDMI ¦ 1 x LAN (Gigabit Ethernet) ¦ 3 x USB 3.0 ¦ 1 x USB 2.0
Internal Interfaces:	2 x serial - header ¦ 1 x USB 3.0 - header ¦ 1 x Embedded DisplayPort (eDP) ¦ 2 x USB 2.0 - header

Miscellaneous
Compliant Standards:	HDCP 2.2, HDCP 1.4
Width:	17 cm
Depth:	13.64 cm

Manufacturer Warranty
Service & Support:	Limited warranty - 3 years

vis mere

The modular Intel NUC Rugged Board designed for the Intel NUC Rugged Chassis Element or for use in a third-party chassis and/or embedded solutions. The expandable board - with two headers and serial DV9 - is designed for edge analytics.

Fanless, dust-resistant chassis with I/O board installed
Dual M.2 22x80 key M slots for PCIe x4 NVMe and SATA SSDs
Two HDMI 2.0a with built-in CEC for all ports
1x front and 2x rear USB 3.1 Gen 2 Type-A ports, 1x internal USB 3.0 header
1x front port and 2x internal USB 2.0 headers
2x RS232 serial port headers
Up to 7.1 multichannel (or dual 8-channel) digital audio via HDMI
Front panel header
Qualified for 24x7 operation
EDID emulation
Metal chassis, Kensington lock with base security
