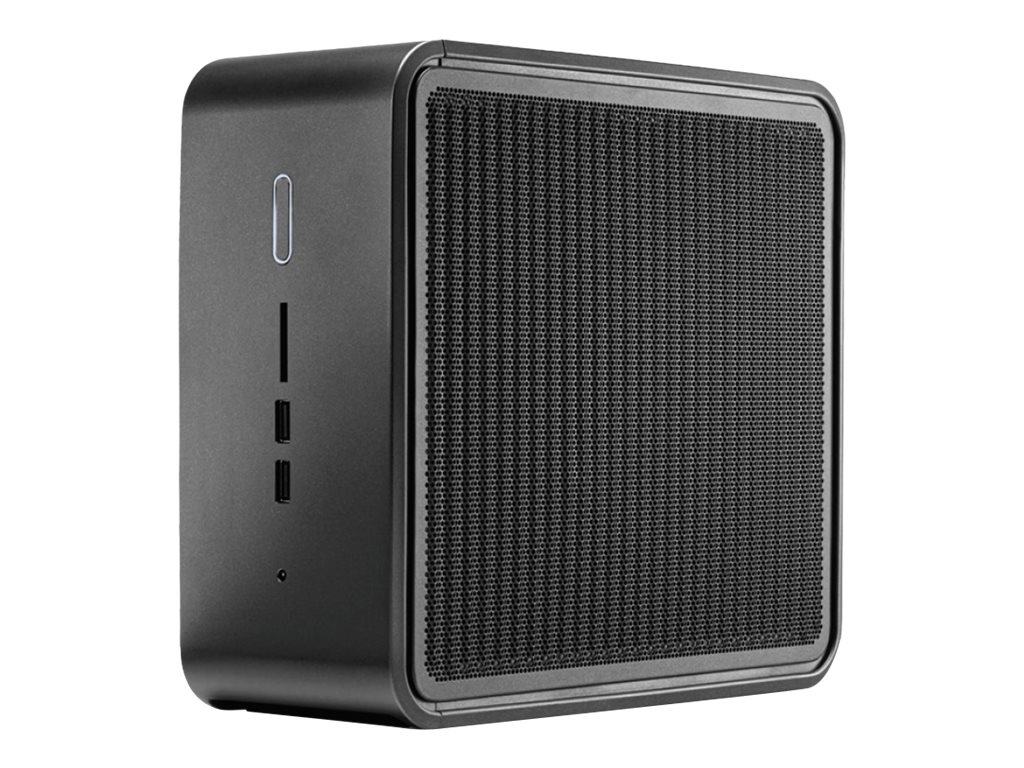

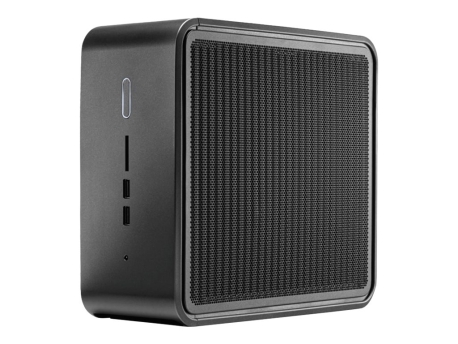

Intel Next Unit of Computing Kit 9 Pro Kit - NUC9V7QNX - compact PC - Core i7 9850H 2.6 GHz - 0 GB - no HDD

SKU BKNUC9V7QNX2

Product Description:	Intel Next Unit of Computing Kit 9 Pro Kit - NUC9V7QNX - compact PC - Core i7 9850H 2.6 GHz - 0 GB - no HDD
Type:	Workstation - compact PC
Localisation:	Region: Europe
Processor:	1 x Intel Core i7 (9th Gen) 9850H / 2.6 GHz (, up to 4.6 GHz, (6-core)
Processor Main Features:	Intel Turbo Boost Technology 2
Cache Memory:	12 MB
Cache Per Processor:	12 MB

15-05-2024

Specifications
Description
Accessories

General
Type:	Workstation
Product Form Factor:	Compact PC
Embedded Security:	Trusted Platform Module (TPM 2.0) Security Chip
Localisation:	Region: Europe

Processor / Chipset
CPU:	Intel Core i7 (9th Gen) 9850H
Clock Speed:	2.6 GHz
Max Turbo Speed:	4.6 GHz
Number of Cores:	6-core
CPU Qty:	1
Max CPU Qty:	1
Processor Main Features:	Intel Turbo Boost Technology 2

Cache Memory
Installed Size:	12 MB
Cache Per Processor:	12 MB

RAM
Installed Size:	0 GB / 64 GB (max)
Technology:	DDR4 SDRAM
Form Factor:	SO-DIMM 260-pin
Slots:	2 (Total) / 2 (empty)
Features:	Dual channel memory architecture

Hard Drive
Type:	No HDD

Storage Controller
Type:	1 x SATA/NVMe
Controller Interface Type:	PCI Express 3.0 x4
RAID Level:	RAID 0, RAID 1

Optical Storage
Type:	No optical drive

Card Reader
Type:	Card reader
Supported Flash Memory Cards:	SDXC UHS-II Memory Card

Monitor
Monitor Type:	None.

Graphics Controller
Graphics Processor:	Intel UHD Graphics 630
Video Interfaces:	HDMI, DisplayPort
Max Monitors Supported:	3

Audio Output
Sound Output Mode:	7.1 channel surround
Compliant Standards:	High Definition Audio

Networking
Ethernet Ports:	2 x Gigabit Ethernet
Ethernet Controller:	Intel I219-LM, I210-AT
Wireless LAN Supported:	Yes
Wireless NIC:	Intel Wi-Fi 6 AX 200
Data Link Protocol:	Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0, 802.11ax
Compliant Standards:	IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0, IEEE 802.11ax

Expansion / Connectivity
Slots:	1 (total) / 1 (free) x M.2 Card - 2242/2280/22110 (PCIe 3.0 x4 mode) ¦ 1 (total) / 1 (free) x M.2 Card - 2242/2280 (PCIe 3.0 x4 mode) ¦ 1 (total) / 1 (free) x M.2 Card - 2242/2280/22110 ¦ 1 (total) / 1 (free) x PCIe 3.0 x16 ¦ 1 (total) / 1 (free) x PCIe 3.0 x4
Interfaces:	6 x USB 3.1 Gen 2 - Type A (2 front, 4 rear) ¦ 1 x HDMI ¦ 2 x LAN (Gigabit Ethernet) - RJ-45 ¦ 2 x Thunderbolt 3/USB-C ¦ 1 x audio line-in/headphones/microphone - mini-jack ¦ 1 x audio line-out - mini-jack / TOSLINK

Miscellaneous
Compliant Standards:	EN55024, UL 60950-1, IEC 60950-1, EN 60950-1, AS/NZS 4268, FCC CFR47 Part 15 C, FCC CFR47 Part 15 B, VCCI V-2, VCCI V-4, KN24, China RoHS, RoHS 2011/65/EU, WEEE 2012/19/EU, KN32, KN35, AS/NZS 2772.2, FCC CFR47 Part 15 E, CAN/CSA-C22.2 No. 60950-1, ICES-005, ETSI EN 500 528, ETSI EN 501 489-1, ETSI EN 501 489-17, ETSI EN 501 895, EN 62511, VCCI V-5, CNS 15458, CISPR 52, EN 55052

Power
Device Type:	Power supply
Power Provided:	90 Watt

Manufacturer Warranty
Service & Support:	Limited warranty - 3 years

Dimensions & Weight
Width:	21.6 cm
Depth:	9.6 cm
Height:	23.8 cm

Environmental Parameters
Min Operating Temperature:	0 °C
Max Operating Temperature:	35 °C

vis mere

Intel NUC Elements are an entirely new way to design and build solutions and Mini PCs. The Intel NUC Compute Element along with a series of Intel-designed components, delivers the flexibility of modular computing.

Superior processing and graphics
Stunningly small form factor
Advanced technology

The technical details come from 3rd party. edgemo is not responsible for any errors.
