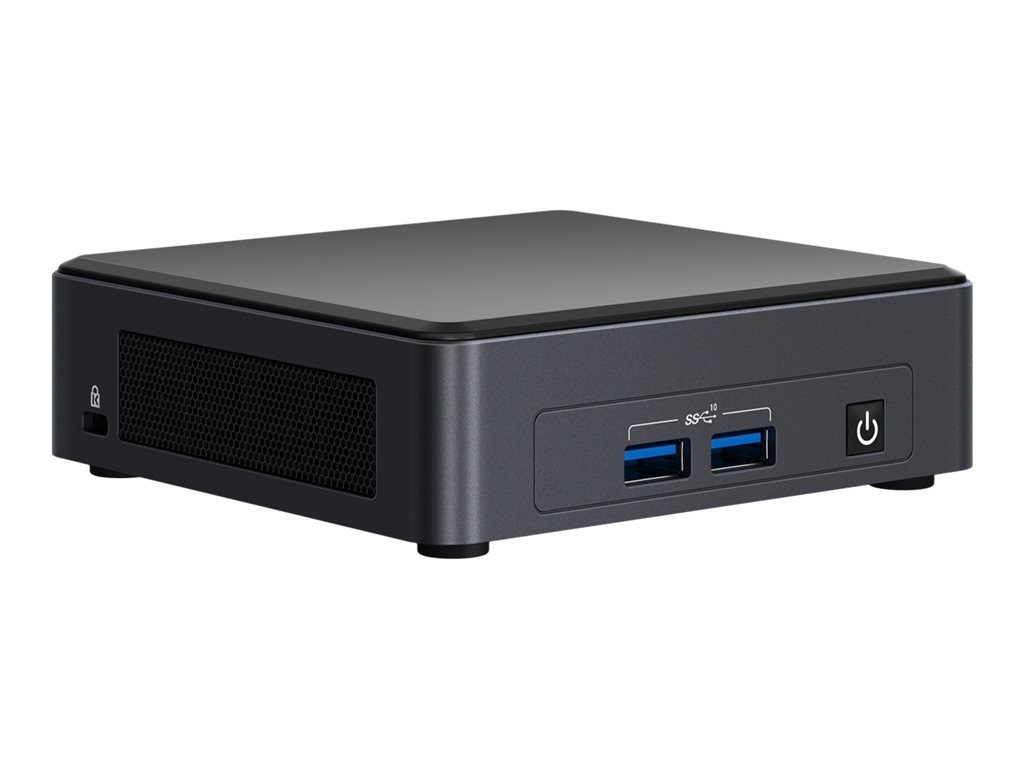

Intel Next Unit of Computing Kit 11 Pro - NUC11TNKi7 - mini PC Core i7 1165G7 2.8 GHz - 0 GB - no HDD

SKU BNUC11TNKI70000

Product Description:	Intel Next Unit of Computing Kit 11 Pro - NUC11TNKi7 - mini PC Core i7 1165G7 2.8 GHz - 0 GB - no HDD
Type:	Personal computer - mini PC
Processor:	Intel Core i7 (11th Gen) 1165G7 / 2.8 GHz (up to 4.7 GHz, (Quad-Core)
Processor Main Features:	Hyper-Threading Technology, Intel Virtualization Technology, Intel Turbo Boost Technology 2, Intel 64 Technology, Intel AES New Instructions, Intel Virtualization Technology for Directed I/O, Intel Virtualization Technology with Extended Page Tables
Cache Memory:	12 MB
Cache Per Processor:	12 MB
RAM:	0 GB (installed) / 64 GB (max) - DDR4 SDRAM

30-12-2024

Specifications
Description
Accessories

General
Type:	Personal computer
Product Form Factor:	Mini PC

Processor / Chipset
CPU:	Intel Core i7 (11th Gen) 1165G7
Clock Speed:	2.8 GHz
Max Turbo Speed:	4.7 GHz
Number of Cores:	Quad-Core
CPU Qty:	1
Max CPU Qty:	1
CPU Upgradability:	Not upgradable
Processor Main Features:	Hyper-Threading Technology, Intel Virtualization Technology, Intel Turbo Boost Technology 2, Intel 64 Technology, Intel AES New Instructions, Intel Virtualization Technology for Directed I/O, Intel Virtualization Technology with Extended Page Tables

Cache Memory
Installed Size:	12 MB
Cache Per Processor:	12 MB

RAM
Installed Size:	0 GB (installed) / 64 GB (max)
Technology:	DDR4 SDRAM
Rated Memory Speed:	3200 MHz
Form Factor:	SO-DIMM 260-pin
Slots:	2 (Total) / 2 (empty)
Features:	Dual channel memory architecture

Hard Drive
Type:	No HDD

Storage Controller
Type:	1 x SATA/NVMe
Controller Interface Type:	SATA 6Gb/s / PCIe 3.0 x4 (NVMe)

Optical Storage
Type:	No optical drive

Monitor
Monitor Type:	None.

Graphics Controller
Graphics Processor:	Intel Iris Xe Graphics
Video Interfaces:	HDMI, USB-C
Max Monitors Supported:	4

Audio Output
Sound Output Mode:	7.1 channel surround
Compliant Standards:	High Definition Audio

Networking
Ethernet Ports:	2.5 Gigabit Ethernet
Ethernet Controller:	Intel I225-LM
Wireless LAN Supported:	Yes
Wireless NIC:	Intel Wi-Fi 6 AX 201
Data Link Protocol:	Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 2.5 Gigabit Ethernet, Bluetooth 5.0, 802.11ax, Bluetooth 5.1
Compliant Standards:	IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.1as, IEEE 802.11n, IEEE 802.11ac, IEEE 802.1BR, IEEE 802.1Qav, IEEE 802.3bz, IEEE 802.11ax, Bluetooth 5.1, IEEE 802.1Qbv, IEEE 802.1Qbu

Expansion / Connectivity
Slots:	1 (total) / 0 (free) x M.2 Card - 2280 (Key M) ¦ 1 (total) / 1 (free) x M.2 Card - 2242 (Key B) ¦ 1 (total) / 0 (free) x M.2 Card - 2230 (Key E)
Interfaces:	2 x Thunderbolt/USB4 ¦ 2 x HDMI ¦ 2 x LAN (Gigabit Ethernet) ¦ 3 x USB 3.2 Gen 2 - Type A (2 front, 1 rear) ¦ 1 x USB 2.0 - Type A (1 rear)

Miscellaneous
Compliant Standards:	BSMI, ICES-003, EN55024, FCC Part 15 B, FCC Part 15 C, RoHS, FCC Part 15 E, BSMI CNS 13438, REACH, EN 300.440, EN 300 328, EN 301 489-1, KN32, KN35, EN 301 893, IEC/EN/UL 60950-1, EN 55032, EN 301 489-3, IEC/EN/UL 62368-1, EN 301 489-17, ARPANSA, AS/NZS CISPR 32, VCCI 32

Power
Device Type:	Power adapter
Voltage Required:	DC 19 V

Manufacturer Warranty
Service & Support:	Limited warranty - 3 years

Dimensions & Weight
Width:	11.7 cm
Depth:	11.2 cm
Height:	3.7 cm

Environmental Parameters
Min Operating Temperature:	0 °C
Max Operating Temperature:	40 °C

vis mere

The Intel NUC kit features a customizable board and chassis that are ready to accept a wide variety of memory, storage, and operating systems. For businesses, students, educators, and DIYers.

Pint-sized power
Energy optimized, media savvy
Flexibility for future growth

The technical details come from 3rd party. edgemo is not responsible for any errors.
