Printers & POSIntel Next Unit of Computing Board NUC7I3DNBE - motherboard - UCFF - Intel Core i3 7100U
SKU BLKNUC7I3DNBE

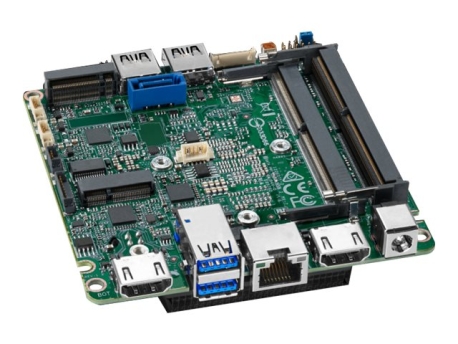

| Product Description: | Intel Next Unit of Computing Board NUC7I3DNBE - motherboard - UCFF - Intel Core i3 7100U |
| Product Type: | Motherboard - UCFF |
| Processor: | Intel Core i3 7100U / 2.4 GHz (Dual-Core) |
| Max RAM Size: | 32 GB |
| RAM Supported: | 2 SO-DIMM slots - DDR4 |
| USB / FireWire Ports: | 4 x USB 3.0 + (1 x USB 3.0 via headers) |
| Graphics: | Intel HD Graphics 620 |
- Specifications
- Description
| General | |
| Product Type: | Motherboard - UCFF |
| Processor: | Intel Core i3 7100U / 2.4 GHz (Dual-Core) |
| Cache Memory: | 3 MB |
| Supported RAM | |
| Max Size: | 32 GB |
| Technology: | DDR4 |
| Bus Clock: | 2133 MHz |
| Graphics | |
| Graphics Controller: | Intel HD Graphics 620 |
| LAN | |
| Network Interfaces: | Gigabit Ethernet |
| Expansion / Connectivity | |
| Expansion Slots: | 2 x SO-DIMM 204-pin ¦ 1 x M.2 socket (Key M) ¦ 1 x M.2 socket (Key E) |
| Storage Interfaces: | SATA-600 -connectors: 2 |
| Interfaces: | 4 x USB 3.0 ¦ 1 x LAN (Gigabit Ethernet) ¦ 2 x HDMI |
| Internal Interfaces: | 1 x Embedded DisplayPort (eDP) ¦ 2 x USB 2.0 - header ¦ 1 x serial - header |
| Features | |
| BIOS Type: | Intel |
| BIOS Features: | ACPI support, SMBIOS 2.5 support, Intel Visual BIOS, Express BIOS Update |
| Miscellaneous | |
| Width: | 10.2 cm |
| Depth: | 10.2 cm |
| Package Type: | Bulk |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 3 years |
The Intel NUC board NUC7i3DNBE enables infinite flexibility and expandability depending on your customers' needs. The board includes a 4-lane eDP connector that allows you to create interactive touch systems perfect for digital signage or intelligent vending. The NUC7i3DNBE board also has an internal power connector with a 12-24 volt input range so your systems stay up and running no matter the fluctuation in power. The board ships without a wireless card so you can choose what's best for the solution you're building.
- 4K display capability
- Slim form factor
- eDP capable
- Intel Optane memory ready
The technical details come from 3rd party. edgemo is not responsible for any errors.
