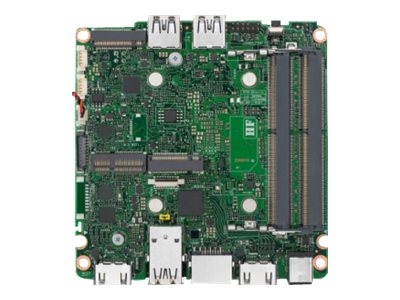

Printers & POSIntel Next Unit of Computing Board 11 Pro Board - NUC11TNBi7 - motherboard - UCFF - Intel Core i7 1165G7
SKU BNUC11TNBI70000
| Product Description: | Intel Next Unit of Computing Board 11 Pro Board - NUC11TNBi7 - motherboard - UCFF - Intel Core i7 1165G7 |
| Product Type: | Motherboard - UCFF |
| Processor: | Intel Core i7 1165G7 / 2.8 GHz (Quad-Core) |
| Max RAM Size: | 64 GB |
| RAM Supported: | 2 SO-DIMM slots - DDR4, non-ECC |
| Storage Ports: | 1 x SATA-600 |
| USB / FireWire Ports: | 2 x USB4 + 3 x USB 3.2 Gen 2 + 1 x USB 2.0 + (2 x USB 3.2 Gen 2 + 2 x USB 2.0 via headers) |
- Specifications
- Description
| General | |
| Product Type: | Motherboard - UCFF |
| Processor: | Intel Core i7 1165G7 / 2.8 GHz (Quad-Core) |
| Cache Memory: | 12 MB |
| Supported RAM | |
| Max Size: | 64 GB |
| Technology: | DDR4 |
| Bus Clock: | 3200 MHz |
| Supported RAM Integrity Check: | Non-ECC |
| Graphics | |
| Graphics Controller: | Intel Iris Xe Graphics |
| LAN | |
| Network Controller: | Intel I225-LM |
| Network Interfaces: | Gigabit Ethernet |
| Expansion / Connectivity | |
| Expansion Slots: | 2 x SO-DIMM 204-pin ¦ 1 x M.2 socket (Key M) ¦ 1 x M.2 socket (Key B) ¦ 1 x M.2 socket (Key E) |
| Storage Interfaces: | SATA-600 -connectors: 1 ¦ PCIe 4.0 -connectors: 1 |
| Interfaces: | 3 x USB 3.2 Gen 2 ¦ 1 x USB 2.0 ¦ 2 x HDMI ¦ 1 x Thunderbolt 4/DisplayPort/USB4 ¦ 1 x Thunderbolt 3/DisplayPort/USB4 ¦ 1 x LAN (Gigabit Ethernet) |
| Internal Interfaces: | 2 x USB 2.0 - header ¦ 1 x USB 3.2 Gen 2 ¦ Serial - header |
| Miscellaneous | |
| Width: | 10.4 cm |
| Depth: | 10.2 cm |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 3 years |
Intel NUC board allows makers and developers to create mini PCs that are fully-customizable.
- Energy optimized, media savvy
- Flexibility for future growth
The technical details come from 3rd party. edgemo is not responsible for any errors.
