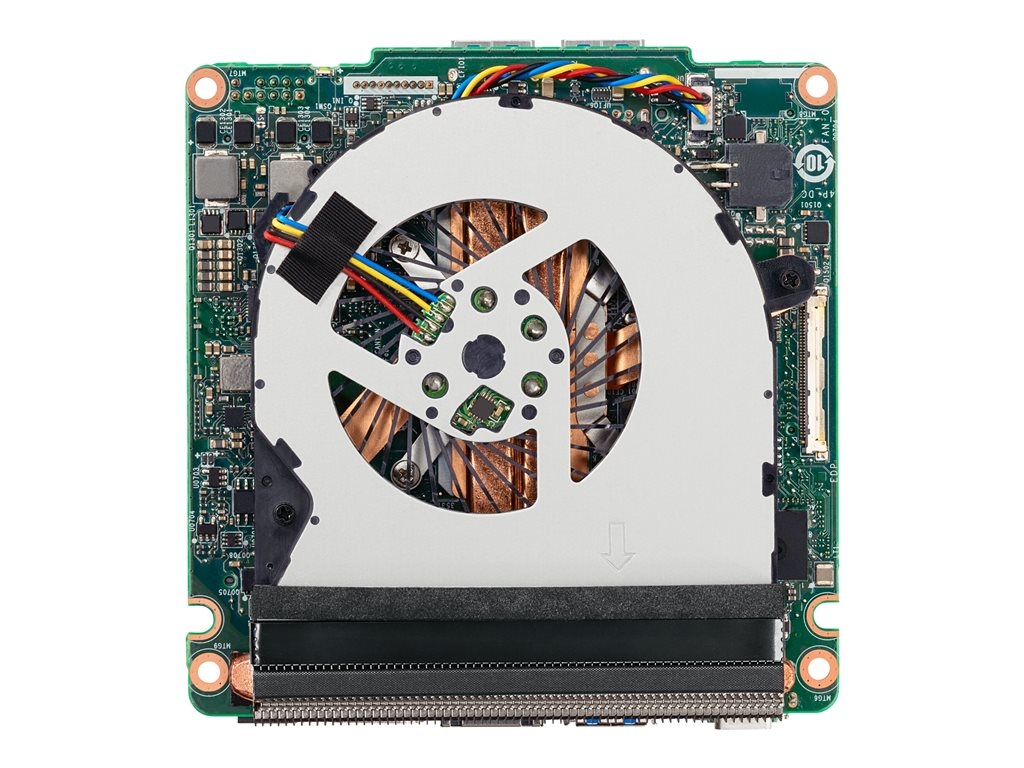

Printers & POSIntel Next Unit of Computing 8 Pro Board NUC8v5PNB - motherboard - UCFF - Intel Core i5 8365U
SKU BKNUC8V5PNB
| Product Description: | Intel Next Unit of Computing 8 Pro Board NUC8v5PNB - motherboard - UCFF - Intel Core i5 8365U |
| Product Type: | Motherboard - UCFF |
| Processor: | Intel Core i5 8365U / 1.6 GHz (Quad-Core) |
| Compatibility: | Intel vPro |
| Max RAM Size: | 64 GB |
| RAM Supported: | 2 SO-DIMM slots - DDR4, non-ECC |
| Storage Ports: | 1 x SATA-600, 1 x M.2 |
- Specifications
- Description
| General | |
| Product Type: | Motherboard - UCFF |
| Processor: | Intel Core i5 8365U / 1.6 GHz (Quad-Core) |
| Cache Memory: | 6 MB |
| Compatibility: | Intel vPro |
| Supported RAM | |
| Max Size: | 64 GB |
| Technology: | DDR4 |
| Bus Clock: | 2400 MHz |
| Supported RAM Integrity Check: | Non-ECC |
| Graphics | |
| Graphics Controller: | Intel UHD Graphics |
| LAN | |
| Network Controller: | Intel I219LM |
| Network Interfaces: | Gigabit Ethernet |
| Expansion / Connectivity | |
| Expansion Slots: | 2 x SO-DIMM 260-pin (1.2 V) ¦ 1 x M.2 socket (2280 M.2 Key M slot) ¦ 1 x M.2 socket (2230 M.2 Key E slot) |
| Storage Interfaces: | SATA-600 - RAID 0 / RAID 1 |
| Interfaces: | 2 x HDMI ¦ 1 x Thunderbolt 3/USB-C ¦ 1 x USB-C ¦ 3 x USB 3.1 ¦ 1 x USB 2.0 ¦ 1 x LAN (Gigabit Ethernet) |
| Internal Interfaces: | 1 x Embedded DisplayPort (eDP) ¦ 2 x USB 2.0 - header ¦ 1 x USB 3.0 - header ¦ 1 x serial - header |
| Features | |
| BIOS Type: | Intel |
| Hardware Features: | Trusted Platform Module (TPM) 2.0, Intel Optane Memory Ready |
| Miscellaneous | |
| Compliant Standards: | DisplayPort 1.2 |
| Width: | 10.2 cm |
| Depth: | 10.2 cm |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 3 years |
Intel NUC 8 Pro kits and boards are built for business with a range of 8th Gen Intel Core processors that deliver powerful performance for embedded loT, surveillance, meeting rooms, and more. Every system features new capabilities, including a Thunderbolt 3 port, plus USB 3.1 Gen 2 ports that transfer data at 10 Gbps - 2X faster than the previous generation. Certified by Intel for 24x7 sustained operation, the Intel NUC 8 Pro is designed to deliver years of nonstop performance.
The technical details come from 3rd party. edgemo is not responsible for any errors.
