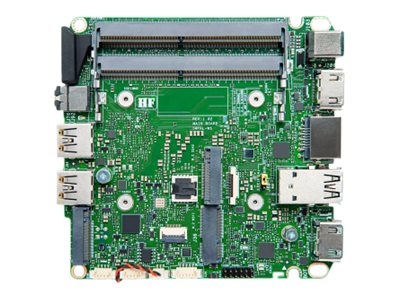

Printers & POSIntel Next Unit of Computing 13 Pro Board - NUC13ANBi5 - motherboard - UCFF - Intel Core i5 1340P
SKU BNUC13ANBI50000
| Product Description: | Intel Next Unit of Computing 13 Pro Board - NUC13ANBi5 - motherboard - UCFF - Intel Core i5 1340P |
| Product Type: | Motherboard - UCFF |
| Processor: | Intel Core i5 1340P (12-core) |
| Processor Socket: | 1 |
| Max RAM Size: | 64 GB |
| RAM Supported: | 2 SO-DIMM slots - DDR4, non-ECC |
| Storage Ports: | 1 x SATA-600, 2 x M.2 |
- Specifications
- Description
| General | |
| Product Type: | Motherboard - UCFF |
| Processor: | Intel Core i5 1340P (12-core) |
| Cache Memory: | Intel Smart Cache - 12 MB |
| Max Processors Qty: | 1 |
| Supported RAM | |
| Max Size: | 64 GB |
| Technology: | DDR4 |
| Bus Clock: | 3200 MHz |
| Supported RAM Integrity Check: | Non-ECC |
| Features: | Dual channel memory architecture |
| Graphics | |
| Graphics Controller: | Intel Iris Xe Graphics 80EU |
| LAN | |
| Network Controller: | Intel I226-V |
| Network Interfaces: | 2.5 Gigabit Ethernet |
| Expansion / Connectivity | |
| Expansion Slots: | 2 x SO-DIMM 260-pin (1.2 V) (DDR4) ¦ 1 x M.2 socket (2280 M.2 Key M slot) ¦ 1 x M.2 socket (2242 M.2 Key B slot) ¦ 1 x M.2 socket (2230 M.2 Key E slot) |
| Storage Interfaces: | SATA-600 -connectors: 1 |
| Interfaces: | 2 x Thunderbolt 4/DisplayPort/USB4 ¦ 3 x USB 3.2 Gen 2 ¦ 1 x USB 2.0 ¦ 2 x HDMI ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x headphones/microphone - mini-jack |
| Internal Interfaces: | 2 x USB 2.0 - header ¦ 1 x USB 3.2 Gen 2 ¦ Serial - header |
| Power Connectors: | DC-in power connector |
| Miscellaneous | |
| Compliant Standards: | ICES-003, EN55024, FCC Part 15 B, FCC Part 15 C, IEC 60950-1, EN 60950-1, AS/NZS 4268, FCC Part 15 E, BSMI CNS 13438, CISPR, REACH, E-Standby, CEC, ERP, CEL, EN 62311, EN 300.440, China RoHS, EN 300 328, GEMS, EN 301 489-1, KN32, KN35, EN 62368-1, IEC 62368-1, AS/NZS 2772.2, EN 301 893, EN 55032, EN 301 489-3, EU RoHS, UL 62368-1, EN 301 489-17, ARPANSA, Taiwan BSMI RoHS, AS/NZS CISPR 32, VCCI 32 |
| Width: | 10.4 cm |
| Depth: | 10.2 cm |
| Environmental Standards | |
| ENERGY STAR Certified: | Yes |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 3 years |
| Compatibility Information | |
| Designed For: | Intel Next Unit of Computing 13 Pro Kit - NUC13ANHi5, 13 Pro Kit - NUC13ANKi5 |
Intel NUC 13 Pro Boards give the performance you need for desktop applications, embedded devices, and more.
The technical details come from 3rd party. edgemo is not responsible for any errors.
