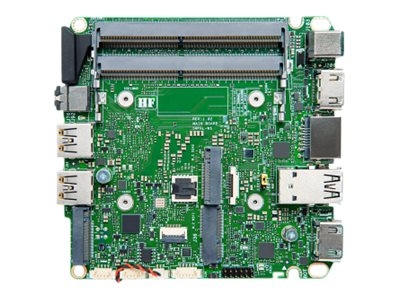

Printers & POSIntel Next Unit of Computing 13 Pro Board - NUC13ANBi3 - motherboard - UCFF - Intel Core i3 i3-1315U
SKU BNUC13ANBI30000
| Product Description: | Intel Next Unit of Computing 13 Pro Board - NUC13ANBi3 - motherboard - UCFF - Intel Core i3 i3-1315U |
| Product Type: | Motherboard - UCFF |
| Processor: | Intel Core i3 i3-1315U (6-core) |
| Processor Socket: | 1 |
| Max RAM Size: | 64 GB |
| RAM Supported: | 2 SO-DIMM slots - DDR4, non-ECC |
| Storage Ports: | 1 x SATA-600, 2 x M.2 |
- Specifications
- Description
| General | |
| Product Type: | Motherboard - UCFF |
| Processor: | Intel Core i3 i3-1315U (6-core) |
| Cache Memory: | Intel Smart Cache - 10 MB |
| Max Processors Qty: | 1 |
| Supported RAM | |
| Max Size: | 64 GB |
| Technology: | DDR4 |
| Bus Clock: | 3200 MHz |
| Supported RAM Integrity Check: | Non-ECC |
| Features: | Dual channel memory architecture |
| Graphics | |
| Graphics Controller: | Intel UHD Graphics |
| LAN | |
| Network Controller: | Intel I226-V |
| Network Interfaces: | 2.5 Gigabit Ethernet |
| Expansion / Connectivity | |
| Expansion Slots: | 2 x SO-DIMM 260-pin (1.2 V) (DDR4) ¦ 1 x M.2 socket (2280 M.2 Key M slot) ¦ 1 x M.2 socket (2242 M.2 Key B slot) ¦ 1 x M.2 socket (2230 M.2 Key E slot) |
| Storage Interfaces: | SATA-600 -connectors: 1 |
| Interfaces: | 2 x Thunderbolt 4/DisplayPort/USB4 ¦ 3 x USB 3.2 Gen 2 ¦ 1 x USB 2.0 ¦ 2 x HDMI ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x headphones/microphone - mini-jack |
| Internal Interfaces: | 2 x USB 2.0 - header ¦ 1 x USB 3.2 Gen 2 ¦ Serial - header |
| Power Connectors: | DC-in power connector |
| Miscellaneous | |
| Compliant Standards: | ICES-003, EN55024, FCC Part 15 B, FCC Part 15 C, IEC 60950-1, EN 60950-1, AS/NZS 4268, FCC Part 15 E, BSMI CNS 13438, CISPR, REACH, E-Standby, CEC, ERP, CEL, EN 62311, EN 300.440, China RoHS, EN 300 328, GEMS, EN 301 489-1, KN32, KN35, EN 62368-1, IEC 62368-1, AS/NZS 2772.2, EN 301 893, EN 55032, EN 301 489-3, EU RoHS, UL 62368-1, EN 301 489-17, ARPANSA, Taiwan BSMI RoHS, AS/NZS CISPR 32, VCCI 32 |
| Width: | 10.4 cm |
| Depth: | 10.2 cm |
| Environmental Standards | |
| ENERGY STAR Certified: | Yes |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 3 years |
| Compatibility Information | |
| Designed For: | Intel Next Unit of Computing 13 Pro Kit - NUC13ANHi3, 13 Pro Kit - NUC13ANKi3 |
Four-by-four inch Intel NUC boards come with a soldered-on processor. Boards can be purchased independently of the kit, providing a mini PC that's fully customizable, scalable, and configurable for a wide variety of solutions.
The technical details come from 3rd party. edgemo is not responsible for any errors.
