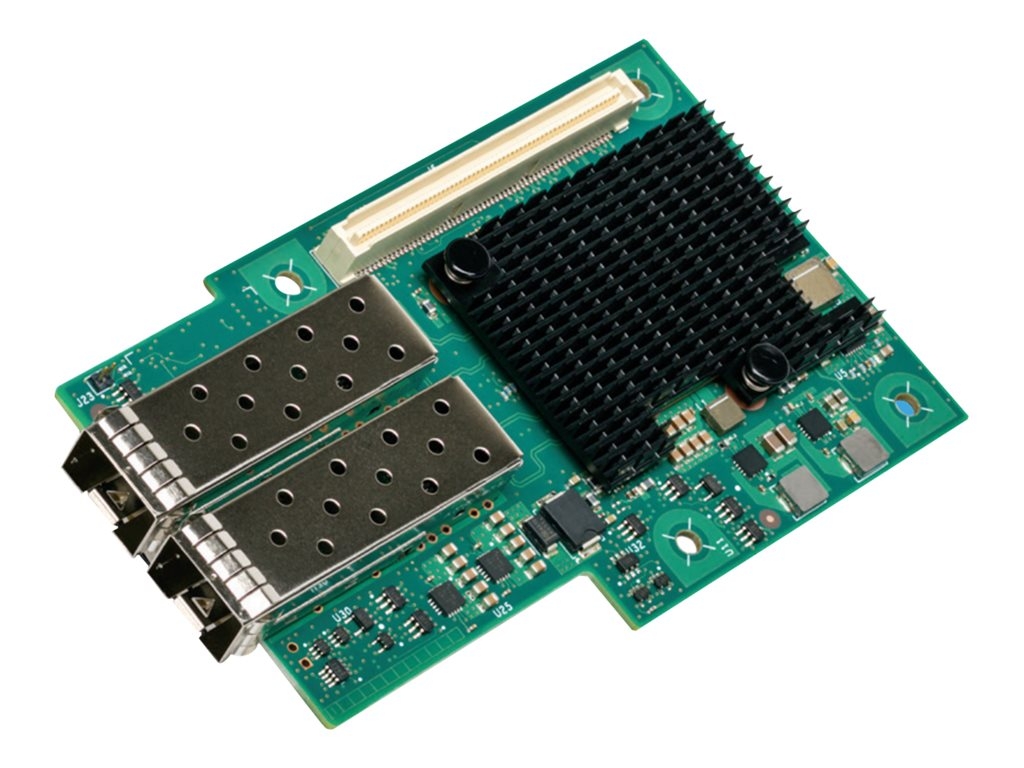

Printers & POSIntel Ethernet Network Adapter XXV710-DA2 - network adapter - OCP 2.0 - 25 Gigabit SFP28 x 2
SKU XXV710DA2OCP2
| Product Description: | Intel Ethernet Network Adapter XXV710-DA2 - network adapter - OCP 2.0 - 25 Gigabit SFP28 x 2 |
| Device Type: | Network adapter |
| Form Factor: | Plug-in card |
| Interface (Bus) Type: | Open Compute Project mezzanine (OCP) 2.0 |
| PCI Specification Revision: | PCIe 3.0 |
| Ports: | 25 Gigabit SFP28 x 2 |
| Data Link Protocol: | 25GbE, 10GbE, 1GbE |
- Specifications
- Description
| General | |
| Device Type: | Network adapter |
| Form Factor: | Plug-in card |
| Interface (Bus) Type: | Open Compute Project mezzanine (OCP) 2.0 |
| PCI Specification Revision: | PCIe 3.0 |
| Networking | |
| Ports: | 25 Gigabit SFP28 x 2 |
| Connectivity Technology: | Wired |
| Data Link Protocol: | 25 Gigabit Ethernet, 10 Gigabit Ethernet, Gigabit Ethernet |
| Data Transfer Rate: | 25 Gbps |
| Network / Transport Protocol: | TCP/IP, UDP/IP, iSCSI, NFS, SMB |
| Remote Management Protocol: | RMON, SNMP |
| Status Indicators: | Link/activity, port transmission speed |
| Features: | iSCSI boot, PXE support, flow control, ALB, VLAN support, VMDq, Energy Efficient Ethernet, SR-IOV, LSO, teaming support, WDT, packet filtering, MSI-X, QoS, UDP/IP offloading, TCP/IP offloading, RSS, IPv6 support, TSO, GSO, checksum offload support, IPv4 support, NVGRE, VXLAN, MPLS support, Intel Flow Director, DPDK |
| Compliant Standards: | IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.3, IEEE 802.1Q, IEEE 802.1as, IEEE 802.1Qbg, IEEE 802.3by |
| Expansion / Connectivity | |
| Interfaces: | 2 x 1 Gigabit Ethernet/10Gb Ethernet/25Gb Ethernet - SFP28 |
| Miscellaneous | |
| Compliant Standards: | FCC Class A certified, UL, VCCI, BSMI, C-Tick, KCC, RoHS, Directive 2011/65/EU |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - money back guarantee - lifetime |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 55 °C |
| Humidity Range Operating: | 90% (non-condensing) |
The Intel Ethernet Network Adapter XXV710 for Open Compute Project (OCP) is a new addition to Intel's 700 series network adapters.
As a founding member of OCP, Intel strives to make increasing OCP specifications based solutions available on the market. The Intel Ethernet Network Adapter XXV710 for OCP addresses the demanding needs of the next-generation agile data center by providing unmatched features for both server and network virtualization, flexibility for LAN and SAN networks, and proven, reliable performance in an OCP form factor.
As a founding member of OCP, Intel strives to make increasing OCP specifications based solutions available on the market. The Intel Ethernet Network Adapter XXV710 for OCP addresses the demanding needs of the next-generation agile data center by providing unmatched features for both server and network virtualization, flexibility for LAN and SAN networks, and proven, reliable performance in an OCP form factor.
- Two 25 Gigabit SFP28 ports for high-speed network connections
- Supports data transfer rates up to 25 Gbps for efficient network traffic handling
- Compatible with 1GbE, 10GbE, and 25GbE networks for versatile use
- Includes Virtual Machine Device Queues (VMDq) for better performance in virtualized environments
- Supports NFS and iSCSI network transport protocols for enhanced networking capabilities
The technical details come from 3rd party. edgemo is not responsible for any errors.
