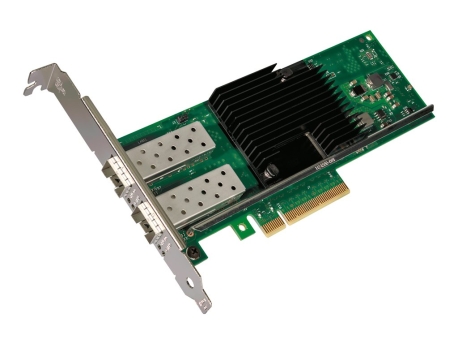

Printers & POSIntel Ethernet Converged Network Adapter X710-DA2 - network adapter - PCIe 3.0 x8 - 10 Gigabit SFP+ x 2
SKU X710DA2BLK
| Product Description: | Intel Ethernet Converged Network Adapter X710-DA2 - network adapter - PCIe 3.0 x8 - 10 Gigabit SFP+ x 2 |
| Device Type: | Network adapter |
| Form Factor: | Plug-in card - low profile |
| Interface (Bus) Type: | PCI Express 3.0 x8 |
| Ports: | 10 Gigabit SFP+ x 2 |
| Dimensions (WxDxH): | 16.7 cm x 6.9 cm |
| Data Link Protocol: | 1GbE, 10GbE |
- Specifications
- Description
| General | |
| Device Type: | Network adapter |
| Form Factor: | Plug-in card - low profile |
| Interface (Bus) Type: | PCI Express 3.0 x8 |
| Networking | |
| Ports: | 10 Gigabit SFP+ x 2 |
| Connectivity Technology: | Wired |
| Data Link Protocol: | Gigabit Ethernet, 10 Gigabit Ethernet |
| Data Transfer Rate: | 10 Gbps |
| Network / Transport Protocol: | TCP/IP, UDP/IP, iSCSI, SMB, NFS |
| Remote Management Protocol: | SNMP, RMON |
| Status Indicators: | Port transmission speed, link/activity |
| Features: | Flow control, VLAN support, packet filtering, IPv6 support, TCP/IP offloading, QoS, VMDq, IPv4 support, teaming support, PXE support, LSO, GSO, RSS, SR-IOV, DCB, ALB, Energy Efficient Ethernet, TSO, checksum offload support, UDP/IP offloading, WDT, iSCSI boot |
| Compliant Standards: | IEEE 802.3, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1as, IEEE 802.1Qbg |
| Expansion / Connectivity | |
| Interfaces: | 2 x 1Gb Ethernet/10Gb Ethernet - SFP+ |
| Miscellaneous | |
| Compliant Standards: | FCC Class B certified, UL, VCCI, C-Tick, BSMI, RoHS, KCC, Directive 2011/65/EU, MSA SFF-8431 |
| Package Type: | Bulk |
| Software / System Requirements | |
| OS Required: | Red Hat Linux 7.0, Microsoft Windows Server 2008 x64 Edition, Microsoft Windows Server 2008 R2 x64 Edition, Linux Kernel 2.6.32, FreeBSD 9, VMware ESXi 5.1, Microsoft Windows Server 2012 x64 Edition, Microsoft Windows Server 2012 R2 x64 Edition, SuSE Linux Enterprise Server 11 SP3, Red Hat Enterprise Linux 6.5, VMware ESXi 5.5, FreeBSD 10, SuSE Linux Enterprise Server 12 |
| Dimensions & Weight | |
| Depth: | 16.7 cm |
| Height: | 6.9 cm |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - lifetime |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 55 °C |
The X710 adapter offers two ports of 10GbE and is backwards compatible to 1GbE. Intel Ethernet 700 Series Network Adapters are the foundation for server connectivity, providing broad interoperability, critical performance optimizations, and increased agility for Telecommunications, Cloud, and Enterprise IT network solutions.
- Data protocols: 10 Gigabit Ethernet, iSCSI, NFS, SMB
- Data transfer rate: 10Gbps, 1Gbps
