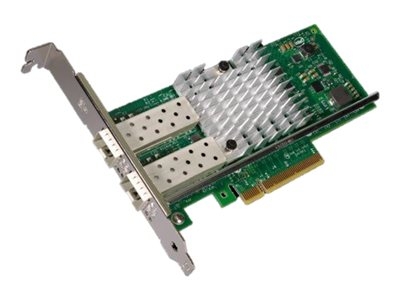

Intel Ethernet Converged Network Adapter X520-DA2 - network adapter - PCIe 2.0 x8 - 10Gb Ethernet / FCoE SFP+ x 2

SKU E10G42BTDA
Product Description:Intel Ethernet Converged Network Adapter X520-DA2 - network adapter - PCIe 2.0 x8 - 10Gb Ethernet / FCoE SFP+ x 2
Device Type:Network adapter
Form Factor:Plug-in card - low profile
Interface (Bus) Type:PCI Express 2.0 x8
Ports:10Gb Ethernet / FCoE SFP+ x 2
Dimensions (WxDxH):14.5 cm
Data Link Protocol:10GbE, FCoE
02-04-2024
  • Specifications
  • Description
General
Device Type:Network adapter
Form Factor:Plug-in card - low profile
Interface (Bus) Type:PCI Express 2.0 x8
Networking
Ports:10Gb Ethernet / FCoE SFP+ x 2
Connectivity Technology:Wired
Data Link Protocol:10 Gigabit Ethernet, Fibre Channel over Ethernet (FCoE)
Data Transfer Rate:10 Gbps
Network / Transport Protocol:TCP/IP, UDP/IP, IPSec, iSCSI
Remote Management Protocol:SNMP, RMON
Status Indicators:Port transmission speed, link/activity
Features:Flow control, VLAN support, packet filtering, QoS, VMDq, SR-IOV
Compliant Standards:IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1ae, IEEE 802.1as
Processor / Memory
Processor:Intel 82599ES
Expansion / Connectivity
Interfaces:2 x 10Gb Ethernet / FCoE - SFP+
Compatible Slots:1 x PCI Express 2.0 x8 - full-length, low-profile
Miscellaneous
Compliant Standards:FCC Class B certified, UL, VCCI, C-Tick, BSMI, RoHS
Software / System Requirements
OS Required:Microsoft Windows 7, Linux 2.6.x, SuSE Linux Enterprise Server 11, Microsoft Windows Server 2008 SP2, Microsoft Windows Vista SP2, SuSE Linux Enterprise Server 10, Microsoft Windows Server 2003 R2, Red Hat Enterprise Linux 5, Microsoft Windows Server 2003 SP2, Red Hat Enterprise Linux 6, VMware ESXi, Windows 8, Microsoft Windows Server 2012, VMware ESX, Linux 3.x, FreeBSD 9, Microsoft Windows Server 2012 R2
Dimensions & Weight
Depth:14.5 cm
Manufacturer Warranty
Service & Support:Limited warranty - lifetime ¦ Limited warranty - money back guarantee - 90 days
Environmental Parameters
Min Operating Temperature:0 °C
Max Operating Temperature:55 °C
vis mere
The Intel Ethernet 10 Gigabit Converged Network Adapter X520-DA2 enables data center transformation by delivering a reliable, unified 10GbE network connection. Advanced platform scalability features include: Receive Side Coalescing, Intel Ethernet Flow Director, and support for PCI Express Gen2. Intel VT-c delivers industry-leading I/O virtualization capabilities, including support for Single Route I/O virtualization (SR-IOV) and Virtual Machine Device Queues (VMDq). The Intel Ethernet Converged Network Adapter X520 provides advanced unified networking capabilities, including support for iSCSI, NFS, and FCoE.
  • SFP+ connectivity
  • Low-profile
  • Load balancing on multiple CPUs
  • ISCSI remote boot support
  • Fiber Channel over Ethernet (FCoE) support
  • Intel Direct Cache Access (DCA)
  • MSI-X support
  • Low latency interrupts
  • Header splits and replication in receive
  • IPsec offload
  • Virtual Machine Load Balancing (VLMB)
  • Watchdog timer




The technical details come from 3rd party. edgemo is not responsible for any errors.
