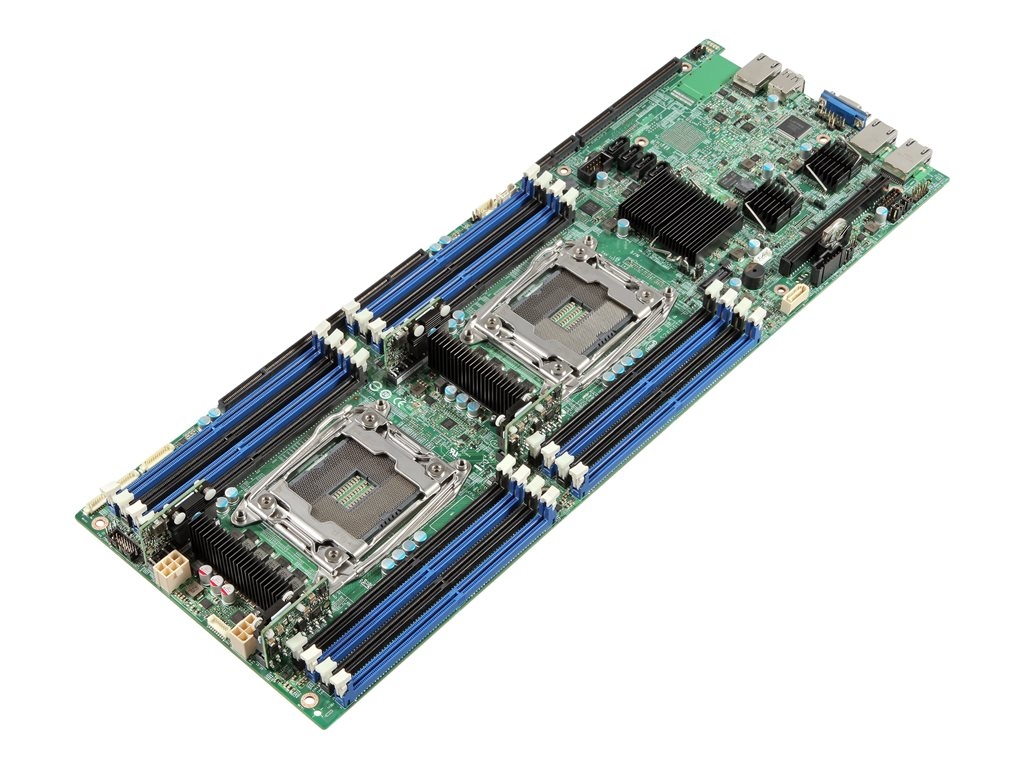

Intel Compute Module HNS2600TPF - blade - no CPU - 0 GB - no HDD
SKU HNS2600TPF
Product Description: | Intel Compute Module HNS2600TPF - blade - no CPU - 0 GB - no HDD |
Type: | Server - blade |
Server Scalability: | 2-way |
Processor: | No CPU |
Processor Socket: | LGA2011-v3 Socket |
RAM: | 0 GB (installed) / 2 TB (max) - DDR4 SDRAM |
Storage Controller: | SATA (SATA 6Gb/s) |
- Specifications
- Description
General | |
Type: | Server |
Product Form Factor: | Blade |
Server Scalability: | 2-way |
Processor / Chipset | |
CPU: | No CPU |
Max CPU Qty: | 2 |
CPU Upgradability: | Upgradable |
CPU Socket: | LGA2011-v3 Socket |
Chipset Type: | Intel C612 |
RAM | |
Installed Size: | 0 GB / 2 TB (max) |
Technology: | DDR4 SDRAM |
Form Factor: | DIMM 288-pin |
Slots: | 16 (Total) / 16 (empty) |
Hard Drive | |
Type: | No HDD |
Storage Controller | |
Type: | 1 x SATA - integrated |
Controller Interface Type: | SATA 6Gb/s |
Channel Qty: | 10 |
Optical Storage | |
Type: | No optical drive |
Monitor | |
Monitor Type: | None. |
Graphics Controller | |
Type: | Integrated |
Video Memory: | 16 MB DDR3 SDRAM |
Video Interfaces: | VGA |
Networking | |
Ethernet Ports: | 2 x Gigabit Ethernet |
Ethernet Controller: | Intel I350 |
Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet, InfiniBand |
Remote Management Protocol: | IPMI 2.0 |
Remote Management Controller: | Emulex Pilot 3 iBMC |
Expansion / Connectivity | |
Slots: | 2 (total) / 2 (free) x CPU ¦ 16 (total) / 16 (free) x DIMM 288-pin ¦ 2 (total) / 2 (free) x PCIe 3.0 x16 (riser card only) ¦ 2 (total) / 2 (free) x PCIe 3.0 x24 (riser card only) |
Interfaces: | 1 x VGA ¦ 2 x LAN (Gigabit Ethernet) - RJ-45 ¦ 3 x USB 2.0 (2 rear, 1 internal) ¦ 1 x management - RJ-45 ¦ 1 x InfiniBand - QSFP+ |
Miscellaneous | |
Included Accessories: | 2 x CPU Heatsink, PCI-Express (1x16) Riser Card, air duct, bridge board, node power board, 1U node tray |
Environmental Parameters | |
Min Operating Temperature: | 10 °C |
Max Operating Temperature: | 35 °C |
The Intel HNS2600TPF is a versatile blade server designed for performance and scalability in demanding environments. With a compact form factor, it efficiently utilizes space while offering significant expansion capabilities. Featuring up to 16 available expansion slots, this server supports various interfaces including InfiniBand, Gigabit Ethernet, and USB, ensuring connectivity and flexibility for multiple applications. It does not come with a pre-installed hard drive or CPU, but the design allows for easy upgrades, accommodating up to two processors and substantial RAM capacity to meet evolving needs. Built to operate within a temperature range of 10°C to 35°C, this server is suitable for various operational settings. Its integrated management features simplify remote monitoring and management through protocols like IPMI 2.0, enhancing reliability and control. With the Intel C612 chipset and efficient networking capabilities, the Intel HNS2600TPF is a choice for organizations looking to scale their server infrastructure effectively and efficiently.
- Compact blade form factor for space efficiency
- Supports up to 16 expansion slots for extensive connectivity
- Compatible with InfiniBand and Gigabit Ethernet for flexible networking
- Designed for easy upgradeable CPU and RAM options
- Integrated management capabilities for reliable monitoring
